Linear Guide Rail
>
|
| Place of Origin | China |
| Brand Name | ZANE |
| Certification | CE，ISO |
| Model Number | GMW |

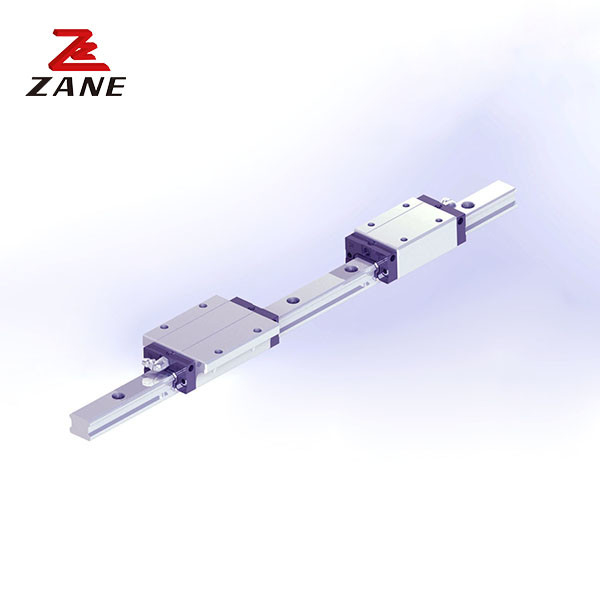

ISO Linear Guide Rail Carriage Blocks For Laser Special GMW Series
1.Description
Linear guides provide a precise guiding function for positioning loads in combination with linear motion driving elements, such as actuators or ball screws. As linear guide rail manufacturers, our linear range includes precision rail guides, various profile rail guides, linear guide rail systems, heavy duty linear guide rails, linear plain bearings and linear ball bearings, as well as units with precision shafts. From a few micron of stroke up to several meters of movement, almost any precise motion application in industrial or office environments is possible. T
2.Parameter list
| ComModelbination size (mm) | Block size(mm) | Slide rail size(mm) |
Fixing bolts for slide rails size |
Basic dynamic fixed load | Basic fixed fixed load | Allowable static moment | weight | ||||||||||||||||||||||||||
| Mr kN-m |
Mp kN-m |
My kN-m |
block kg |
slide Kg/m |
|||||||||||||||||||||||||||||
| H | Hi | N | W | B | Bi | C | Li | L | Ki | Ki | G | Mxl | T | H2 | h3 | w/ | Hr | D | h | d | P | E | (mm ) | C(kN) | Co(kN) | ||||||||
| GEH15SA | 24 | 4.5 | 9.5 | 34 | 26 | 4 | - | 23.1 | 40.1 | 14.8 | 3.5 | 5.7 | M4x6 | 6 | 5.5 | 6 | 15 | 12.5 | 6 | 4.5 | 3.5 | 60 | 20 | M3xl6 | 5.35 | 9.40 | 0.08 | 0.04 | 0.04 | 0.09 | 1.25 | ||
| GEH15CA | 26 | 39.8 | 56.8 | 10.15 | 7.83 | 16.19 | 0.13 | 0.10 | 0.10 | 0.15 | |||||||||||||||||||||||
| GEH20SA | 28 | 6 | 11 | 42 | 32 | 5 | - | 29 | 50 | 18.75 | 4.15 | 12 | M5x7 | 7.5 | 6 | 6 | 20 | 15.5 | 9.5 | 8.5 | 6 | 60 | 20 | M5xl6 | 7.23 | 12.74 | 0.13 | 0.06 | 0.06 | 0.15 | 2.08 | ||
| GEH20CA | 32 | 48.1 | 69.1 | 12.3 | 10.31 | 21.13 | 0.22 | 0.16 | 0.16 | 0.24 | |||||||||||||||||||||||
| GEH25SA | 33 | 7 | 12.5 | 48 | 35 | 6.5 | - | 35.5 | 59.1 | 21.9 | 4.55 | 12 | M6x9 | 8 | 8 | 8 | 23 | 18 | 11 | 9 | 7 | 60 | 20 | M6x20 | 11.40 | 19.50 | 0.23 | 0.12 | 0.12 | 0.25 | 2.67 | ||
| GEH25CA | 35 | 59 | 82.6 | 16.15 | 16.27 | 32.40 | 0.38 | 0.32 | 0.32 | 0.41 | |||||||||||||||||||||||
| GEH30SA | 42 | 10 | 16 | 60 | 40 | 10 | - | 41.5 | 69.5 | 26.75 | 6 | 12 | M3xl2 | 9 | 8 | 9 | 28 | 23 | 11 | 9 | 7 | 80 | 20 | M6x25 | 16.42 | 28.10 | 0.40 | 0.21 | 0.21 | 0.45 | 4.35 | ||
| GEH30CA | 40 | 70.1 | 98.1 | 21.05 | 23.70 | 47.46 | 0.68 | 0.55 | 0.55 | 0.76 | |||||||||||||||||||||||
| GEH35SA | 48 | 11 | 18 | 70 | 50 | 10 | - | 45 | 75 | 28.5 | 7 | 12 | M8xl2 | 10 | 8.5 | 8.5 | 34 | 27.5 | 14 | 12 | 9 | 80 | 20 | M8x25 | 16.42 | 28.10 | 0.40 | 0.21 | 0.21 | 0.45 | 6.14 | ||
| GEH35CA | 50 | 78 | 108 | 20 | 33.35 | 64.84 | 0.98 | 0.69 | 0.69 | 1.13 | |||||||||||||||||||||||
