Model	Outer diameter	lead	Steel ball diameter	nut size								Bead laps	Dynamic rated load	Static rated load	rigid kgf/µm
Model	d	I	Da	D	A	B	L	W	H	X	Q	n	Ca	Coa	k
01605-B1	16	5	2. 778	28	48	10	73	38	40	5.5	M6	3.8x1	1112	2507	41
01610-B1	16	10	2. 778	28	48	10	97	38	40	5.5	M6	2. 8x1	839	1821	31
02005-C1	20	5	3.175	36	58	10	75	47	44	6.6	M6	3. 8x1	1484	3681	50
02006-D1		6	3.175	36	58	10	98	47	44	6.6	M6	4. 8x1	1811	4644	63
02008-D1		8	3.175	36	58	10	116	47	44	6.6	M6	4. 8x1	1863	4861	66
02010-C1		10	3.175	36	58	10	120	47	44	6.6	M6	3. 8x1	1516	3833	53
02505-C1	25	5	3. 175	40	62	10	75	51	48	6.6	M6	3. 8x1	1650	6458	59
02506-D1		6	3. 175	40	62	10	98	51	48	6.6	M6	4. 8x1	2015	5879	75
02508-D1		8	3. 175	40	62	10	116	51	48	6.6	M6	4. 8x1	2009	5867	76
02510-C1		10	3. 175	40	62	12	122	51	48	6.6	M6	3. 8x1	1638	4633	61
03205-C1	32	5	3.175	50	80	12	82	65	62	9	M6	3. 8x1	1839	6026	71
03206-D1		6	3.175	50	80	12	99	65	62	9	M6	4. 8x1	2247	7608	90
03208-D1		8	3. 969	50	80	12	126	65	62	9	M6	4. 8x1	3015	9181	92
03210-C1	31	10	3. 969	50	80	13	122	65	62	9	M6	3. 8x1	2460	7255	75
03220-B1	31	20	3. 969	50	80	12	160	65	62	9	M6	2. 8x1	1907	5482	58
04005-C1	40	5	3.175	63	93	15	85	78	70	9	M8	3. 8x1	2018	7589	83
04006-D1		6	3.175	63	93	14	98	78	70	9	M6	4. 8x1	2467	9583	106
04008-D1		8	3. 969	63	93	14	125	78	70	9	M6	4. 8x1	3327	11491	no
04010-C1	38	10	6. 350	63	93	14	123	78	70	9	M8	3. 8x1	5035	13943	91
04020-B1	38	20	6. 350	63	93	14	162	78	70	9	M8	2. 8x1	3959	10715	73
05005-C1	50	5	3.175	75	110	15	85	93	85	11	M8	3. 8x1	2207	9542	96
05010-C1	50	10	6. 350	75	110	18	138	93	85	11	M8	3. 8x1	5638	17852	109
05012-C1	48	12	6. 350	75	110	18	147	93	85	11	M8	3. 8x1	5632	17836	no
05020-C1	48	20	6. 350	75	110	18	218	93	85	11	M8	3. 8x1	5749	18485	116
06310-C1	61	10	6. 350	90	125	18	140	108	95	11	M8	3. 8x1	6343	23308	130
06316-C1		16	6. 350	90	125	18	191	108	95	13.5	M8	3. 8x1	632	23262	136
06320-C1		20	7.144	95	135	20	226	115	100	13.5	M8	3. 8x1	7493	26424	142
08010-C1	96	10	6. 350	105	145	20	140	125	110	13.5	M8	3. 8x1	6980	29563	149
08020-C1	96	20	9. 525	125	165	25	230	145	130	13.5	M8	3. 8x1	12145	43598	174
10020-C1	77	20	12.7	150	202	30	244	176	155	17.5	M8	3. 8x1	19633	71408	208

Place of Origin	China
Brand Name	ZANE
Certification	CE，ISO

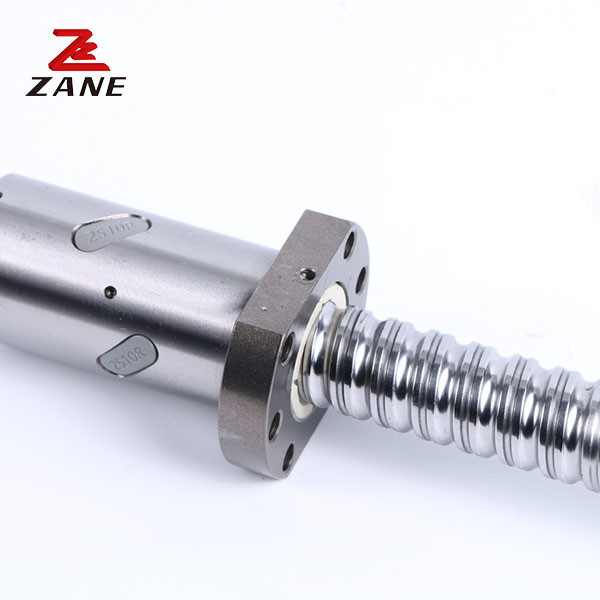

SFD TYPEE Ball Screw

SFS TYPE milling lead screw,

milling lead screw for Industry Machinery,
