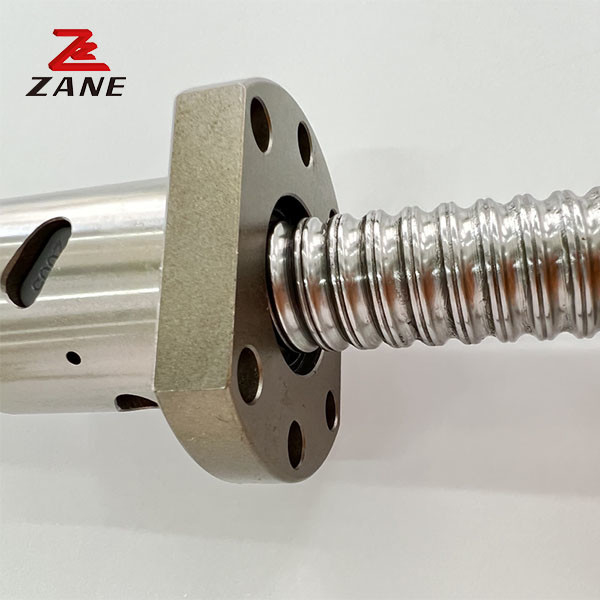

EFS TYPEE Ball Screw
  • EFS TYPEE Ball Screw
  • EFS TYPEE Ball Screw
  • EFS TYPEE Ball Screw
EFS TYPEE Ball Screw

EFS TYPEE Ball Screw

Place of Origin China
Brand Name ZANE
Certification CE，ISO
Product Details
Product Name:
Mini Linear Rail Guide
Material:
Steel
Width Of Guide Rail:
3/5/7/9/12/15/20mm
Length Of Slide Rail:
40-250mm/15mm Interval
Combination Height:
4-20mm
Slide Rail Height:
1-5mm
Application:
Machinery
Type:
Linear Motion Guideway
Series:
GMW Series
BLOCK:
Flange
Product Description





EFS TYPEE Ball Screw 0





Model Outer diameter lead Steel ball diameter nut size Bead laps Dynamic rated load Static rated load

rigid

kgf/µm
d I Da D A E B L X W H Q n Ca Coa k
01616-A2 16 16 2. 778 32 53 10.1 10 38 4.5 42 34 M6 1.8x2 1021 2409 29
01616-A4 16 2. 778 32 53 10. 1 10 38 4.5 42 34 M6 1.8x4 1853 4818 57
01632-A2 16 32 3.175 34 55 10.5 10 34 5.5 45 36 M6 0. 8x2 518 1094 11
01632-A4 32 3. 175 34 55 10.5 10 34 5.5 45 36 M6 0. 8x4 939 2188 21
02020-A2 20 20 3. 175 39 62 12 10 47 5.5 50 41 M6 1.8x2 1321 3320 35
02020-A4 20 3. 175 39 62 12 10 47 5.5 50 41 M6 1.8x4 2397 6640 67

02040-A2

02040-A4

 20 40 3. 175 38 58 11 10 41 5.5 48 40 M6 0. 8x2 582 1397 13
40 3. 175 38 58 11 10 41 5.5 48 40 M6 0. 8x4 1056 2794 26
02525-A2 25 25 3. 969 47 74 14 12 57 6.6 60 49 M6 1.8x2 1974 5188 43
02525-A4 25 3. 969 47 74 14 12 57 6.6 60 49 M6 1.8x4 3583 10377 83

02550-A2

02550-A4

 25 50 3. 969 46 70 13 12 50 6.6 58 48 M6 0. 8x2 870 2183 16
50 3. 969 46 70 13 12 50 6.6 58 48 M6 0. 8x4 1579 4366 32
03232-A2 32 32 4. 762 58 92 17 12 71 9 74 60 M6 1.8x2 2876 8207 54
03232-A4 32 4. 762 58 92 17 12 71 9 74 60 M6 1.8x4 5220 16414 106
03264-A2 32 64 4. 762 58 92 15.5 12 62 9 74 60 M6 0. 8x2 1225 3282 20
03264-A4 64 4. 762 58 92 15.5 12 62 9 74 60 M6 0. 8x4 2223 6565 39
04040-A2 40 40 6. 350 73 114 19.5 15 89 11 93 75 M6 1.8x2 4600 13281 66
04040-A4 40 6. 350 73 114 19.5 15 89 11 93 75 M6 1.8x4 8348 26561 128
05050-A2 50 50 7. 938 90 135 21.5 20 107 14 112 92 M6 1.8x2 6512 19430 80
05050-A4 50 7. 938 90 135 21.5 20 107 14 112 92 M6 1.8x4 11820 38859 155
