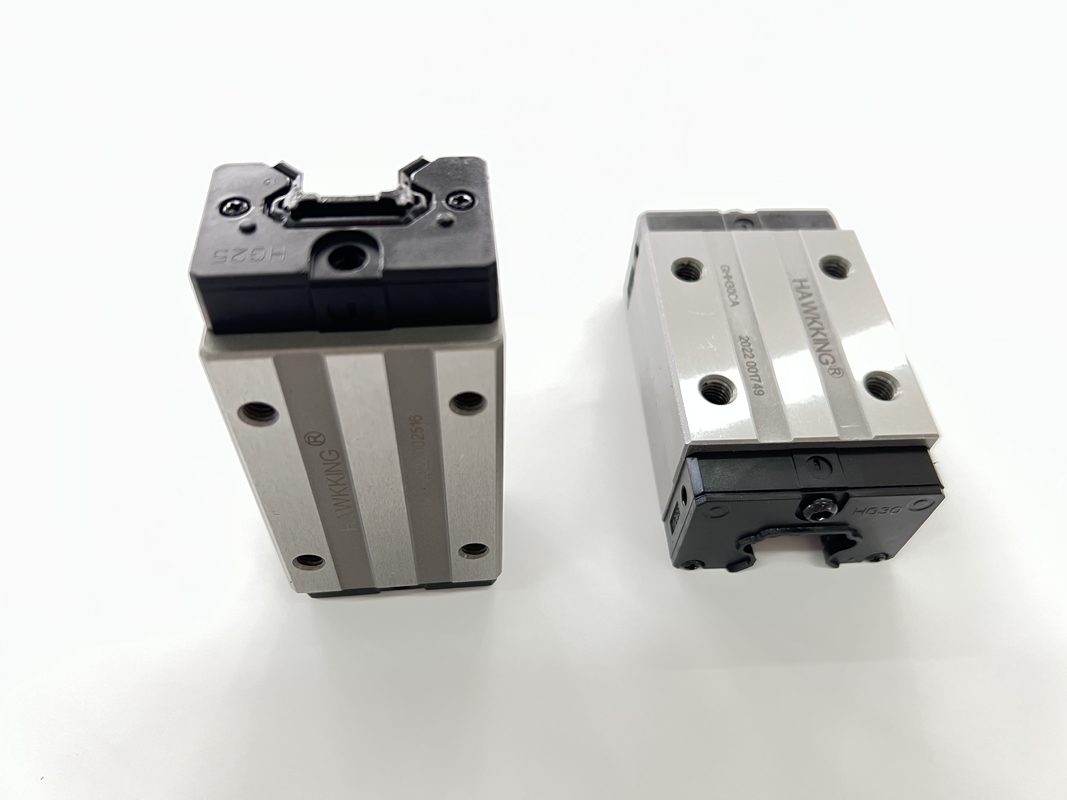

linear rails block linear guide Linear Slide HGH30 Customized Length High Running Performance
Types Of Linear Guides
The two types of linear guides which are most predominantly used in the motion control industry today are the sliding contact linear motion bearing and rolling element linear motion bearing guides. The main distinction between the two is the way in which the motion of the linear block proceeds along the linear rail.
| Model | Combination size (mm) | Block size(mm) | Slide rail size(mm) |
Fixing bolts for slide rails size |
Basic dynamic fixed load | Basic fixed fixed load | Allowable static moment | weight | ||||||||||||||||||||||
|
Mr kN^n |
MP kNf |
My kNF |
block kg |
slide kg/n |
||||||||||||||||||||||||||
| H | HI | N | W | B | BI | C | Li | L | KI | G | Mxl | T | h2 | h3 | WR | HR | D | h | d | P | E | (mm) | C(kN) | Co(kN) | ||||||
| GHH15CA | 28 | 4.3 | 9.5 | 34 | 26 | 4 | 26 | 39.4 | 61.4 | 10 | 5.3 | M4x5 | 6 | 7.95 | 7.7 | 15 | 15 | 7.5 | 5.3 | 4.5 | 60 | 20 | M4xl6 | 11.38 | 25.31 | 0.17 | 0.15 | 0.15 | 0.18 | 1.45 |
| GHH20CA | 30 | 4.6 | 12 | 44 | 32 | 6 | 36 | 50.5 | 77.5 | 12.25 | 12 | M5x6 | 8 | 6 | 7 | 20 | 17.5 | 9.5 | 8.5 | 6 | 60 | 20 | M5xl6 | 17.75 | 37.84 | 0.38 | 0.27 | 0.27 | 0.30 | 2.21 |
| GHH20HA | 50 | 65.2 | 92.2 | 12.6 | 21.18 | 48.84 | 0.48 | 0.47 | 0.47 | 0.39 | ||||||||||||||||||||
| GHH25CA | 40 | 5.5 | 48 | 35 | 6.5 | 35 | 58 | 84 | 16.8 | 12 | M6x8 | 8 | 10 | 23 | 22 | 11 | 9 | 7 | 60 | 20 | M6x20 | 26.48 | 56.19 | 0.64 | 0.51 | 0.51 | 0. 51 | 3.21 | ||
| GHH25HA | 12.5 | 50 | 78.6 | 104.6 | 19.6 | 32. 75 | 76.00 | 0.87 | 0.88 | 0.88 | 0.69 | |||||||||||||||||||
| GHH30CA | 45 | 6 | 16 | 60 | 40 | 10 | 40 | 70 | 97.4 | 20.25 | 12 | M8xl0 | 8.5 | 9.5 | 28 | 26 | 14 | 12 | 9 | 80 | 20 | 38.74 | 83.06 | 1.06 | 0.85 | 0.85 | 0.88 | 4. 47 | ||
| GHH30HA | 60 | 93 | 120.4 | 21.75 | 13.8 | M8x2ij | 47.27 | 110.13 | 1.40 | 1.47 | 1.47 | 1.16 | ||||||||||||||||||
| GHH35CA | 55 | 18 | 70 | 50 | 10 | 50 | 80 | 112.4 | 20.6 | 12 | 16 | 19.6 | 34 | 29 | 14 | 12 | 9 | 80 | 20 | 49.52 | 102.87 | 1.73 | 1.20 | 1. 20 | 1.45 | 6. 30 | ||||
| GHH35HA | 1.5 | 72 | 105.8 | 138.2 | 22.5 | M8xl2 | 60.21 | 136.31 | 2.29 | 2.08 | 2.08 | 1.92 | ||||||||||||||||||
| GHH45CA | 70 | 9.5 | 86 | 60 | 13 | 60 | 97 | 139.4 | 23 | M10xl7 | 16 | 45 | 38 | 20 | 17 | 14 | 105 | M12x35 | 77.57 | 155.93 | 3.01 | 2.35 | 2.35 | 2.73 | 10.41 | |||||
| GHH45HA | 20.5 | 80 | 128.8 | 171.2 | 28.9 | L8. | 30.5 | 22.5 | 94.54 | 207.12 | 4.00 | 4.07 | 4.07 | 3.61 | ||||||||||||||||
| GHH55CA | 80 | 100 | 75 | 75 | 117.7 | 166.7 | 27.35 | M12xl8 | 22 | 29 | 53 | 44 | 23 | 20 | 16 | 120 | 30 | M14x45 | 114.44 | 227. 81 | 5.66 | 4.06 | 4.06 | 4.17 | 15.08 | |||||
| GHH55HA | 13 | 23. 5 | 12. 5 | 95 | 155.8 | 204.8 | 36.4 | 12.9 | 139.35 | 301.26 | 7.49 | 7.01 | 7.01 | 5.49 | ||||||||||||||||
| GHH65CA | 90 | 15 | 126 | 76 | 25 | 70 | 144.2 | 200.2 | 43.1 | 25 | 15 | 15 | 63 | 53 | 26 | 22 | 18 | 150 | 35 | M16x50 | 163.63 | 324.71 | 10.02 | 6.44 | 6.44 | 7.00 | 21.18 | |||
| GHH65HA | 31.5 | 120 | 203.6 | 259.6 | 47.8 | 12.9 | M16x20 | 208.36 | 457.15 | 14.15 | 11.12 | 11.12 | 9.82 | |||||||||||||||||
Tips for ordering linear guide and linear guide blocks:
(1) Tell us the width of linear guide: e.g. 9mm
(2) What is the size code of linear guide blocks, pls? E.g. MGN9C, HGH15CA and etc.
(3) What is the linear guide length you need, and how many guide blocks in one linear guide, pls? E.g. MNG91R80MM; 1 pcs of blocks on the 80mm linear guide
EGW15CA EGW20CA EGW25CA EGW30CA EGW15SA EGW20SA EGW25SA EGW30SA
Our advantages for Linear guide HG series:
1. Complete sliding units system with high accuracy and can be moved without deflection.
2. Long life use.
3. Prompt delivery and good service.
4. Large stock and low batch wholesale.
5. ISO9001:2008
6. Competitive price, good quality, delivery fast.
7. Fast response to e-mails or solving questions quickly.
8. Honest cooperation and service.
Contact Us at Any Time
