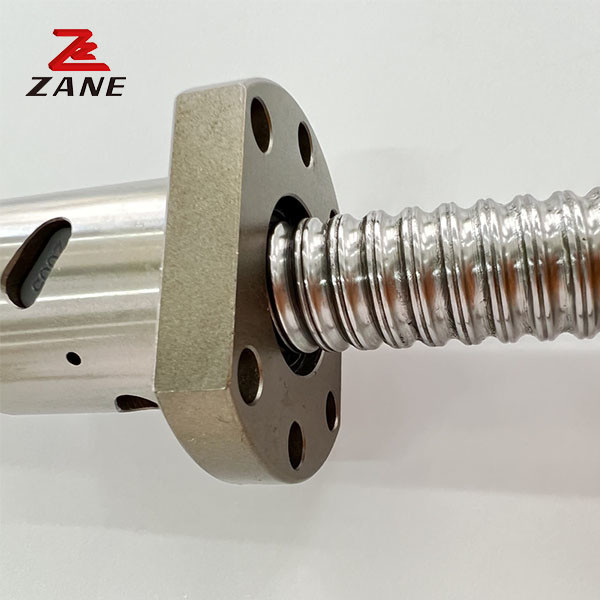

Sfur1610 10mm Lead Screw High Rigidity 16mm BallScrew Smooth Operation
  • Sfur1610 10mm Lead Screw High Rigidity 16mm BallScrew Smooth Operation
  • Sfur1610 10mm Lead Screw High Rigidity 16mm BallScrew Smooth Operation
Sfur1610 10mm Lead Screw High Rigidity 16mm BallScrew Smooth Operation

Sfur1610 10mm Lead Screw High Rigidity 16mm BallScrew Smooth Operation

Place of Origin China
Brand Name ZANE
Certification CE，ISO
Model Number UFSTYPE
Product Details
Product Name:
Ball Lead Screw
Screw Diameter:
12mm-100mm
BLOCK:
Flange
Application:
Cnc Machining Parts
Customized Service:
Support
Size(cm):
100*15*10CM
Length:
3000mm
Thread:
Usually Right Thread
Highlight:

Sfur1610 10mm lead screw

,

Smooth Operation 10mm lead screw

,

High Rigidity 16mm BallScrew

Product Description

UFSTYPE Ball Screw with Nut Sfur1610 16mm Diameter with Lead 10mm



Ball Screw Features:


1.High Reliability
has very stringent quality control standards covering every production process. With proper lubrication and use, trouble-free operation for an extended period of time is possible.

2. Smooth Operation
The high efficiency of ball screws is vastly superior to conventional screws. The torque required is less than 30%. Linear motion can be easily changed from rotary motion.

3.High Rigidity and Preload
When axial play is minimized in conventional screw-nut assemblies, the actuating torque becomes excessive and the operation is not smooth. The axial play in TBI MOTION precision ball screws may be reduced to zero by preloading and a light smooth operation is still possible. therefore , both low torque and high rigidity can be obtained simultaneously.TBI MOTION ball screws have gothic arch groove profiles (Fig. 1.2) which allow these conditions to be achieved.





Model Outer diameter lead Steel ball diameter nut size Bead laps Dynamic rated load Static rated load

rigid

kgf/µm
d I Da D A B L W H X Q n Ca Coa k
01204-T4 12 4 2.5 24 40 10 40 32 30 4. 5 - 4x1 902 1884 26
01604-T4 16 4 2. 381 28 48 10 40 38 40 5.5 M6 4x1 973 2406 32
01605-T3 5 3.175 28 48 10 42 38 40 5.5 M6 3x1 780 1168 32
01605-T4 5 3.175 28 48 10 50 38 40 5. 5 M6 4x1 1380 3052 32
01610-T3 10 3.175 28 48 10 57 38 40 5.5 M6 3x1 1103 2401 26
02004-T4 20 4 2.381 36 58 10 42 47 44 6.6 M6 4x1 1066 2987 38
02005-T4 5 3. 175 36 58 10 51 47 44 6. 6 M6 4x1 1551 3875 39
02504-T4 25 4 2. 381 40 62 10 42 51 48 6.6 M6 4x1 1180 3795 43
02505-T4 5 3.175 40 62 10 51 51 48 6.6 M6 4x1 1724 4904 45
02506-T4 6 3. 969 40 62 10 54 51 48 6.6 M6 4x1 2318 6057 47
02508-T4 8 4. 762 40 62 10 63 51 48 6.6 M6 4x1 2963 7313 49
02510-T4 10 4. 762 40 62 12 85 51 48 6.6 M6 4x1 2954 7295 50
03204-T4 32 4 2. 381 50 80 12 44 65 62 9 M6 4x1 1296 4838 51
03205-T4 5 3. 175 50 80 12 52 65 62 9 M6 4x1 1922 6343 54
03206-T4 6 3. 969 50 80 12 57 65 62 9 M6 4x1 2632 7979 57
03208-T4 8 4. 762 50 80 12 65 65 62 9 M6 4x1 3387 9622 60
03210-T4 10 6. 350 50 80 12 90 65 62 9 M6 4x1 4805 12208 61
04005-T4 40 5 3. 175 63 93 14 55 78 70 9 M8 4x1 2110 7988 63
04006-T4 6 3. 969 63 93 14 60 78 70 9 M6 4x1 2873 9913 66
04008-T4 8 4. 762 63 93 14 67 78 70 9 M6 4x1 3714 11947 70
04010-T4 10 6. 350 63 93 14 93 78 70 9 M8 4x1 5399 15500 73
05010-T4 50 10 6. 350 75 110 16 93 93 85 11 M8 4x1 6004 19614 85
05020-T4 20 7. 144 75 110 16 138 93 85 11 M8 4x1 7142 22588 94
06310-T4 63 10 6. 350 90 125 18 98 108 95 11 M8 4x1 6719 25358 99
06320-T4 20 9. 525 95 135 20 149 115 100 13.5 M8 4x1 11444 36653 112
08010-T4 80 10 6. 350 105 145 20 98 125 110 13.5 M8 4x1 7346 31953 109
08020-T4 20 9. 525 125 165 25 154 145 130 13.5 M8 4x1 12911 47747 138
10020-T4 100 20 9. 525 150 202 30 180 170 155 17.5 M8 4x1 14303 60698 162







Standard size specification comparison table





Model Lead accuracy class Thread direction threaded number





Standard screw code





Applicable nut types

Outer diameter

d



Lead 1

Bead diameter

Da

 L/R
40 5 3.175 C7,C5,C3 R/L 1 04005 l,U,S
6 3.969 C7,C5,C3 R 1 04006 U
8 4.762 C7,C5,C3 R 1 04008 U
10 6.35 C7,C5,C3 R/L 1 04010 l,U
40 6.35 C7,C5,C3 R 2 04040 E
80 6.35 C7,C5,C3 R 2 04080 E
50 5 3.175 C7,C5,C3 R 1 05005 S
10 6.35 C7,C5,C3 R/L 1 05010 l,U
50 7.938 C7,C5,C3 R 2 05050 E
100 7.938 C7,C5,C3 R 2 50100 E
63 10 6.35 C7,C5,C3 R 1 06310 l,U
20 9.525 C7,C5,C3 R 1 06320 U
80 10 6.35 C7,C5,C3 R 1 08010 l,U
20 9.525 C7,C5,C3 R 1 08020 U





Precision grinding screw standard size specification comparison table





Model Lead accuracy class Thread direction threaded number





Standard screw code





Applicable nut types

Outer diameter

d



Lead 1

 Bead diameter Da L/R
4 1 0.8 C7,C5,C3 R 1 00401 M
6 1 0.8 C7,C5,C3 R 1 00601 M
8 1 0.8 C7,C5,C3 R/L 1 00801 M
2 1.2 C7,C5,C3 R/L 1 00802 M
2.5 1.2 C7,C5,C3 R 1 0082.5 M,T
10 2 1.2 C7,C5,C3 R/L 1 01002 M,T
4 2 C7,C5,C3 R 1 01004 M,T
12 2 1.2 C7,C5,C3 R/L 1 01202 M
4 2.5 C7,C5,C3 R 1 01204 U,T
5 2.5 C7,C5,C3 R 1 01205-A U,T,S
5 2.5 C7,C5,C3 R 1 01205-B M
10 2.5 C7,C5,C3 R 2 01210-B VS
14 2 1.2 C7,C5,C3 R/L 1 01402 M
4 2.5 C7,C5,C3 R 1 01404 T
16 2 1.2 C7,C5,C3 R/L 1 01602 M
4 2.381 C7,C5,C3 R 1 01604 (N) l,U,T
5 3.175 C7,C5,C3 R/L 1 01605 l,U,T
10 3.175 C7,C5,C3 R/L 2 01610 l,U,T
16 2.778 C7,C5,C3 R 2 01616 E
32 2.778 C7,C5,C3 R 2 01632 E
20 4 2.381 C7,C5,C3 R 1 02004 (N) l,U
5 3.175 C7,C5,C3 R/L 1 02005 l,U,T,S
10 3.969 C7,C5,C3 R 1 02010 VS
20 3.175 C7,C5,C3 R 2 02020 VS,E,S
40 3.175 C7,C5,C3 R 2 02040 E
25 4 2.381 C7,C5,C3 R 1 02504 (N) l,U
5 3.175 C7,C5,C3 R/L 1 02505 l,U,T,S
6 3.969 C7,C5,C3 R 1 02506 U
8 4.762 C7,C5,C3 R 1 02508 U
10 4.762 C7,C5,C3 R 1 02510-A l,U,T
25 3.969 C7,C5,C3 R 2 02525 E
50 3.969 C7,C5,C3 R 2 02550 E
32 4 2.381 C7,C5,C3 R 1 03204 (N) l,U
5 3.175 C7,C5,C3 R/L 1 03205 l,U,S
6 3.969 C7,C5,C3 R 1 03206 U
8 4.762 C7,C5,C3 R 1 03208 U
10 6.35 C7,C5,C3 R/L 1 03210 l,U
20 6.35 C7,C5,C3 R 1 03220 E
32 4.762 C7,C5,C3 R 2 03232 E
64 4.762 C7,C5,C3 R 2 03264 E
