| Place of Origin | China |
| Brand Name | ZANE |
| Certification | CE，ISO |
| Model Number | GMW12CA |

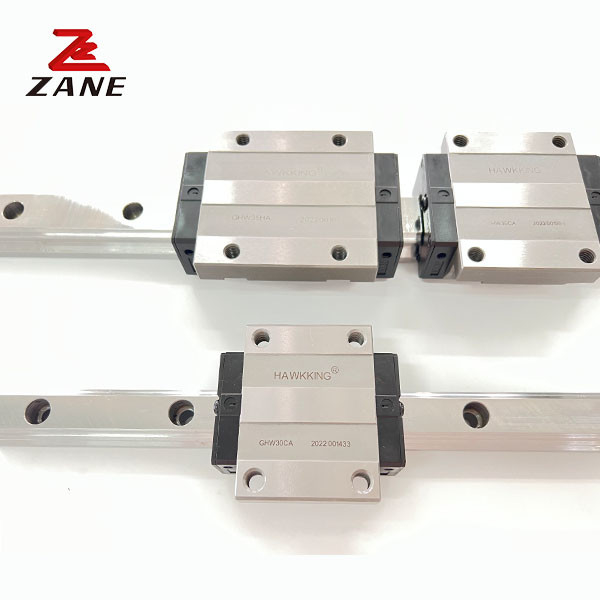

Domestic Linear Guide Precision Sliding Block GMW12CA For Automatic Equipment
1. Description
The linear guide blocks move down the length of the linear rail along the plane it was positioned for. Also known as "linear bearings and rails," or "linear guideways," linear guide systems support and guide a load or mounted tool using precise, smooth linear motion.
2. Specification
| Model | Combination size (mm) | Block size(mm) | Slide rail size(mm) | Rated dynamic load | Rated static load |
Allowable static moment Kgf*M
(kgf • m) |
Sliding rail fastening bolt dimensions (mm) |
||||||||||||||||
| H | Hi | N | W | B | Bl | C | Ll | L | MxL | Wr | Hr | D | h | d | P | E | C(kgf) | C(kgf) | Mr | MP | My | ||
| GMW3CA | 4.5 | 1 | 3 | 12 | - | - | 4.5 | 9.8 | 15 | M2xl.6 | 6 | 2.8 | 4 | 1.5 | 2.4 | 15 | 10 | 29 | 54 | 0.16 | 0.09 | 0. 09 | M2x4 |
| GMW3HA | 8 | 14.6 | 20 | 38 | 91 | 0. 26 | 0.19 | 0. 19 | |||||||||||||||
| GMW5CA | 6.5 | 1.5 | 3.5 | 17 | 13 | 2 | - | 13.6 | 20.5 | M2.5x1.5 | 10 | 4 | 4.8 | 1.6 | 2.9 | 20 | 10 | 48 | 92 | 0.47 | 0. 22 | 0. 22 | M2. 5x7 |
| GMW5HA | - | 17.6 | 24.5 | 63 | 134 | 0.7 | 0.42 | 0.42 | |||||||||||||||
| GMW7CA | 9 | 2 | 5.5 | 25 | 19 | 3 | 10 | 22 | 31.5 | M3x3 | 14 | 5.5 | 6 | 3.2 | 3.5 | 30 | 15 | 140 | 210 | 1.6 | 0. 73 | 0. 73 | M3x8 |
| GMW7HA | 19 | 32.5 | 42 | 180 | 320 | 2. 39 | L 58 | 1.58 | |||||||||||||||
| GMW9CA | 12 | 3 | 6 | 30 | 21 | 4.5 | 12 | 28.6 | 38.5 | M3x3 | 18 | 7 | 6.5 | 45 | 3.5 | 30 | 15 | 280 | 420 | 4.09 | 1.93 | 1.93 | M3x8 |
| GMW9HA | 23 | 3.5 | 24 | 40.4 | 50.5 | 350 | 600 | 5. 56 | 3.47 | 3.47 | |||||||||||||
| GMW12CA | 14 | 3 | 8 | 40 | 28 | 6 | 15 | 31 | 44 | M3x3.5 | 24 | 8 | 8 | 45 | 4.5 | 40 | 20 | 400 | 570 | 7.17 | 2.83 | 2.83 | M4xl0 |
| GMW12HA | 28 | 46.3 | 59 | 520 | 840 | 10. 47 | 5. 85 | 5. 85 | |||||||||||||||
| GMW15CA | 16 | 4 | 9 | 60 | 45 | 7.5 | 20 | 39.4 | 55 | M4x4.5 | 42 | 10 | 8 | 4.5 | 4.5 | 40 | 20 | 690 | 940 | 20.3 | 5. 78 | 5. 78 | M4xl2 |
| GMW15HA | 35 | 58.7 | 74.5 | 910 | 1410 | 30.48 | 12.5 | 12.5 | |||||||||||||||
ps:1 kgf= 9.81 N
3. Company Information
Jiangsu Zane Machinery Technology Co., Ltd. is a high-tech mechanical transmission products of high-tech enterprises. The company has 4 branches respectively manage different types of mechanical transmission products research and marketing projects. It has nearly 50 independent intellectual property rights. Is Taiwan YYc rack level agents, is Taiwan Heqing (HAWKKING) linear guide rail, ball screw research and development pioneers. ZANE module by the majority of customers love and trust. "Knowing kindness and being grateful moisten one's life" is the eternal source of growth for Zane people.
