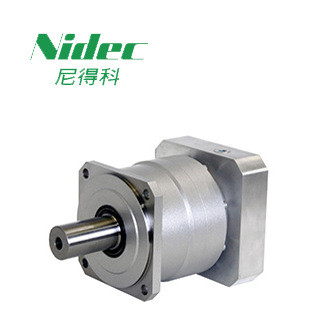

Durable Nidec Shimpo Gearbox Reducer VRS 060B Planetary Gearbox Reducer
  • Durable Nidec Shimpo Gearbox Reducer VRS 060B Planetary Gearbox Reducer
Durable Nidec Shimpo Gearbox Reducer VRS 060B Planetary Gearbox Reducer

Durable Nidec Shimpo Gearbox Reducer VRS 060B Planetary Gearbox Reducer

Place of Origin Japan
Brand Name Nidec
Certification CE,ISO
Model Number VRS
Product Details
Product Name:
Nidec Shimpo Gearbox
Manufacturer:
Nidec Shimpo
Product Series:
VRS Series
Weight (KG):
5KG
Frame Size:
060
Gearing Arrangement:
Planetary
Maximum Radial Load:
3000N
Maximum Axial Load:
2700N
Application:
Robotic, Automation Equipment, CNC Machine
Highlight:

Nidec Shimpo Gearbox Reducer

,

VRS 060B Planetary Gearbox Reducer

,

CNC Machine Nidec Shimpo Gearbox

Product Description

Nidec Shimpo Durable Reducer Planetary Gearbox VRS 060B Planetary Gearbox Reducer

Product Description:

Nidec Shimpo Gearbox is an industrial gearbox solution featuring robust gearbox technology. This product series is the VRS Series, manufactured by Nidec Shimpo. It is made of sturdy iron materials, and weighs 5KG. This Nidec Shimpo Gearbox provides reliable and efficient industrial gearbox solutions for customers.



The Nidec Shimpo Gearbox is known for its superior quality and durability. It is designed to be robust and reliable, and can withstand the toughest industrial conditions. This gearbox technology is also highly reliable, and provides superior performance in various applications. This gearbox is a great choice for industrial gearbox solutions, and can help customers achieve their goals.



Technical Parameters:

Frame

Size

 Stage Ratio

Nominal

Output torque

Maximum

Output torque

 Emergency stop torque

Nominal

Input speed

Maximum

Input speed

Permitted

Radial load

Permitted

Axial load
[Nm] [Nm] [Nm] [rpm] [rpm] [N] [N]
060B 1 Single 3 18 35 80 3000 6000 1700 2300
4 27 50 100 3000 6000 1900 2500
5 27 50 100 3000 6000 2000 2700
6 27 50 100 3000 6000 2100 2700
7 27 50 100 3000 6000 2200 2700
8 27 50 100 3000 6000 2300 2700
9 18 35 80 3000 6000 2400 2700
10 18 35 80 3000 6000 2400 2700
2 Double 15 18 35 80 3000 6000 2800 2700
16 27 50 100 3000 6000 2800 2700
20 27 50 100 3000 6000 3000 2700
25 27 50 100 3000 6000 3000 2700
28 27 50 100 3000 6000 3000 2700
30 18 35 80 3000 6000 3000 2700
35 27 50 100 3000 6000 3000 2700
40 27 50 100 3000 6000 3000 2700
45 18 35 80 3000 6000 3000 2700
50 27 50 100 3000 6000 3000 2700
60 27 50 100 3000 6000 3000 2700
70 27 50 100 3000 6000 3000 2700
80 27 50 100 3000 6000 3000 2700
90 18 35 80 3000 6000 3000 2700
100 18 35 80 3000 6000 3000 2700



Frame

Size

 Stage Ratio

Maximum

Radial load

Maximum

Axial load

 Weight

Moment

Of inertia ≤8

Moment

Of inertia ≤14

Moment

Of inertia ≤19
[N] [N] [kg] [Kgc㎡] [Kgc㎡] [Kgc㎡]
060B

1

Single

 3 3000 2700 1.6 0.15 0.23 0.44
4 3000 2700 0.10 0.18 0.39
5 3000 2700 0.080 0.16 0.37
6 3000 2700 0.070 0.15 0.36
7 3000 2700 0.064 0.14 0.35
8 3000 2700 0.060 0.14 0.35
9 3000 2700 0.058 0.14 0.35
10 3000 2700 0.056 0.14 0.34

2

Double

 15 3000 2700 1.8 0.055 0.14 -
16 3000 2700 0.057 0.14 -
20 3000 2700 0.054 0.13 -
25 3000 2700 0.053 0.13 -
28 3000 2700 0.055 0.14 -
30 3000 2700 0.049 0.13 -
35 3000 2700 0.053 0.13 -
40 3000 2700 0.049 0.13 -
45 3000 2700 0.053 0.13 -
50 3000 2700 0.049 0.13 -
60 3000 2700 0.049 0.13 -
70 3000 2700 0.049 0.13 -
80 3000 2700 0.049 0.13 -
90 3000 2700 0.049 0.13 -
100 3000 2700 0.049 0.13 -





Durable Nidec Shimpo Gearbox Reducer VRS 060B Planetary Gearbox Reducer 0Durable Nidec Shimpo Gearbox Reducer VRS 060B Planetary Gearbox Reducer 1Durable Nidec Shimpo Gearbox Reducer VRS 060B Planetary Gearbox Reducer 2

Applications:

Nidec Shimpo Gearbox is a precision gearbox solution designed for high reliability and maximum performance. This gearbox is made with advanced technology from Nidec, a Japanese manufacturer known for its innovative products.



The Nidec Shimpo Gearbox is a reliable, high-performance solution for robotic, automation equipment, and CNC machines. With its precision design and long-term reliability, it is the ideal choice for high-precision applications. It is a great choice for those who need a reliable, efficient, and cost-effective gearbox solution.
