VRS Series Nidec Shimpo Gearbox Transmission Gearbox Planetary Gearbox Reducer
  • VRS Series Nidec Shimpo Gearbox Transmission Gearbox Planetary Gearbox Reducer
VRS Series Nidec Shimpo Gearbox Transmission Gearbox Planetary Gearbox Reducer

VRS Series Nidec Shimpo Gearbox Transmission Gearbox Planetary Gearbox Reducer

Place of Origin Japan
Brand Name Nidec
Certification CE,ISO
Model Number VRS
Product Details
Product Name:
Nidec Shimpo Gearbox
Manufacturer:
Nidec Shimpo
Product Series:
VRS Series
Weight (KG):
5KG
Frame Size:
140
Gearing Arrangement:
Planetary
Maximum Radial Load:
10000N
Maximum Axial Load:
9000N
Application:
Robotic, Automation Equipment, CNC Machine
Highlight:

VRS Series Nidec Shimpo Gearbox

,

Nidec Shimpo Transmission Gearbox

,

Nidec Shimpo Planetary Gearbox Reducer

Product Description

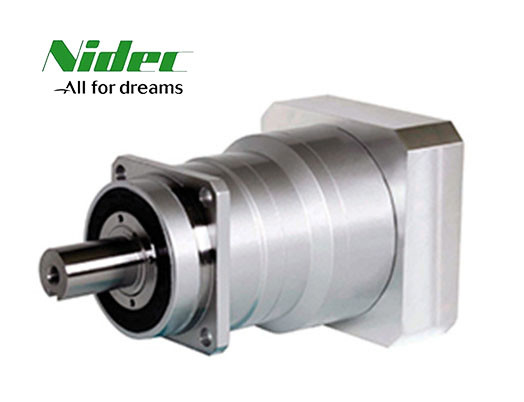

VRS Series Shimpo Reducer Nidec Shimpo Manufacture Transmission Gearbox Planetary Gearbox Reducer

Product Description:

Planetary gearbox is a kind of reducer with wide versatility. The inner gear adopts low carbon alloy steel carburizing quenching and grinding or nitriding process. Planetary gearbox has the characteristics of small structure size, large output torque, high speed ratio, high efficiency, safe and reliable performance, etc. The inner gear of the planetary gearbox can be divided into spur gear and helical gear. Customers can choose the right precision reducer according to the needs of the application.

Technical Parameters:

Frame

Size

 Stage Ratio

Nominal

Output torque

Maximum

Output torque

 Emergency stop torque

Nominal

Input speed

Maximum

Input speed

Permitted

Radial load

Permitted

Axial load
[Nm] [Nm] [Nm] [rpm] [rpm] [N] [N]
140B 1 Single 3 240 470 1000 2000 4000 6700 9000
4 240 700 1250 2000 4000 7400 9000
5 360 700 1250 2000 4000 7900 9000
6 360 700 1250 2000 4000 8300 9000
7 360 700 1250 2000 4000 8700 9000
8 360 700 1250 2000 4000 9100 9000
9 240 470 1000 2000 4000 9400 9000
10 240 470 1000 2000 4000 9700 9000
2 Double 15 240 470 1000 2000 4000 10000 9000
16 360 700 1250 2000 4000 10000 9000
20 360 700 1250 2000 4000 10000 9000
25 360 700 1250 2000 4000 10000 9000
28 360 700 1250 2000 4000 10000 9000
30 240 470 1000 2000 4000 10000 9000
35 360 700 1250 2000 4000 10000 9000
40 360 700 1250 2000 4000 10000 9000
45 240 470 1000 2000 4000 10000 9000
50 360 700 1250 2000 4000 10000 9000
60 360 700 1250 2000 4000 10000 9000
70 360 700 1250 2000 4000 10000 9000
80 360 700 1250 2000 4000 10000 9000
90 240 470 1000 2000 4000 10000 9000
100 240 470 1000 2000 4000 10000 9000



Frame

Size

 Stage Ratio

Maximum

Radial load

Maximum

Axial load

 Weight

Moment

Of inertia ≤19

Moment

Of inertia ≤28

Moment

Of inertia ≤38

Moment

Of inertia ≤48
[N] [N] [kg] [Kgc㎡] [Kgc㎡] [Kgc㎡] [Kgc㎡]
140B

1

Single

 3 10000 9000 17 - 12 20 42
4 10000 9000 - 7.4 15 37
5 10000 9000 - 5.8 13 36
6 10000 9000 - 4.9 13 35
7 10000 9000 - 4.1 12 34
8 10000 9000 - 3.8 12 34
9 10000 9000 - 3.6 11 34
10 10000 9000 - 3.4 11 33

2

Double

 15 10000 9000 19 1.3 3.2 11 -
16 10000 9000 1.5 3.5 11 -
20 10000 9000 1.2 3.1 11 -
25 10000 9000 1.1 3.1 11 -
28 10000 9000 1.4 3.3 11 -
30 10000 9000 0.85 2.8 10 -
35 10000 9000 1.1 3.1 11 -
40 10000 9000 0.83 2.8 10 -
45 10000 9000 1.1 3.0 11 -
50 10000 9000 0.81 2.8 10 -
60 10000 9000 0.81 2.8 10 -
70 10000 9000 0.80 2.8 10 -
80 10000 9000 0.80 2.8 10 -
90 10000 9000 0.80 2.8 10 -
100 10000 9000 0.80 2.8 10 -



VRS Series Nidec Shimpo Gearbox Transmission Gearbox Planetary Gearbox Reducer 0

VRS Series Nidec Shimpo Gearbox Transmission Gearbox Planetary Gearbox Reducer 1

VRS Series Nidec Shimpo Gearbox Transmission Gearbox Planetary Gearbox Reducer 2VRS Series Nidec Shimpo Gearbox Transmission Gearbox Planetary Gearbox Reducer 3



Features of Shimpo Planetary Gearbox:

1) Simple structure in linear type ,easy in installation and maintation.



2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.



3) High pressure double crank to control the die opening and closing.



4) Running in a high automatization and intellectualization,no pollution



5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
