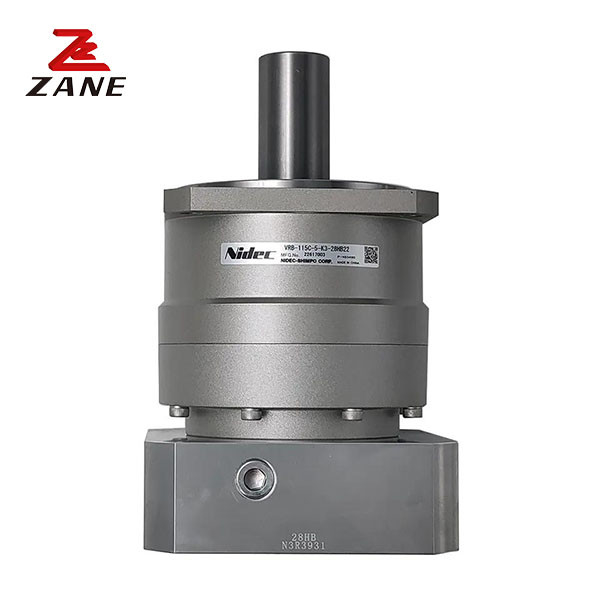

Nidec Shimpo Gearbox
>
|
| Place of Origin | Japan |
| Brand Name | Nidec |
| Certification | CE,ISO |
| Model Number | VRB |
Nidec Shimpo Gearbox is a high-performance gearbox transmission manufactured by Nidec, a leader in the transmission industry. The gearbox is made of iron for durability and is designed to handle a maximum radial load of 710N. It is lightweight and its weight is only 5KG. It is the perfect choice for any application that requires a reliable and efficient transmission. Nidec Shimpo Gearbox is designed to provide reliable and consistent power transmission and has been proven to be effective in a wide range of applications. The Nidec Gearbox Transmissions are the most reliable and efficient transmissions available in the market today and are the perfect solution for any application that requires a high-performance gearbox.
|
Frame size |
Stage |
Ratio |
Nominal output torque |
Maximum output torque |
Emergency stop torque |
Nominal input speed |
Maximum input speed |
Permitted radial load |
Permitted axial load |
| [Nm] | [Nm] | [Nm] | [rpm] | [rpm] | [N] | [N] | |||
|
042 |
1 Single |
3 | 6 | 12 | 30 | 4000 | 8000 | 240 | 270 |
| 4 | 9 | 18 | 35 | 4000 | 8000 | 270 | 300 | ||
| 5 | 9 | 18 | 35 | 4000 | 8000 | 290 | 330 | ||
| 6 | 9 | 18 | 35 | 4000 | 8000 | 310 | 360 | ||
| 7 | 9 | 18 | 35 | 4000 | 8000 | 320 | 380 | ||
| 8 | 9 | 18 | 35 | 4000 | 8000 | 340 | 410 | ||
| 9 | 6 | 12 | 30 | 4000 | 8000 | 350 | 430 | ||
| 10 | 6 | 12 | 30 | 4000 | 8000 | 360 | 450 | ||
| Double | 15 | 6 | 12 | 30 | 4000 | 8000 | 410 | 540 | |
| 16 | 9 | 18 | 35 | 4000 | 8000 | 420 | 550 | ||
| 20 | 9 | 18 | 35 | 4000 | 8000 | 460 | 610 | ||
| 25 | 9 | 18 | 35 | 4000 | 8000 | 490 | 640 | ||
| 28 | 9 | 18 | 35 | 4000 | 8000 | 510 | 640 | ||
| 30 | 6 | 12 | 30 | 4000 | 8000 | 520 | 640 | ||
| 35 | 9 | 18 | 35 | 4000 | 8000 | 550 | 640 | ||
| 40 | 9 | 18 | 35 | 4000 | 8000 | 570 | 640 | ||
| 45 | 6 | 12 | 30 | 4000 | 8000 | 600 | 640 | ||
| 50 | 9 | 18 | 35 | 4000 | 8000 | 620 | 640 | ||
| 60 | 9 | 18 | 35 | 4000 | 8000 | 660 | 640 | ||
| 70 | 9 | 18 | 35 | 4000 | 8000 | 690 | 640 | ||
| 80 | 9 | 18 | 35 | 4000 | 8000 | 710 | 640 | ||
| 90 | 6 | 12 | 30 | 4000 | 8000 | 710 | 640 | ||
| 100 | 6 | 12 | 30 | 4000 | 8000 | 710 | 640 |
|
Frame size |
Stage |
Ratio |
Maximum radial load |
Maximum axial load |
Weight |
Moment of inertia (≦φ8) |
Moment of inertia (≦φ14) |
| [N] | [N] | [kg] | [kgcm2] | [kgcm2] | |||
|
042 |
1 Single |
3 | 710 | 640 |
0.6 |
0.053 | 0.091 |
| 4 | 710 | 640 | 0.041 | 0.079 | |||
| 5 | 710 | 640 | 0.036 | 0.074 | |||
| 6 | 710 | 640 | 0.034 | 0.072 | |||
| 7 | 710 | 640 | 0.032 | 0.071 | |||
| 8 | 710 | 640 | 0.031 | 0.070 | |||
| 9 | 710 | 640 | 0.031 | 0.069 | |||
| 10 | 710 | 640 | 0.030 | 0.069 | |||
|
Double |
15 | 710 | 640 |
0.7 |
0.035 | - | |
| 16 | 710 | 640 | 0.038 | - | |||
| 20 | 710 | 640 | 0.034 | - | |||
| 25 | 710 | 640 | 0.034 | - | |||
| 28 | 710 | 640 | 0.038 | - | |||
| 30 | 710 | 640 | 0.030 | - | |||
| 35 | 710 | 640 | 0.034 | - | |||
| 40 | 710 | 640 | 0.030 | - | |||
| 45 | 710 | 640 | 0.034 | - | |||
| 50 | 710 | 640 | 0.030 | - | |||
| 60 | 710 | 640 | 0.030 | - | |||
| 70 | 710 | 640 | 0.030 | - | |||
| 80 | 710 | 640 | 0.030 | - | |||
| 90 | 710 | 640 | 0.030 | - | |||
| 100 | 710 | 640 | 0.030 | - |
One of the key features of the Nidec Shimpo gearbox is its compact size. Despite its high torque output, the gearbox is relatively small and lightweight, which makes it easy to install and integrate into existing systems. It is also highly customizable, with a range of mounting options and gear ratios available to suit different applications.
