Home > PRODUCTS > Nidec Shimpo Gearbox >

VRB Series Planetary Gearbox Reducer Nidec Speed Reducer VRB060 Shimpo Gearbox

Name: VRB Series Planetary Gearbox Reducer Nidec Speed Reducer VRB060 Shimpo Gearbox
Brand: Nidec
SKU: VRB
Rating: 4.6 (199 reviews)

Place of Origin	Japan
Brand Name	Nidec
Certification	CE,ISO
Model Number	VRB

Product Details

Product Name:

Nidec Shimpo Gearbox

Manufacturer:

Nidec Shimpo

Product Series:

VRB Series

Weight (KG):

5KG

Frame Size:

060

Gearing Arrangement:

Planetary

Maximum Radial Load:

1200N

Maximum Axial Load:

1100N

Application:

Robotic, Automation Equipment, CNC Machine

Highlight:

VRB Series Planetary Gearbox Reducer

Nidec Speed Reducer

VRB060 Shimpo Gearbox

Product Description

VRB Series Planetary Gearbox Reducer Nidec Made In Japan Speed Reducer VRB Gearbox VRB060 Shimpo Gearbox

Product Description:

Nidec Shimpo Gearbox: VRB Series

Nidec Shimpo presents the VRB Series heavy-duty gearbox system, a high performance gearbox designed to provide superior performance and reliability in demanding applications. Constructed with durable iron, this heavy-duty gearbox system features a planetary gearing arrangement that allows for a maximum radial load of 710N. Ideal for a range of industries, the VRB Series is the perfect choice for those looking for a reliable, heavy-duty gearbox system.

Technical Parameters:

Frame size	Stage	Ratio	Nominal output torque	Maximum output torque	Emergency stop torque	Nominal input speed	Maximum input speed	Permitted radial load	Permitted axial load
Frame size	Stage	Ratio	[Nm]	[Nm]	[Nm]	[rpm]	[rpm]	[N]	[N]
060	1 Single	3	18	35	80	3000	6000	430	310
		4	27	50	100	3000	6000	470	360
		5	27	50	100	3000	6000	510	390
		6	27	50	100	3000	6000	540	430
		7	27	50	100	3000	6000	570	460
		8	27	50	1000	3000	6000	600	480
		9	18	35	80	3000	6000	620	510
		10	18	35	80	3000	6000	640	530
	Double	15	18	35	80	3000	6000	740	630
		16	27	50	100	3000	6000	750	650
		20	27	50	100	3000	6000	810	720
		25	27	50	100	3000	6000	870	790
		28	27	50	100	3000	6000	910	830
		30	18	35	80	3000	6000	930	860
		35	27	50	100	3000	6000	980	920
		40	27	50	100	3000	6000	1000	970
		45	18	35	80	3000	6000	1100	1000
		50	27	50	100	3000	6000	1100	1100
		60	27	50	100	3000	6000	1200	1100
		70	27	50	100	3000	6000	1200	1100
		80	27	50	100	3000	6000	1200	1100
		90	18	35	80	3000	6000	1200	1100
		100	18	35	80	3000	6000	1200	1100

Frame size	Stage	Ratio	Maximum radial load	Maximum axial load	Weight	Moment of inertia (≦φ8)	Moment of inertia (≦φ14)	Moment of inertia (≦φ19)
Frame size	Stage	Ratio	[N]	[N]	[kg]	[kgcm2]	[kgcm2]	[kgcm2]
060	1 Single	3	1200	1100	1.4	0.14	0.22	0.43
		4	1200	1100		0.095	0.17	0.38
		5	1200	1100		0.077	0.16	0.36
		6	1200	1100		0.068	0.15	0.36
		7	1200	1100		0.062	0.14	0.35
		8	1200	1100		0.059	0.14	0.35
		9	1200	1100		0.057	0.14	0.34
		10	1200	1100		0.056	0.14	0.34
	Double	15	1200	1100	1.6	0.055	0.14	-
		16	1200	1100		0.057	0.14	-
		20	1200	1100		0.054	0.13	-
		25	1200	1100		0.053	0.13	-
		28	1200	1100		0.055	0.14	-
		30	1200	1100		0.049	0.13	-
		35	1200	1100		0.053	0.13	-
		40	1200	1100		0.049	0.13	-
		45	1200	1100		0.053	0.13	-
		50	1200	1100		0.049	0.13	-
		60	1200	1100		0.049	0.13	-
		70	1200	1100		0.049	0.13	-
		80	1200	1100		0.049	0.13	-
		90	1200	1100		0.049	0.13	-
		100	1200	1100		0.049	0.13	-

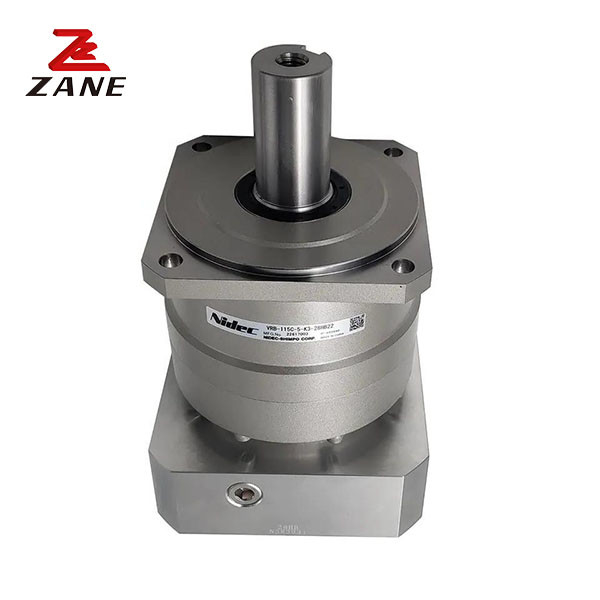

VRB Series Planetary Gearbox Reducer Nidec Speed Reducer VRB060 Shimpo Gearbox 0

VRB Series Planetary Gearbox Reducer Nidec Speed Reducer VRB060 Shimpo Gearbox 1

Applications:

The Nidec Shimpo gearbox is commonly used in industries such as material handling, packaging, robotics, and automation. It can be used in conveyor systems, lifting equipment, and other machinery that requires high torque and low speed.
