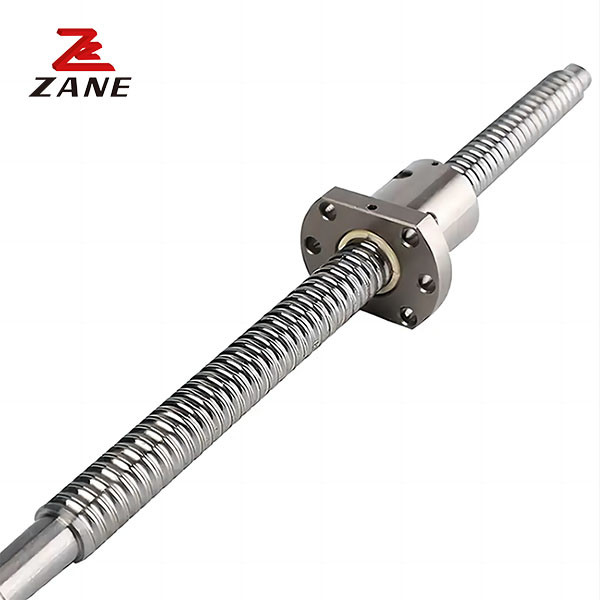

SCR1610 Custom Length Ball Screw Grinding Milled Thread Ball Screw With Nut

SCR1610 Custom Length Ball Screw Grinding Milled Thread Ball Screw With Nut

SCR1610 Custom Length Ball Screw Grinding Milled Thread Ball Screw With Nut

Place of Origin	China
Brand Name	HAWKKING
Certification	CE，ISO
Model Number	SCR1610

Product Details

Product Name:

Ball Screw

Length:

Customer Requirements

Model Number:

SCR1610

Material:

Carbon Steel

Applicable Industries:

Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works

Processing Method:

CNC Machining,CNC Turning,Drilling,etc

Core Components:

Bearing, Nut, Shaft, Balls

Feature:

Fine Feed High Rigidity

Accuracy:

C3/C5/C7/C10

Highlight:

Milled Thread Ball Screw

,

Grinding Ball Screw

Product Description

SCR1610 Custom Length Ball Screw Grinding Milled Thread Ball Screw With Nut

Customize Ballscrew SCR1605 SCR1610 SCR1616 SCR2020 SCR2505 SCR2510 SCR2525 series Ball screw
SCR series features high smoothness, high rigidity, high durability and strong dust-proof, with internal circulation
design, making SCR series applicable to small operating environment.

Nut size table

SCR1610 Custom Length Ball Screw Grinding Milled Thread Ball Screw With Nut 0

Model	Outer diameter	lead	Steel ball diameter	nut size								Bead laps	Dynamic rated load	Static rated load	rigid kgf/µm
Model	d	I	Da	D	A	B	L	W	H	X	Q	n	Ca	Coa	k
01204-T4	12	4	2.5	24	40	10	40	32	30	4. 5	-	4x1	902	1884	26
01604-T4	16	4	2. 381	28	48	10	40	38	40	5.5	M6	4x1	973	2406	32
01605-T3		5	3.175	28	48	10	42	38	40	5.5	M6	3x1	780	1168	32
01605-T4		5	3.175	28	48	10	50	38	40	5. 5	M6	4x1	1380	3052	32
01610-T3		10	3.175	28	48	10	57	38	40	5.5	M6	3x1	1103	2401	26
02004-T4	20	4	2.381	36	58	10	42	47	44	6.6	M6	4x1	1066	2987	38
02005-T4	20	5	3. 175	36	58	10	51	47	44	6. 6	M6	4x1	1551	3875	39
02504-T4	25	4	2. 381	40	62	10	42	51	48	6.6	M6	4x1	1180	3795	43
02505-T4		5	3.175	40	62	10	51	51	48	6.6	M6	4x1	1724	4904	45
02506-T4		6	3. 969	40	62	10	54	51	48	6.6	M6	4x1	2318	6057	47
02508-T4		8	4. 762	40	62	10	63	51	48	6.6	M6	4x1	2963	7313	49
02510-T4		10	4. 762	40	62	12	85	51	48	6.6	M6	4x1	2954	7295	50
03204-T4	32	4	2. 381	50	80	12	44	65	62	9	M6	4x1	1296	4838	51
03205-T4		5	3. 175	50	80	12	52	65	62	9	M6	4x1	1922	6343	54
03206-T4		6	3. 969	50	80	12	57	65	62	9	M6	4x1	2632	7979	57
03208-T4		8	4. 762	50	80	12	65	65	62	9	M6	4x1	3387	9622	60
03210-T4		10	6. 350	50	80	12	90	65	62	9	M6	4x1	4805	12208	61
04005-T4	40	5	3. 175	63	93	14	55	78	70	9	M8	4x1	2110	7988	63
04006-T4		6	3. 969	63	93	14	60	78	70	9	M6	4x1	2873	9913	66
04008-T4		8	4. 762	63	93	14	67	78	70	9	M6	4x1	3714	11947	70
04010-T4		10	6. 350	63	93	14	93	78	70	9	M8	4x1	5399	15500	73
05010-T4	50	10	6. 350	75	110	16	93	93	85	11	M8	4x1	6004	19614	85
05020-T4	50	20	7. 144	75	110	16	138	93	85	11	M8	4x1	7142	22588	94
06310-T4	63	10	6. 350	90	125	18	98	108	95	11	M8	4x1	6719	25358	99
06320-T4	63	20	9. 525	95	135	20	149	115	100	13.5	M8	4x1	11444	36653	112
08010-T4	80	10	6. 350	105	145	20	98	125	110	13.5	M8	4x1	7346	31953	109
08020-T4	80	20	9. 525	125	165	25	154	145	130	13.5	M8	4x1	12911	47747	138
10020-T4	100	20	9. 525	150	202	30	180	170	155	17.5	M8	4x1	14303	60698	162

Feature of Ball Screw-Internal Return Series
1. Internal return design saves more space.
2. High accuracy guaranteed.
3. Fine feed, can be controlled within 0.1μm.
4. No backlash, High rigidity.
