| Place of Origin | China |
| Brand Name | ZANE |
| Certification | CE，ISO |

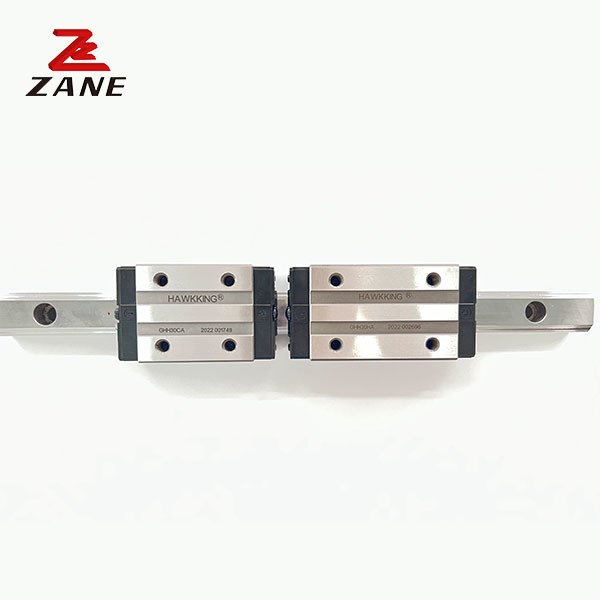

Precision Mini Linear Rail Guide Slide Carriage Blocks for Dispensing machine
The spacing of each hole is 25mm, the number of holes for different lengths of rails:
200mm (8 holes), 250mm (10 holes), 300mm (12 holes), 350mm (14 holes)
400mm (16 holes), 450mm (18 holes), 500mm (20 holes), 550mm (22 holes)
2-7-2 GMW-CA/GMW-HA
| Model | Combination size (mm) | Block size(mm) | Slide rail size(mm) | Rated dynamic load | Rated static load |
Allowable static moment Kgf*M
(kgf • m) |
Sliding rail fastening bolt dimensions (mm) |
||||||||||||||||
| H | Hi | N | W | B | Bl | C | Ll | L | MxL | Wr | Hr | D | h | d | P | E | C(kgf) | C(kgf) | Mr | MP | My | ||
| GMW3CA | 4.5 | 1 | 3 | 12 | - | - | 4.5 | 9.8 | 15 | M2xl.6 | 6 | 2.8 | 4 | 1.5 | 2.4 | 15 | 10 | 29 | 54 | 0.16 | 0.09 | 0. 09 | M2x4 |
| GMW3HA | 8 | 14.6 | 20 | 38 | 91 | 0. 26 | 0.19 | 0. 19 | |||||||||||||||
| GMW5CA | 6.5 | 1.5 | 3.5 | 17 | 13 | 2 | - | 13.6 | 20.5 | M2.5x1.5 | 10 | 4 | 4.8 | 1.6 | 2.9 | 20 | 10 | 48 | 92 | 0.47 | 0. 22 | 0. 22 | M2. 5x7 |
| GMW5HA | - | 17.6 | 24.5 | 63 | 134 | 0.7 | 0.42 | 0.42 | |||||||||||||||
| GMW7CA | 9 | 2 | 5.5 | 25 | 19 | 3 | 10 | 22 | 31.5 | M3x3 | 14 | 5.5 | 6 | 3.2 | 3.5 | 30 | 15 | 140 | 210 | 1.6 | 0. 73 | 0. 73 | M3x8 |
| GMW7HA | 19 | 32.5 | 42 | 180 | 320 | 2. 39 | L 58 | 1.58 | |||||||||||||||
| GMW9CA | 12 | 3 | 6 | 30 | 21 | 4.5 | 12 | 28.6 | 38.5 | M3x3 | 18 | 7 | 6.5 | 45 | 3.5 | 30 | 15 | 280 | 420 | 4.09 | 1.93 | 1.93 | M3x8 |
| GMW9HA | 23 | 3.5 | 24 | 40.4 | 50.5 | 350 | 600 | 5. 56 | 3.47 | 3.47 | |||||||||||||
| GMW12CA | 14 | 3 | 8 | 40 | 28 | 6 | 15 | 31 | 44 | M3x3.5 | 24 | 8 | 8 | 45 | 4.5 | 40 | 20 | 400 | 570 | 7.17 | 2.83 | 2.83 | M4xl0 |
| GMW12HA | 28 | 46.3 | 59 | 520 | 840 | 10. 47 | 5. 85 | 5. 85 | |||||||||||||||
| GMW15CA | 16 | 4 | 9 | 60 | 45 | 7.5 | 20 | 39.4 | 55 | M4x4.5 | 42 | 10 | 8 | 4.5 | 4.5 | 40 | 20 | 690 | 940 | 20.3 | 5. 78 | 5. 78 | M4xl2 |
| GMW15HA | 35 | 58.7 | 74.5 | 910 | 1410 | 30.48 | 12.5 | 12.5 | |||||||||||||||
ps:1 kgf= 9.81 N
