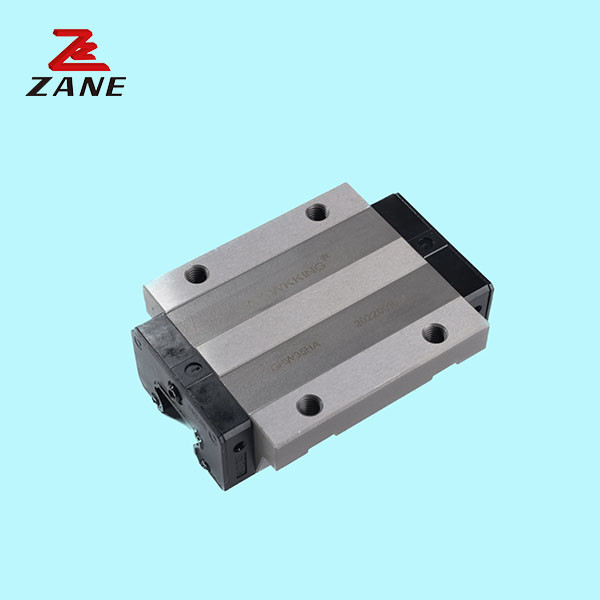

Precision Mini Linear Rail Guide Slide Carriage Blocks for Dispensing machine GMH Series
2-7-1 GMH-CA/GMH-HA/GMH-SA
| Model | Combination size (mm) | Block size(mm) | Slide rail size(mm) | Rated dynamic load | Rated static load |
Allowable static moment Kgf*M
(kgf • m) |
Sliding rail fastening bolt dimensions (mm) |
||||||||||||||||
| H | Hl | N | W | B | Bl | c | L1 | L | MxL | Wr | Hr | D | h | d | P | E | C(kgf) | C(kgf) | Mr | Mp | My | ||
| GMH3CA | 4 | 1 | 2.5 | 8 | - | - | 3.5 | 6.7 | 11.5 | Ml. 6x1. 3 | 3 | 2.6 | - | - | Ml. 6 | 10 | 5 | 19 | 32 | 0. 06 | 0. 04 | 0. 04 | M1.6xL |
| GMH3HA | 5.5 | 10.7 | 15.5 | M2xl. 3 | 3 | 30 | 58 | 0.09 | 0.11 | 0. 11 | |||||||||||||
| GMH5CA | 6 | 1 | 3.5 | 12 | 8 | 2 | - | 9.6 | 16 | M2xl. 5 | 5 | 3.7 | 3.6 | 0.8 | 2.4 | 15 | 7.5 | 34 | 56 | 0.17 | 0.1 | 0.1 | M2X6 |
| GMH5HA | 8 | - | 12.6 | 19 | 45 | 92 | 0. 24 | 0.21 | 0.21 | ||||||||||||||
| GMH7CA | 8 | 1.5 | 5 | 17 | 12 | 2.5 | 8 | 14.3 | 23.5 | M2x2. 5 | 7 | 5 | 4.2 | 2.3 | 2.4 | 15 | 7.5 | 100 | 127 | 0.48 | 0. 29 | 0. 29 | M2X6 |
| GMH7HA | 12 | 21.6 | 31 | 140 | 200 | 0. 78 | 0.9 | 0.49 | |||||||||||||||
| GMH7SA | - | 9.6 | 19 | 96 | 116 | 0. 42 | 0.18 | 0.15 | |||||||||||||||
| GMH9CA | 10 | 2 | 5.5 | 20 | 15 | 2.5 | 10 | 20.8 | 30 | M3x3 | 9 | 6 | 6 | 3.5 | 3.5 | 20 | 10 | 190 | 260 | 1.2 | 0. 75 | 0. 75 | M3X8 |
| GMH9HA | 15 | 30.9 | 40.5 | 260 | 410 | 2 | 1.9 | 1.9 | |||||||||||||||
| GMH9SA | - | 11.9 | 21.5 | 120 | 151 | 0.7 | 0.3 | 0. 24 | |||||||||||||||
| GMH12CA | 13 | 3 | 7.5 | 27 | 20 | 3.5 | 15 | 21.6 | 34 | M3x3. 5 | 12 | 8 | 6.5 | 4.5 | 3.5 | 25 | 12.5 | 290 | 400 | 2.6 | 1.4 | 1.4 | M3X8 |
| GMH12HA | 20 | 32 | 44 | 380 | 600 | 3.9 | 3.7 | 3.7 | |||||||||||||||
| GMH12SA | - | 13 | 25 | 225 | 243 | 1.5 | 0. 53 | 0.46 | |||||||||||||||
| GMH15CA | 16 | 4 | 8.5 | 32 | 25 | 3.5 | 20 | 27.9 | 42 | M3x4 | 15 | 10 | 6.5 | 4.5 | 3.5 | 40 | 20 | 470 | 570 | 4.6 | 2.2 | 2.2 | M3X10 |
| GMH15HA | 25 | 42.8 | 57 | 650 | 930 | 7.5 | 5.9 | 5.9 | |||||||||||||||
| GMH15SA | - | 17.7 | 32 | 356 | 397 | 3.1 | 1.2 | 1 | |||||||||||||||
| GMH20CA | 20 | 5 | 10 | 10 | 30 | 5 | 25 | 34.6 | 50 | M4x6 | 20 | 11 | 9.5 | 5.5 | 6 | 60 | 30 | 678 | 926 | 9.4 | 5.4 | 4.5 | M5X14 |
| GMH20HA | 30 | 52.3 | 68 | 868 | 1316 | 13.4 | 10.4 | 8.7 | |||||||||||||||
| GMH20SA | - | 22.3 | 38 | 467 | 540 | 5.5 | 2 | 1.7 | |||||||||||||||
