Linear Guide Slide
>
|
| Place of Origin | China |
| Brand Name | ZANE |
| Certification | CE，ISO |
| Model Number | ZANE-ghw |

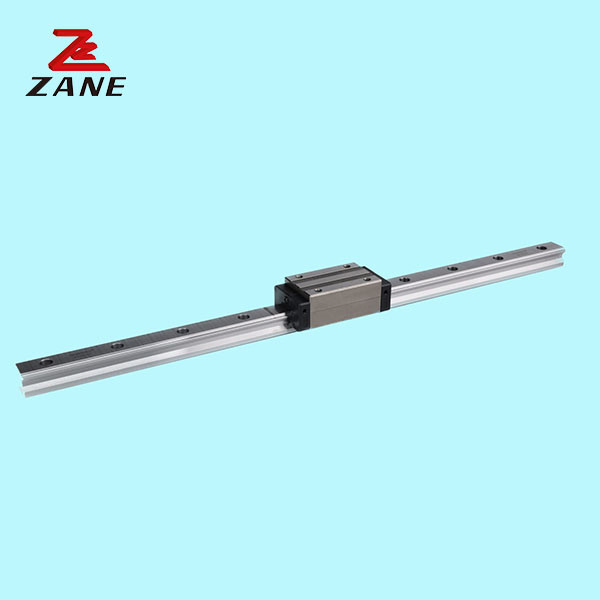

20mm linear guides can replace HIWIN HGW20 and slide block
The stainless steel material guide rail has good hardness and wear resistance, and the pressure resistance makes the German Rexroth linear guide can withstand the force from different directions, and has good load bearing capacity and good load adaptability. Stainless steel rails are positioned accurately. The German Rexroth linear guides are less subject to frictional resistance when positioning with steel balls, which makes it less prone to positional deviation during positioning, and has high repeatability and is suitable for parts requiring frequent positioning.
| Model | Combination size (mm) | Block size(mm) | Slide rail size(mm) | Fixing bolts for slide rails | Basic dynamic fixed load | Basic fixed fixed load | Allowable static moment | weight | ||||||||||||||||||||||||||
| Mr kN-m | Mp | My kN-m | block | slide | ||||||||||||||||||||||||||||||
| H | Hi | N | W | B | Bi | c | U | L | Kl | G | M (A/B) | T | Ti | h2 | h3 | Wr | Hr | D | h | d | P | E | (mm) | C(kN) | C0(kN) | |||||||||
| GHW15CA | 24 | 4.3 | 16 | 47 | 38 | 4.5 | 30 | 39.4 | 61.4 | 8 | 5.3 | M5/ φ4.5 | 6 | 8.9 | 3.95 | 3.7 | 15 | 15 | 7.5 | 5.3 | 4.5 | 60 | 20 | M4xl6 | 11. 38 | 25.31 | 0.17 | 0.15 | 0.15 | 0.17 | 1.45 | |||
| GHW20CA | 30 | 4.6 | 21.5 | 63 | 53 | 5 | 40 | 50.5 | 77.5 | 10.25 | 12 | M6/φ6 | 8 | 10 | 6 | 7 | 20 | 17.5 | 9.5 | 8.5 | 6 | 60 | 20 | M5xl6 | 17.75 | 37.84 | 0.38 | 0.27 | 0.27 | 0.40 | 2.21 | |||
| GHW20HA | 65.2 | 92.2 | 17.6 | 21.18 | 48.84 | 0.48 | 0.47 | 0.47 | 0.52 | |||||||||||||||||||||||||
| GHW25CA | 36 | 5.5 | 23.5 | 70 | 57 | 6.5 | 45 | 58 | 84 | 11.8 | 12 | M8/φ77 | 8 | 14 | 6 | 9 | 23 | 22 | 11 | 9 | 7 | 60 | 20 | M6x20 | 26.48 | 56.19 | 0.64 | 0.51 | 0.51 | 0.59 | 3.21 | |||
| GHW25HA | 78.6 | 104.6 | 22.1 | 32.75 | 76.00 | 0.87 | 0.88 | 0.88 | 0.80 | |||||||||||||||||||||||||
| GHW30CA | 42 | 6 | 31 | 90 | 72 | 9 | 52 | 70 | 97.4 | 14.25 | 12 | M10/φ9 | 8.5 | 16 | 6.5 | 10.8 | 28 | 26 | 14 | 12 | 9 | 80 | 20 | M8x25 | 38.74 | 83.06 | 1.06 | 0.85 | 0.85 | 1.09 | 4.47 | |||
| GHW30HA | 93 | 120.4 | 25.75 | 47.27 | 110.13 | 1.40 | 1.47 | 1.47 | 1.44 | |||||||||||||||||||||||||
| GHW35CA | 48 | 7.5 | 33 | 100 | 82 | 9 | 62 | 80 | 112.4 | 14.6 | 12 | M10/φ9 | 10.1 | 18 | 9 | 12.6 | 34 | 29 | 14 | 12 | 9 | 80 | 20 | M8x25 | 49.52 | 102.87 | 1.73 | 1.20 | 1.20 | 1.56 | 6.30 | |||
| GHW35HA | 105.8 | 138.2 | 27.5 | 60.21 | 136.31 | 2.29 | 2.08 | 2.08 | 2.06 | |||||||||||||||||||||||||
| GW45CA | 60 | 9.5 | 37.5 | 120 | 100 | 10 | 80 | 97 | 139.4 | 13 | 12.9 | M12/φ11 | 15.1 | 22 | 8.5 | 20.5 | 45 | 38 | 20 | 17 | 14 | 105 | 22.5 | M12x35 | 77.57 | 155.93 | 3.01 | 2.35 | 2.35 | 2.79 | 10.41 | |||
| GHW45HA | 128.8 | 171.2 | 28.9 | 94.54 | 207.12 | 4.00 | 4.07 | 4.07 | 369 | |||||||||||||||||||||||||
| GHW55CA | 70 | 13 | 43.5 | 140 | 116 | 12 | 95 | 117.7 | 166.7 | 17.35 | 12.9 | M14/φ14 | 17.5 | 26.5 | 12 | 19 | 53 | 44 | 23 | 20 | 16 | 120 | 30 | M14x45 | 114.44 | 227.81 | 5.66 | 4.06 | 4.06 | 4.52 | 15.08 | |||
| GHW55HA | 155.8 | 204.8 | 36.4 | 139.35 | 301.26 | 7.49 | 7.01 | 7.01 | 5.96 | |||||||||||||||||||||||||
| GHW65CA | 90 | 15 | 53.5 | 170 | 142 | 14 | 110 | 144.2 | 200.2 | 23.1 | 12.9 | M16/φ16 | 25 | 37.5 | 15 | 15 | 63 | 53 | 26 | 22 | 18 | 150 | 35 | M16x50 | 163.63 | 324.71 | 10.02 | 6.44 | 6.44 | 9.17 | 21.18 | |||
| GHW65HA | 203.6 | 259.6 | 52.8 | 208.36 | 457.15 | 14.15 | 11.12 | 11.12 | 12.89 | |||||||||||||||||||||||||
