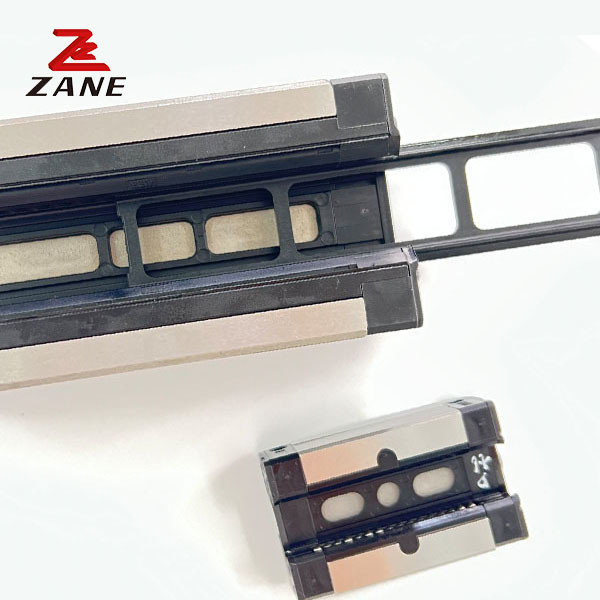

Precision Mini Linear Rail Guide Slide Carriage Blocks for Dispensing machine
High positioning accuracy
When using linear guides as linear guides, since the friction method of linear guides is rolling friction, not only the friction coefficient is reduced to 1/50 of that of sliding guides, but the gap between dynamic friction and static friction is also small. Therefore, when the bed is running, there will be no slippage, and the positioning accuracy of the same level can be achieved.
The spacing of each hole is 25mm, the number of holes for different lengths of rails:
200mm (8 holes), 250mm (10 holes), 300mm (12 holes), 350mm (14 holes)
400mm (16 holes), 450mm (18 holes), 500mm (20 holes), 550mm (22 holes)
2-7-2 GMW-CA/GMW-HA
| Model | Combination size (mm) | Block size(mm) | Slide rail size(mm) | Rated dynamic load | Rated static load |
Allowable static moment Kgf*M
(kgf • m) |
Sliding rail fastening bolt dimensions (mm) |
||||||||||||||||
| H | Hi | N | W | B | Bl | C | Ll | L | MxL | Wr | Hr | D | h | d | P | E | C(kgf) | C(kgf) | Mr | MP | My | ||
| GMW3CA | 4.5 | 1 | 3 | 12 | - | - | 4.5 | 9.8 | 15 | M2xl.6 | 6 | 2.8 | 4 | 1.5 | 2.4 | 15 | 10 | 29 | 54 | 0.16 | 0.09 | 0. 09 | M2x4 |
| GMW3HA | 8 | 14.6 | 20 | 38 | 91 | 0. 26 | 0.19 | 0. 19 | |||||||||||||||
| GMW5CA | 6.5 | 1.5 | 3.5 | 17 | 13 | 2 | - | 13.6 | 20.5 | M2.5x1.5 | 10 | 4 | 4.8 | 1.6 | 2.9 | 20 | 10 | 48 | 92 | 0.47 | 0. 22 | 0. 22 | M2. 5x7 |
| GMW5HA | - | 17.6 | 24.5 | 63 | 134 | 0.7 | 0.42 | 0.42 | |||||||||||||||
| GMW7CA | 9 | 2 | 5.5 | 25 | 19 | 3 | 10 | 22 | 31.5 | M3x3 | 14 | 5.5 | 6 | 3.2 | 3.5 | 30 | 15 | 140 | 210 | 1.6 | 0. 73 | 0. 73 | M3x8 |
| GMW7HA | 19 | 32.5 | 42 | 180 | 320 | 2. 39 | L 58 | 1.58 | |||||||||||||||
| GMW9CA | 12 | 3 | 6 | 30 | 21 | 4.5 | 12 | 28.6 | 38.5 | M3x3 | 18 | 7 | 6.5 | 45 | 3.5 | 30 | 15 | 280 | 420 | 4.09 | 1.93 | 1.93 | M3x8 |
| GMW9HA | 23 | 3.5 | 24 | 40.4 | 50.5 | 350 | 600 | 5. 56 | 3.47 | 3.47 | |||||||||||||
| GMW12CA | 14 | 3 | 8 | 40 | 28 | 6 | 15 | 31 | 44 | M3x3.5 | 24 | 8 | 8 | 45 | 4.5 | 40 | 20 | 400 | 570 | 7.17 | 2.83 | 2.83 | M4xl0 |
| GMW12HA | 28 | 46.3 | 59 | 520 | 840 | 10. 47 | 5. 85 | 5. 85 | |||||||||||||||
| GMW15CA | 16 | 4 | 9 | 60 | 45 | 7.5 | 20 | 39.4 | 55 | M4x4.5 | 42 | 10 | 8 | 4.5 | 4.5 | 40 | 20 | 690 | 940 | 20.3 | 5. 78 | 5. 78 | M4xl2 |
| GMW15HA | 35 | 58.7 | 74.5 | 910 | 1410 | 30.48 | 12.5 | 12.5 | |||||||||||||||
ps:1 kgf= 9.81 N
