| Place of Origin | China |
| Brand Name | ZANE |
| Certification | CE，ISO |
| Model Number | GHH-CA/GHH-HA |

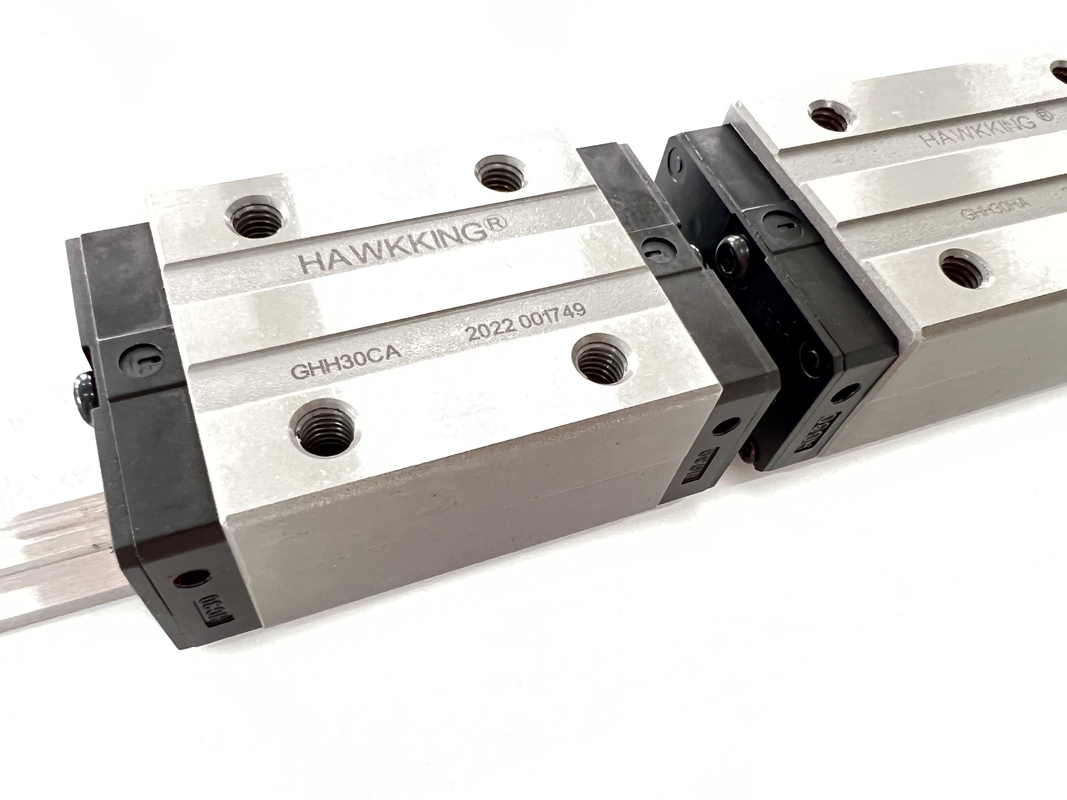

High Accuracy Customized Length Linear Guides HGH15 HGH20 HGH25 HGH30
Where are Linear Guides Used?
Linear guides are used in a wide range of industrial and manufacturing applications. You will commonly see linear guides of all sizes and styles used in CNC machines and 3D printers, including in smaller home printers and larger industrial printers. In these applications, linear slides are often used to position a tool or base plate inside of the machine. While actuating is done by another component, the linear guide carries the weight of the tool or base plate and protects the actuating component from improper loading. Linear guides are also used in robotic applications and designs like with the Gantry (also called Cartesian) robots and with overhead transport systems. There are tons of applications where linear guides are used to support heavy loads and ensure smooth linear motion.
| Model | Combination size (mm) | Block size(mm) | Slide rail size(mm) |
Fixing bolts for slide rails size |
Basic dynamic fixed load | Basic fixed fixed load | Allowable static moment | weight | ||||||||||||||||||||||
|
Mr kN^n |
MP kNf |
My kNF |
block kg |
slide kg/n |
||||||||||||||||||||||||||
| H | HI | N | W | B | BI | C | Li | L | KI | G | Mxl | T | h2 | h3 | WR | HR | D | h | d | P | E | (mm) | C(kN) | Co(kN) | ||||||
| GHH15CA | 28 | 4.3 | 9.5 | 34 | 26 | 4 | 26 | 39.4 | 61.4 | 10 | 5.3 | M4x5 | 6 | 7.95 | 7.7 | 15 | 15 | 7.5 | 5.3 | 4.5 | 60 | 20 | M4xl6 | 11.38 | 25.31 | 0.17 | 0.15 | 0.15 | 0.18 | 1.45 |
| GHH20CA | 30 | 4.6 | 12 | 44 | 32 | 6 | 36 | 50.5 | 77.5 | 12.25 | 12 | M5x6 | 8 | 6 | 7 | 20 | 17.5 | 9.5 | 8.5 | 6 | 60 | 20 | M5xl6 | 17.75 | 37.84 | 0.38 | 0.27 | 0.27 | 0.30 | 2.21 |
| GHH20HA | 50 | 65.2 | 92.2 | 12.6 | 21.18 | 48.84 | 0.48 | 0.47 | 0.47 | 0.39 | ||||||||||||||||||||
| GHH25CA | 40 | 5.5 | 48 | 35 | 6.5 | 35 | 58 | 84 | 16.8 | 12 | M6x8 | 8 | 10 | 23 | 22 | 11 | 9 | 7 | 60 | 20 | M6x20 | 26.48 | 56.19 | 0.64 | 0.51 | 0.51 | 0. 51 | 3.21 | ||
| GHH25HA | 12.5 | 50 | 78.6 | 104.6 | 19.6 | 32. 75 | 76.00 | 0.87 | 0.88 | 0.88 | 0.69 | |||||||||||||||||||
| GHH30CA | 45 | 6 | 16 | 60 | 40 | 10 | 40 | 70 | 97.4 | 20.25 | 12 | M8xl0 | 8.5 | 9.5 | 28 | 26 | 14 | 12 | 9 | 80 | 20 | 38.74 | 83.06 | 1.06 | 0.85 | 0.85 | 0.88 | 4. 47 | ||
| GHH30HA | 60 | 93 | 120.4 | 21.75 | 13.8 | M8x2ij | 47.27 | 110.13 | 1.40 | 1.47 | 1.47 | 1.16 | ||||||||||||||||||
| GHH35CA | 55 | 18 | 70 | 50 | 10 | 50 | 80 | 112.4 | 20.6 | 12 | 16 | 19.6 | 34 | 29 | 14 | 12 | 9 | 80 | 20 | 49.52 | 102.87 | 1.73 | 1.20 | 1. 20 | 1.45 | 6. 30 | ||||
| GHH35HA | 1.5 | 72 | 105.8 | 138.2 | 22.5 | M8xl2 | 60.21 | 136.31 | 2.29 | 2.08 | 2.08 | 1.92 | ||||||||||||||||||
| GHH45CA | 70 | 9.5 | 86 | 60 | 13 | 60 | 97 | 139.4 | 23 | M10xl7 | 16 | 45 | 38 | 20 | 17 | 14 | 105 | M12x35 | 77.57 | 155.93 | 3.01 | 2.35 | 2.35 | 2.73 | 10.41 | |||||
| GHH45HA | 20.5 | 80 | 128.8 | 171.2 | 28.9 | L8. | 30.5 | 22.5 | 94.54 | 207.12 | 4.00 | 4.07 | 4.07 | 3.61 | ||||||||||||||||
| GHH55CA | 80 | 100 | 75 | 75 | 117.7 | 166.7 | 27.35 | M12xl8 | 22 | 29 | 53 | 44 | 23 | 20 | 16 | 120 | 30 | M14x45 | 114.44 | 227. 81 | 5.66 | 4.06 | 4.06 | 4.17 | 15.08 | |||||
| GHH55HA | 13 | 23. 5 | 12. 5 | 95 | 155.8 | 204.8 | 36.4 | 12.9 | 139.35 | 301.26 | 7.49 | 7.01 | 7.01 | 5.49 | ||||||||||||||||
| GHH65CA | 90 | 15 | 126 | 76 | 25 | 70 | 144.2 | 200.2 | 43.1 | 25 | 15 | 15 | 63 | 53 | 26 | 22 | 18 | 150 | 35 | M16x50 | 163.63 | 324.71 | 10.02 | 6.44 | 6.44 | 7.00 | 21.18 | |||
| GHH65HA | 31.5 | 120 | 203.6 | 259.6 | 47.8 | 12.9 | M16x20 | 208.36 | 457.15 | 14.15 | 11.12 | 11.12 | 9.82 | |||||||||||||||||
Tips for ordering linear guide and linear guide blocks:
(1) Tell us the width of linear guide: e.g. 9mm
(2) What is the size code of linear guide blocks, pls? E.g. MGN9C, HGH15CA and etc.
(3) What is the linear guide length you need, and how many guide blocks in one linear guide, pls? E.g. MNG91R80MM; 1 pcs of blocks on the 80mm linear guide
EGW15CA EGW20CA EGW25CA EGW30CA EGW15SA EGW20SA EGW25SA EGW30SA
Our advantages for Linear guide HG series:
1. Complete sliding units system with high accuracy and can be moved without deflection.
2. Long life use.
3. Prompt delivery and good service.
4. Large stock and low batch wholesale.
5. ISO9001:2008
6. Competitive price, good quality, delivery fast.
7. Fast response to e-mails or solving questions quickly.
8. Honest cooperation and service.
