Linear Motion Guide
>
|
| Place of Origin | China |
| Brand Name | ZANE |
| Certification | CE,ISO |
| Model Number | GEH15SA |

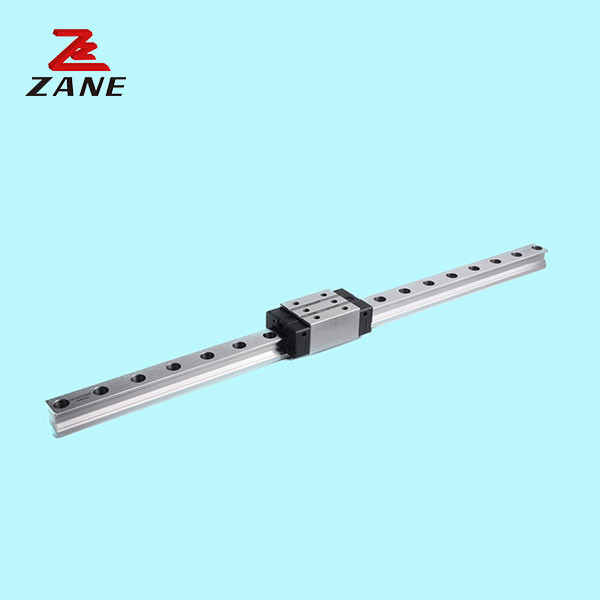

Linear Motion Guide is a reliable and high-performance product that offers superior accuracy and low noise levels. Made with premium stainless steel material, this product is designed with a low maintenance requirement and offers a high speed of operation. It provides users with a smooth and efficient motion system and can be used in a variety of applications. The linear guide ensures maximum accuracy and low noise levels for superior performance. The stainless steel material makes the product resistant to corrosion and wear and tear, and its low maintenance requirements make it even more cost-effective. It can be used in a variety of applications due to its high speed, low noise level, and superior accuracy. With its robust construction and durability, the Linear Motion Guide is an ideal choice for your motion control needs.
| Model | Combination size (mm) | Block size(mm) | Slide rail size(mm) | Fixing bolts for slide rails | Basic dynamic fixed load | Basic fixed fixed load | Allowable static moment | weight | |||||||||||||||||||||||||
| Mr kN-m | Mp | My kN-m | block | slide | |||||||||||||||||||||||||||||
| H | Hi | N | W | B | Bi | C | Li | L | Ki | Ki | G | Mxl | T | H2 | h3 | w/ | Hr | D | h | d | P | E | (mm ) | C(kN) | Co(kN) | ||||||||
| GEH15SA | 24 | 4.5 | 9.5 | 34 | 26 | 4 | - | 23.1 | 40.1 | 14.8 | 3.5 | 5.7 | M4x6 | 6 | 5.5 | 6 | 15 | 12.5 | 6 | 4.5 | 3.5 | 60 | 20 | M3xl6 | 5.35 | 9.40 | 0.08 | 0.04 | 0.04 | 0.09 | 1.25 | ||
| GEH15CA | 26 | 39.8 | 56.8 | 10.15 | 7.83 | 16.19 | 0.13 | 0.10 | 0.10 | 0.15 | |||||||||||||||||||||||
| GEH20SA | 28 | 6 | 11 | 42 | 32 | 5 | - | 29 | 50 | 18.75 | 4.15 | 12 | M5x7 | 7.5 | 6 | 6 | 20 | 15.5 | 9.5 | 8.5 | 6 | 60 | 20 | M5xl6 | 7.23 | 12.74 | 0.13 | 0.06 | 0.06 | 0.15 | 2.08 | ||
| GEH20CA | 32 | 48.1 | 69.1 | 12.3 | 10.31 | 21.13 | 0.22 | 0.16 | 0.16 | 0.24 | |||||||||||||||||||||||
| GEH25SA | 33 | 7 | 12.5 | 48 | 35 | 6.5 | - | 35.5 | 59.1 | 21.9 | 4.55 | 12 | M6x9 | 8 | 8 | 8 | 23 | 18 | 11 | 9 | 7 | 60 | 20 | M6x20 | 11.40 | 19.50 | 0.23 | 0.12 | 0.12 | 0.25 | 2.67 | ||
| GEH25CA | 35 | 59 | 82.6 | 16.15 | 16.27 | 32.40 | 0.38 | 0.32 | 0.32 | 0.41 | |||||||||||||||||||||||
| GEH30SA | 42 | 10 | 16 | 60 | 40 | 10 | - | 41.5 | 69.5 | 26.75 | 6 | 12 | M3xl2 | 9 | 8 | 9 | 28 | 23 | 11 | 9 | 7 | 80 | 20 | M6x25 | 16.42 | 28.10 | 0.40 | 0.21 | 0.21 | 0.45 | 4.35 | ||
| GEH30CA | 40 | 70.1 | 98.1 | 21.05 | 23.70 | 47.46 | 0.68 | 0.55 | 0.55 | 0.76 | |||||||||||||||||||||||
| GEH35SA | 48 | 11 | 18 | 70 | 50 | 10 | - | 45 | 75 | 28.5 | 7 | 12 | M8xl2 | 10 | 8.5 | 8.5 | 34 | 27.5 | 14 | 12 | 9 | 80 | 20 | M8x25 | 16.42 | 28.10 | 0.40 | 0.21 | 0.21 | 0.45 | 6.14 | ||
| GEH35CA | 50 | 78 | 108 | 20 | 33.35 | 64.84 | 0.98 | 0.69 | 0.69 | 1.13 | |||||||||||||||||||||||
1.Industrial Machinery: Linear guides are commonly used in various types of industrial equipment and machinery, such as CNC machines, assembly lines, packaging machines, and printing presses. They provide precise linear motion and help to improve the accuracy and efficiency of these machines.
2.Transportation: Linear guides are also used in the transportation industry, particularly in the automotive and aerospace sectors. They can be found in engine components, suspension systems, and steering mechanisms, where they help to ensure smooth and reliable movement.
3.Construction Equipment: Linear guides are often used in construction equipment such as cranes, excavators, and bulldozers. They help to control the movement of the equipment and improve its precision and stability.
4.Consumer Electronics: Linear guides can also be found in various home appliances, such as sliding doors, curtains, air conditioners, and washing machines. In these applications, they provide smooth and effortless movement, as well as noise reduction.
