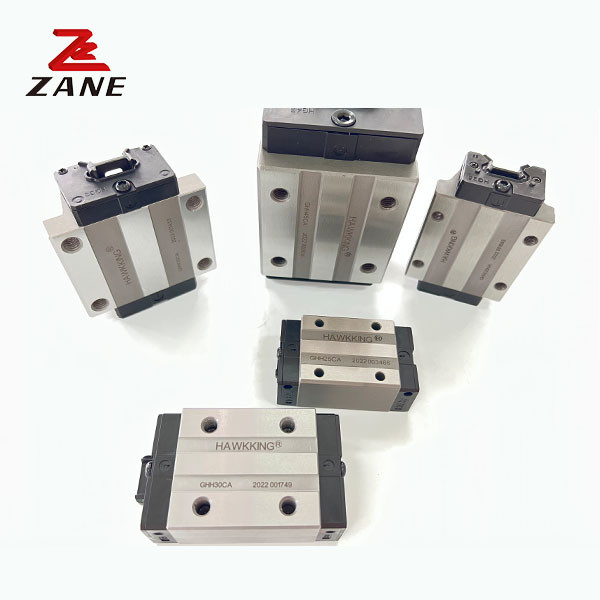

stainless steel Customized Length Linear Guides HGH35 linear rails block
Linear guide accuracy class also plays an important part in the bearing’s travel behavior, which is the performance characteristic that most people associate with the term “accuracy.”
Regardless of size, preload, or mounting configuration, specification 5—parallelism between the reference edges of the rail and the block—plays a large part in determining the travel accuracy of the guide system. This parallelism tolerance specifies how the bearing block will behave positionally as it moves down the rail. In other words, does the bearing block seem to deviate side-to-side or up-and-down as it travels?
| Model | Combination size (mm) | Block size(mm) | Slide rail size(mm) |
Fixing bolts for slide rails size |
Basic dynamic fixed load | Basic fixed fixed load | Allowable static moment | weight | ||||||||||||||||||||||
|
Mr kN^n |
MP kNf |
My kNF |
block kg |
slide kg/n |
||||||||||||||||||||||||||
| H | HI | N | W | B | BI | C | Li | L | KI | G | Mxl | T | h2 | h3 | WR | HR | D | h | d | P | E | (mm) | C(kN) | Co(kN) | ||||||
| GHH15CA | 28 | 4.3 | 9.5 | 34 | 26 | 4 | 26 | 39.4 | 61.4 | 10 | 5.3 | M4x5 | 6 | 7.95 | 7.7 | 15 | 15 | 7.5 | 5.3 | 4.5 | 60 | 20 | M4xl6 | 11.38 | 25.31 | 0.17 | 0.15 | 0.15 | 0.18 | 1.45 |
| GHH20CA | 30 | 4.6 | 12 | 44 | 32 | 6 | 36 | 50.5 | 77.5 | 12.25 | 12 | M5x6 | 8 | 6 | 7 | 20 | 17.5 | 9.5 | 8.5 | 6 | 60 | 20 | M5xl6 | 17.75 | 37.84 | 0.38 | 0.27 | 0.27 | 0.30 | 2.21 |
| GHH20HA | 50 | 65.2 | 92.2 | 12.6 | 21.18 | 48.84 | 0.48 | 0.47 | 0.47 | 0.39 | ||||||||||||||||||||
| GHH25CA | 40 | 5.5 | 48 | 35 | 6.5 | 35 | 58 | 84 | 16.8 | 12 | M6x8 | 8 | 10 | 23 | 22 | 11 | 9 | 7 | 60 | 20 | M6x20 | 26.48 | 56.19 | 0.64 | 0.51 | 0.51 | 0. 51 | 3.21 | ||
| GHH25HA | 12.5 | 50 | 78.6 | 104.6 | 19.6 | 32. 75 | 76.00 | 0.87 | 0.88 | 0.88 | 0.69 | |||||||||||||||||||
| GHH30CA | 45 | 6 | 16 | 60 | 40 | 10 | 40 | 70 | 97.4 | 20.25 | 12 | M8xl0 | 8.5 | 9.5 | 28 | 26 | 14 | 12 | 9 | 80 | 20 | 38.74 | 83.06 | 1.06 | 0.85 | 0.85 | 0.88 | 4. 47 | ||
| GHH30HA | 60 | 93 | 120.4 | 21.75 | 13.8 | M8x2ij | 47.27 | 110.13 | 1.40 | 1.47 | 1.47 | 1.16 | ||||||||||||||||||
| GHH35CA | 55 | 18 | 70 | 50 | 10 | 50 | 80 | 112.4 | 20.6 | 12 | 16 | 19.6 | 34 | 29 | 14 | 12 | 9 | 80 | 20 | 49.52 | 102.87 | 1.73 | 1.20 | 1. 20 | 1.45 | 6. 30 | ||||
| GHH35HA | 1.5 | 72 | 105.8 | 138.2 | 22.5 | M8xl2 | 60.21 | 136.31 | 2.29 | 2.08 | 2.08 | 1.92 | ||||||||||||||||||
| GHH45CA | 70 | 9.5 | 86 | 60 | 13 | 60 | 97 | 139.4 | 23 | M10xl7 | 16 | 45 | 38 | 20 | 17 | 14 | 105 | M12x35 | 77.57 | 155.93 | 3.01 | 2.35 | 2.35 | 2.73 | 10.41 | |||||
| GHH45HA | 20.5 | 80 | 128.8 | 171.2 | 28.9 | L8. | 30.5 | 22.5 | 94.54 | 207.12 | 4.00 | 4.07 | 4.07 | 3.61 | ||||||||||||||||
| GHH55CA | 80 | 100 | 75 | 75 | 117.7 | 166.7 | 27.35 | M12xl8 | 22 | 29 | 53 | 44 | 23 | 20 | 16 | 120 | 30 | M14x45 | 114.44 | 227. 81 | 5.66 | 4.06 | 4.06 | 4.17 | 15.08 | |||||
| GHH55HA | 13 | 23. 5 | 12. 5 | 95 | 155.8 | 204.8 | 36.4 | 12.9 | 139.35 | 301.26 | 7.49 | 7.01 | 7.01 | 5.49 | ||||||||||||||||
| GHH65CA | 90 | 15 | 126 | 76 | 25 | 70 | 144.2 | 200.2 | 43.1 | 25 | 15 | 15 | 63 | 53 | 26 | 22 | 18 | 150 | 35 | M16x50 | 163.63 | 324.71 | 10.02 | 6.44 | 6.44 | 7.00 | 21.18 | |||
| GHH65HA | 31.5 | 120 | 203.6 | 259.6 | 47.8 | 12.9 | M16x20 | 208.36 | 457.15 | 14.15 | 11.12 | 11.12 | 9.82 | |||||||||||||||||
Tips for ordering linear guide and linear guide blocks:
(1) Tell us the width of linear guide: e.g. 9mm
(2) What is the size code of linear guide blocks, pls? E.g. MGN9C, HGH15CA and etc.
(3) What is the linear guide length you need, and how many guide blocks in one linear guide, pls? E.g. MNG91R80MM; 1 pcs of blocks on the 80mm linear guide
EGW15CA EGW20CA EGW25CA EGW30CA EGW15SA EGW20SA EGW25SA EGW30SA
Our advantages for Linear guide HG series:
1. Complete sliding units system with high accuracy and can be moved without deflection.
2. Long life use.
3. Prompt delivery and good service.
4. Large stock and low batch wholesale.
5. ISO9001:2008
6. Competitive price, good quality, delivery fast.
7. Fast response to e-mails or solving questions quickly.
8. Honest cooperation and service.
Contact Us at Any Time
