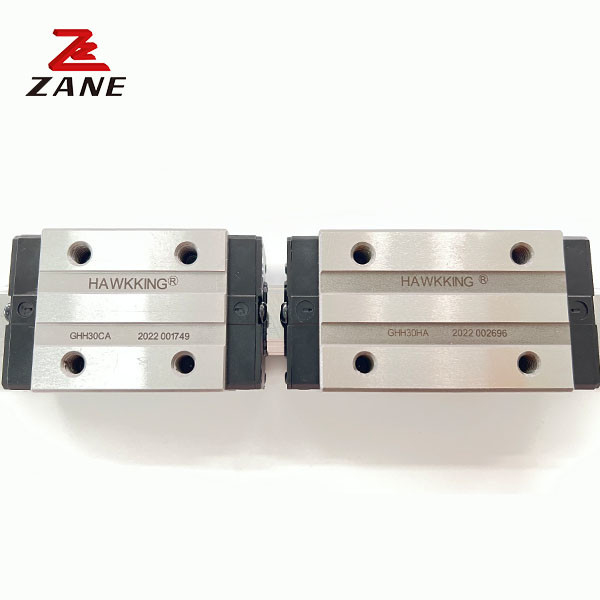

ISO Linear Guide Module GEH20CA 20mm Linear Motion Block Bearing
  • ISO Linear Guide Module GEH20CA 20mm Linear Motion Block Bearing
ISO Linear Guide Module GEH20CA 20mm Linear Motion Block Bearing

ISO Linear Guide Module GEH20CA 20mm Linear Motion Block Bearing

Place of Origin China
Brand Name ZANE
Certification CE，ISO
Model Number ZANE-GEH
Product Details
Product Name:
Mini Linear Rail Guide
Material:
Steel
Width Of Guide Rail:
3/5/7/9/12/15/20mm
Length Of Slide Rail:
40-250mm/15mm Interval
Block Type Height:
Flange Type OR Square Type
MODEL:
GEH20SA GEH20CA
Application:
CNC Machine, Automatic System
Type:
Linear Motion Guideway
Highlight:

ISO Linear Guide Module

,

GEH20CA Linear Guide Module

,

20mm linear motion module

Product Description

Linear Guide GEH20SA GEH20CA Linear Block Bearing Linear Module



1. Descriptions:

  • It features the same load in four directions (up/down/right/left) and self-aligning to absorb installation-error capability.
  • GE series linear guideway can achieve a long life with high speed, highly accurate and smooth linear motion.
  • GEH20SA is super heavy load with flange blocks,the block mounting is top of bottom.
  • Linear slide rail as a type of rolling guide, run by the power between infinite scroll circulation steel ball in the slider and slippery course, along the slippery course load platform can easily do high precision linear movement.
  •
Model Combination size (mm) Block size(mm) Slide rail size(mm)

Fixing bolts for slide rails

size

 Basic dynamic fixed load Basic fixed fixed load Allowable static moment weight
Mr kN-m

Mp

kN-m

 My kN-m

block

kg

slide

Kg/m
H Hi N W B Bi C Li L Ki Ki G Mxl T H2 h3 w/ Hr D h d P E (mm ) C(kN) Co(kN)
GEH15SA 24 4.5 9.5 34 26 4 - 23.1 40.1 14.8 3.5 5.7 M4x6 6 5.5 6 15 12.5 6 4.5 3.5 60 20 M3xl6 5.35 9.40 0.08 0.04 0.04 0.09 1.25
GEH15CA 26 39.8 56.8 10.15 7.83 16.19 0.13 0.10 0.10 0.15
GEH20SA 28 6 11 42 32 5 - 29 50 18.75 4.15 12 M5x7 7.5 6 6 20 15.5 9.5 8.5 6 60 20 M5xl6 7.23 12.74 0.13 0.06 0.06 0.15 2.08
GEH20CA 32 48.1 69.1 12.3 10.31 21.13 0.22 0.16 0.16 0.24
GEH25SA 33 7 12.5 48 35 6.5 - 35.5 59.1 21.9 4.55 12 M6x9 8 8 8 23 18 11 9 7 60 20 M6x20 11.40 19.50 0.23 0.12 0.12 0.25 2.67
GEH25CA 35 59 82.6 16.15 16.27 32.40 0.38 0.32 0.32 0.41
GEH30SA 42 10 16 60 40 10 - 41.5 69.5 26.75 6 12 M3xl2 9 8 9 28 23 11 9 7 80 20 M6x25 16.42 28.10 0.40 0.21 0.21 0.45 4.35
GEH30CA 40 70.1 98.1 21.05 23.70 47.46 0.68 0.55 0.55 0.76
GEH35SA 48 11 18 70 50 10 - 45 75 28.5 7 12 M8xl2 10 8.5 8.5 34 27.5 14 12 9 80 20 M8x25 16.42 28.10 0.40 0.21 0.21 0.45 6.14
GEH35CA 50 78 108 20 33.35 64.84 0.98 0.69 0.69 1.13

ISO Linear Guide Module GEH20CA 20mm Linear Motion Block Bearing 0
