High Rigidity High Precision Linear Rails

Place of Origin	China
Brand Name	ZANE
Certification	CE，ISO
Model Number	ZANE-GEH

Product Details

Product Name:

Linear Guide Rail

Color:

Sliver And Black Linear Guide

Linear Guide Application:

CNC Machine, Electric Machine, Lathes, Medical Equipment

Guide Length:

6000mm Or Can Be Customzied

Type:

Linear Motion Guideway

MODEL:

GEH25SA GEH25CA

Application:

CNC Machine, Automatic System

Highlight:

High rigidity high precision linear rails

GEH25SA high precision linear rails

GEH25CA miniature linear rail slide

Product Description

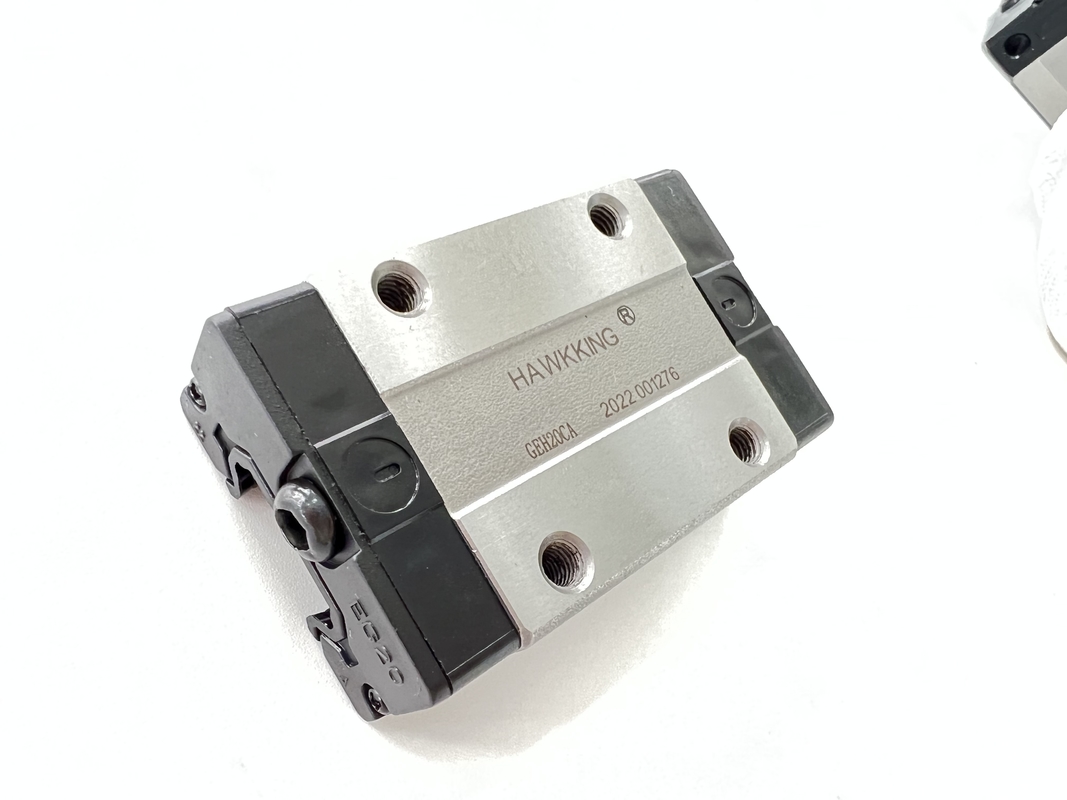

Separation Type Slider Direct Sale Oem GEH25SA GEH25CA

Name	Linear Guide Rail/Linear Guide Rail Block
Type	Automatic equipment high speed transmission device
Combination	At least 100mm linear rail + 1 piece slide block
Material	Chrome/Bearing/Stainless steel
Guide Size	4m or custom's requirement
Colour	Red or black or customs' requirements
Shape	Rectangle
Effect	1. Parallelism and high precision 2. The slider and the guide rail are interchangeable, saving cost 3. High rigidity in all directions 4. Reduce friction
Packing	1.PE bag, shockproof bubble bag, export standard carton, wooden box 2. According to customer's special requirements

Model	Combination size (mm)			Block size(mm)													Slide rail size(mm)							Fixing bolts for slide rails size	Basic dynamic fixed load	Basic fixed fixed load	Allowable static moment				weight
																											Mr kN-m	Mp kN-m		My kN-m	block kg		slide Kg/m
	H	Hi	N	W	B	Bi	C	Li	L	Ki	Ki	G	Mxl	T	H2	h3	w/	Hr	D	h	d	P	E	(mm )	C(kN)	Co(kN)
GEH15SA	24	4.5	9.5	34	26	4	-	23.1	40.1	14.8	3.5	5.7	M4x6	6	5.5	6	15	12.5	6	4.5	3.5	60	20	M3xl6	5.35	9.40	0.08		0.04	0.04	0.09	1.25
GEH15CA							26	39.8	56.8	10.15															7.83	16.19	0.13		0.10	0.10	0.15
GEH20SA	28	6	11	42	32	5	-	29	50	18.75	4.15	12	M5x7	7.5	6	6	20	15.5	9.5	8.5	6	60	20	M5xl6	7.23	12.74	0.13		0.06	0.06	0.15	2.08
GEH20CA							32	48.1	69.1	12.3															10.31	21.13	0.22		0.16	0.16	0.24
GEH25SA	33	7	12.5	48	35	6.5	-	35.5	59.1	21.9	4.55	12	M6x9	8	8	8	23	18	11	9	7	60	20	M6x20	11.40	19.50	0.23		0.12	0.12	0.25	2.67
GEH25CA							35	59	82.6	16.15															16.27	32.40	0.38		0.32	0.32	0.41
GEH30SA	42	10	16	60	40	10	-	41.5	69.5	26.75	6	12	M3xl2	9	8	9	28	23	11	9	7	80	20	M6x25	16.42	28.10	0.40		0.21	0.21	0.45	4.35
GEH30CA							40	70.1	98.1	21.05															23.70	47.46	0.68		0.55	0.55	0.76
GEH35SA	48	11	18	70	50	10	-	45	75	28.5	7	12	M8xl2	10	8.5	8.5	34	27.5	14	12	9	80	20	M8x25	16.42	28.10	0.40		0.21	0.21	0.45	6.14
GEH35CA							50	78	108	20															33.35	64.84	0.98		0.69	0.69	1.13
