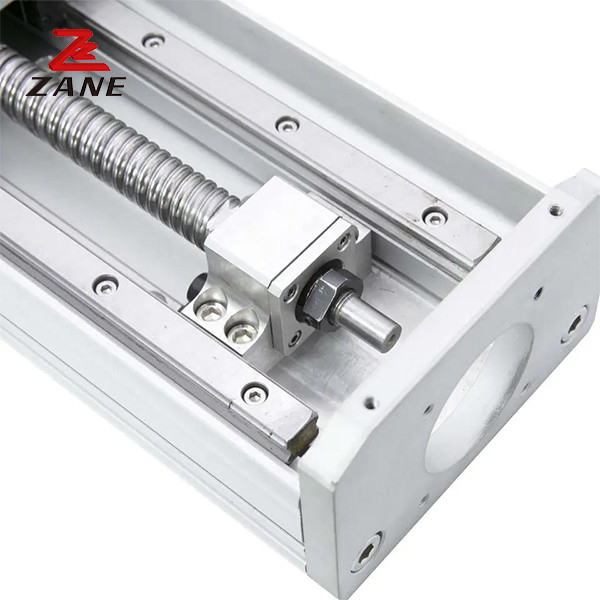

Precision Screw Drive Linear Sliding Table Fully Enclosed Module ZCH45 Guide CNC
1. Description
Linear Guide Module universal application as a single axis or in combination with further axes from our system range for complex multi-axis systems. For linear axes provides all linear motion technology components up to the motor interface: Systems and telescopic axes with roller guides or recirculating ball guides, with belt drive, ballscrew drive or rack and pinion drive, suitable for direct, cross or portal links or as a single axis system. You can use linear guide module implement your design quickly and accurately.
2. Specification
| Motor power | 100W | |
| Repeated positioning accuracy | Class C ±0.02MM and Class P ±0.01MM | |
| Outside diameter of lead screw(a) | 12 | |
| Lead of the lead screw(MM) | 5 | |
| Maximum speed(MM/SEC) | 250 | |
| Maximum load(KG) | level | 11 |
| vertical | 4 | |
| Rated thrust(N) | 360 | |
| Stroke(MM) | 100-800(50interval) | |
| Rated motor speed(RPM) | 3000 | |
Horizontal installation
| Lead | Load(KG) | A | B | C |
| 5 | 5 | 560 | 110 | 220 |
| 8 | 280 | 40 | 70 |
Wall mounting
| Lead | Load(KG) | A | B | C |
| 5 | 5 | 180 | 70 | 475 |
| 8 | 60 | 8 | 155 |
Vertical mounting
| Lead | Load(KG) | A | C |
| 5 | 3 | 80 | 80 |
