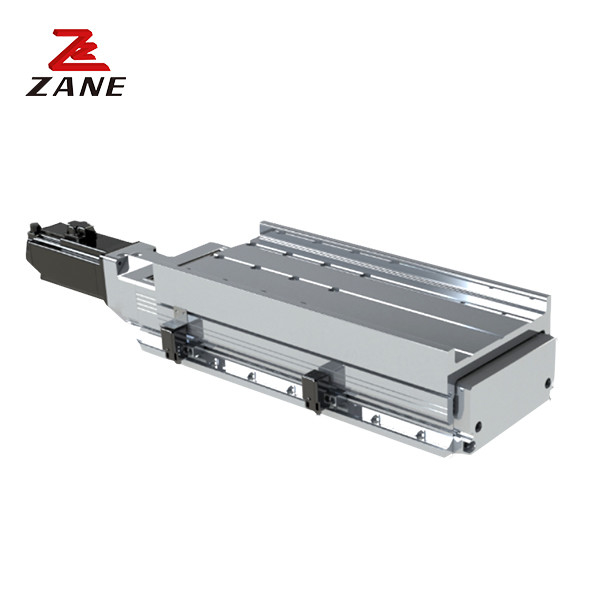

CE Screw Drive Slide Linear Guide Module ZCH175 Motor Power 750W
1. Description
Linear Guide Module utilizes professional standard manufacturing technology over the years, with the ball screw and magnetic slide design module developed and produced by ourselves, it’s applicable to all types of automation equipment due to its features of easy installation, small size, high-precision and various specifications.
2. Specification
| Motor power | 750W | |||
| Repeated positioning accuracy | Class C ±0.02MM and Class P ±0.01MM | |||
| Outside diameter of lead screw(a) | 20/25 | |||
| Lead of the lead screw(MM) | 5 | 10 | 25 | |
| Maximum speed(MM/SEC) | 250 | 500 | 1250 | |
| Maximum load(KG) | level | 156 | 132 | 66 |
| vertical | 60 | 45 | 20 | |
| Rated thrust(N) | 2710 | 1350 | 540 | |
| Stroke(MM) | 100-1500(50interval) | |||
| Rated motor speed(RPM) | 3000 | |||
Horizontal installation Unit:MM Wall mounting Unit:MM Vertical mounting Unit:MM
|
|
|
Double slide seat Double slide seat Slide seat extension Slide seat reverse simultaneous motion
3. Our Company
Jiangsu Zane Machinery Technology Co., Ltd. is a high-tech mechanical transmission products of high-tech enterprises. The company has 4 branches respectively manage different types of mechanical transmission products research and marketing projects. It has nearly 50 independent intellectual property rights. Is Taiwan YYC rack level agents, is Taiwan Heqing (HAWKKING) linear guide rail, ball screw ,Ball screw support seat,linear guide module research and development pioneers. ZANE module by the majority of customers love and trust. "Knowing kindness and being grateful moisten one's life" is the eternal source of growth for Zayn people.
