| Place of Origin | China |
| Brand Name | ZANE |
| Certification | CE，ISO |
| Model Number | ZHH110 |

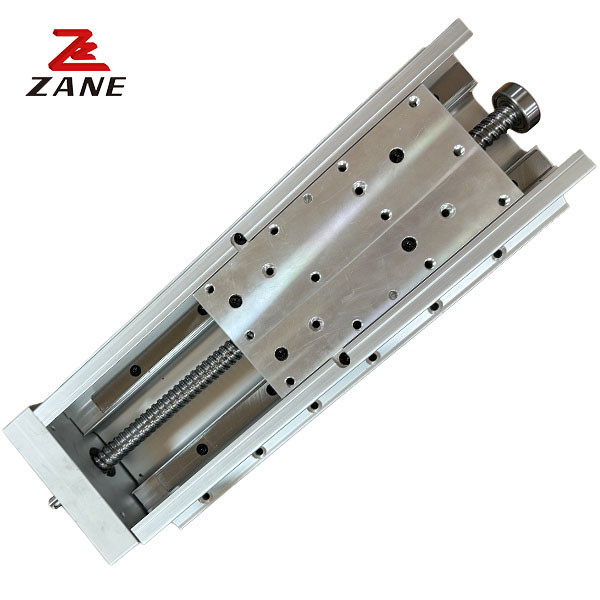

Electric CNC Linear Guide Semi-Closed Sliding Table 200mm Stroke ZHH110
1. Description
Fully enclosed ball screw linear module: This module is added with stainless steel dust-proof structure on the basis of semi-enclosed, beautiful and generous design, used for dust-proof occasions, support all kinds of applications. Features: high rigidity, high precision, high speed, high load, high thrust.
2. Specification
| Motor power | 400W | |||
| Repeated positioning accuracy | Class C ±0.02MM and Class P ±0.01MM | |||
| Outside diameter of lead screw(a) | 16 | |||
| Lead of the lead screw(MM) | 5 | 10 | 20 | |
| Maximum speed(MM/SEC) | 250 | 500 | 1000 | |
| Maximum load(KG) | level | 50 | 43 | 20 |
| vertical | 18 | 15 | 10 | |
| Rated thrust(N) | 1470 | 735 | 365 | |
| Stroke(MM) | 100-1000(50interval) | |||
| Rated motor speed(RPM) | 3000 | |||
Horizontal installation Unit:MM Wall mounting Unit:MM Vertical mounting Unit:MM
|
|
|
