Linear Guide Module
>
|
| Place of Origin | China |
| Brand Name | ZANE |
| Certification | CE，ISO |
| Model Number | ZHH135 |

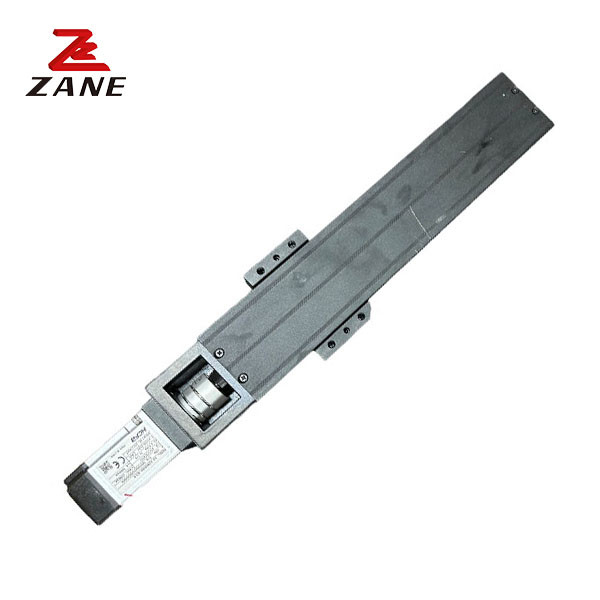

ZHH135 Linear Motion Guide Sliding Table CNC Cross Guide Travel 130mm High Precision
1. Description
Our heavy load linear module ball screw slider is of high quality, high precision and heavy load. Round front and rear plate design, precision hole processing. The ball screw consists of a screw, a nut and a ball. The rotary motion is converted into linear motion, and the friction resistance is small.
2. Specification
| Motor power | 400W | |||
| Repeated positioning accuracy | Class C ±0.02MM and Class P ±0.01MM | |||
| Outside diameter of lead screw(a) | 16/20 | |||
| Lead of the lead screw(MM) | 5 | 10 | 20 | |
| Maximum speed(MM/SEC) | 250 | 500 | 1000 | |
| Maximum load(KG) | level | 110 | 90 | 40 |
| vertical | 35 | 25 | 10 | |
| Rated thrust(N) | 1470 | 735 | 365 | |
| Stroke(MM) | 100-1200(50interval) | |||
| Rated motor speed(RPM) | 3000 | |||
Horizontal installation Unit:MM Wall mounting Unit:MM Vertical mounting Unit:MM
|
|
|
3. FAQ
1. Who we are?
Jiangsu Zane Machinery Technology Co., Ltd. is a high-tech mechanical transmission products of high-tech enterprises. The company has 4 branches respectively manage different types of mechanical transmission products research and marketing projects.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. What can you buy from us?
The linear guide rail,ball screw,ball screw end support,linear module,reducer,rack and pinion.
