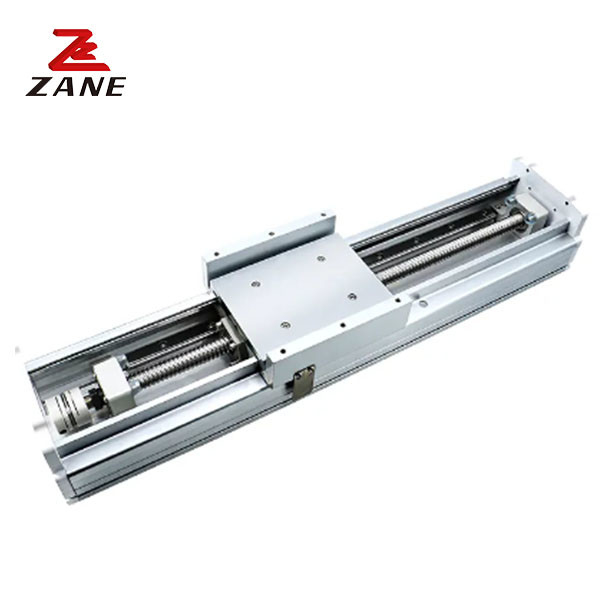

CE ZHH210 Linear Module 15 M Stroke Length For CNC Linear Position
1.Description
The linear module is a mechanical structure that provides linear motion. The linear module can be used horizontally or vertically. The linear module can also be combined into a specific motion mechanism--that is, multi-axis motion commonly referred to as XY axis, XYZ axis, etc. in the automation industry.
2.ZHH210
| Motor power | 750W | |||
| Repeated positioning accuracy | Class C ±0.02MM and Class P ±0.01MM | |||
| Outside diameter of lead screw(a) | 25/32 | |||
| Lead of the lead screw(MM) | 5 | 10 | 25 | |
| Maximum speed(MM/SEC) | 250 | 500 | 1250 | |
| Maximum load(KG) | level | 205 | 170 | 83 |
| vertical | 68 | 50 | 22 | |
| Rated thrust(N) | 2710 | 1350 | 540 | |
| Stroke(MM) | 100-1800(50interval) | |||
| Rated motor speed(RPM) | 3000 | |||
Horizontal installation Unit:MM Wall mounting Unit:MM Vertical mounting Unit:MM
|
|
|
