Linear Guide Module
>
|
| Place of Origin | China |
| Brand Name | ZANE |
| Certification | CE，ISO |
| Model Number | ZCH45 |

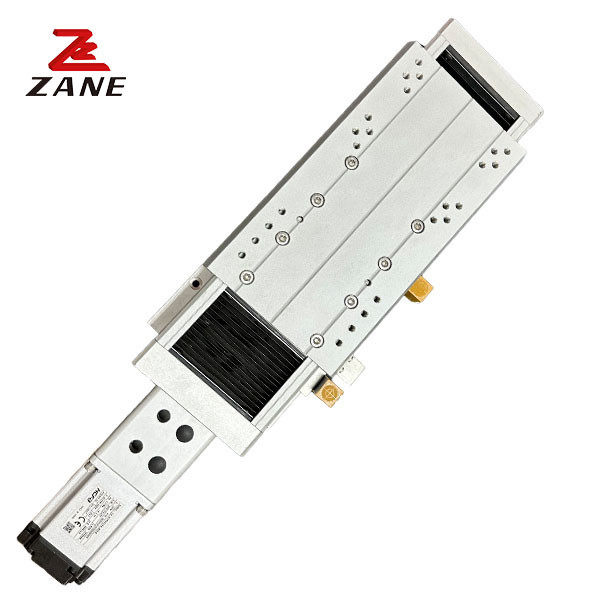

ZCH45 Linear Guide Ball Screw Fully Closed Sliding Table 1000 Motor Power
1. Description
The linear module is usually used with a power motor. Linear Guide Module can be used to automatically reciprocate the workpiece by installing other required workpieces on the slider to form a complete conveying motion device and setting a suitable motor forward and reverse program. Thereby achieving the purpose of mass production and intensive production of equipment.
2. Specification
| Motor power | 100W | |
| Repeated positioning accuracy | Class C ±0.02MM and Class P ±0.01MM | |
| Outside diameter of lead screw(a) | 12 | |
| Lead of the lead screw(MM) | 5 | |
| Maximum speed(MM/SEC) | 250 | |
| Maximum load(KG) | level | 11 |
| vertical | 4 | |
| Rated thrust(N) | 360 | |
| Stroke(MM) | 100-800(50interval) | |
| Rated motor speed(RPM) | 3000 | |
Horizontal installation
| Lead | Load(KG) | A | B | C |
| 5 | 5 | 560 | 110 | 220 |
| 8 | 280 | 40 | 70 |
Wall mounting
| Lead | Load(KG) | A | B | C |
| 5 | 5 | 180 | 70 | 475 |
| 8 | 60 | 8 | 155 |
Vertical mounting
| Lead | Load(KG) | A | C |
| 5 | 3 | 80 | 80 |
Double slide seat Double slide seat Slide seat extension Slide seat reverse simultaneous motion
