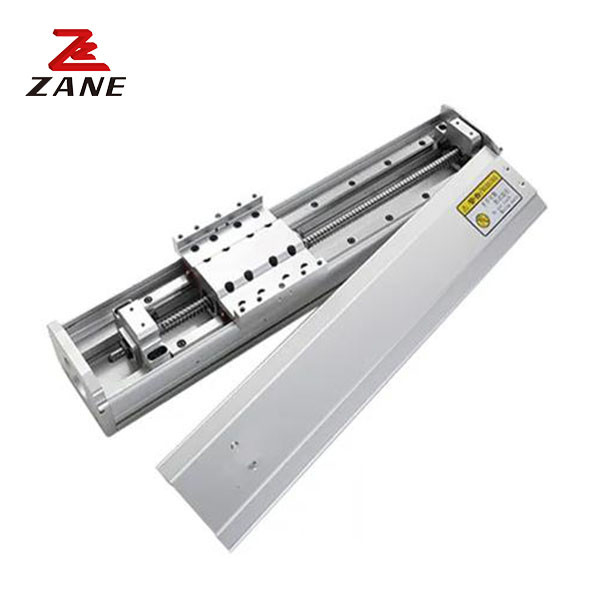

High Precision Fully Enclosed Sliding ZCH60 Table Module For 3d Printer
1. Description
Linear guide module sliding table: universal application as a single axis or in combination with further axes from our system range for complex multi-axis systems. Nadella’s building block system for linear axes provides all linear motion technology components up to the motor interface: Systems and telescopic axes with roller guides or recirculating ball guides, with belt drive, ballscrew drive or rack and pinion drive, suitable for direct, cross or portal links or as a single axis system.
2. Specification
| Motor power | 100W | ||
| Repeated positioning accuracy | Class C ±0.02MM and Class P ±0.01MM | ||
| Outside diameter of lead screw(a) | 12 | ||
| Lead of the lead screw(MM) | 5 | 10 | |
| Maximum speed(MM/SEC) | 250 | 500 | |
| Maximum load(KG) | level | 30 | 15 |
| vertical | 10 | 5 | |
| Rated thrust(N) | 360 | 180 | |
| Stroke(MM) | 100-800(50interval) | ||
| Rated motor speed(RPM) | 3000 | ||
Horizontal installation
| Lead | Load(kg) | A | B | C |
|
5 |
10 | 500 | 45 | 120 |
| 30 | 250 | 20 | 35 | |
|
10 |
3 | 750 | 160 | 380 |
| 8 | 320 | 50 | 150 | |
| 15 | 300 | 30 | 70 |
Wall mounting
| Lead | Load(kg) | A | B | C |
|
5 |
5 | 300 | 110 | 1150 |
| 10 | 150 | 40 | 540 | |
| 30 | 35 | 10 | 140 | |
|
10 |
3 | 350 | 150 | 700 |
| 8 | 135 | 50 | 300 | |
| 15 | 60 | 25 | 170 |
Vertical mounting
| Lead | Load(kg) | A | C |
|
5 |
2 | 290 | 290 |
| 4 | 140 | 140 | |
| 10 | 60 | 60 | |
|
10 |
1 | 420 | 420 |
| 2 | 210 | 210 | |
| 5 | 85 | 85 |
Double slide seat Double slide seat Slide seat extension Slide seat reverse simultaneous motion
