Linear Actuator Rail Guide Directed Drive Linear Module With Stepper ZHB135
  • Linear Actuator Rail Guide Directed Drive Linear Module With Stepper ZHB135
Linear Actuator Rail Guide Directed Drive Linear Module With Stepper ZHB135

Linear Actuator Rail Guide Directed Drive Linear Module With Stepper ZHB135

Place of Origin China
Brand Name ZANE
Certification CE，ISO
Model Number ZHB135
Product Details
Product Name:
Linear Motion Guide
Material:
Stainless Steel
Screw Type:
Screw
Motor Power:
400W
Momentum Per Transfer:
90
Maximum Load:
38
Maximum Speed:
4500
Stroke:
100-3500
Rated Motor Speed:
3000 RPM
Highlight:

Linear Actuator Rail Guide

,

Stepper Directed Drive Linear Module

,

Screw Linear Actuator Rail Guide

Product Description

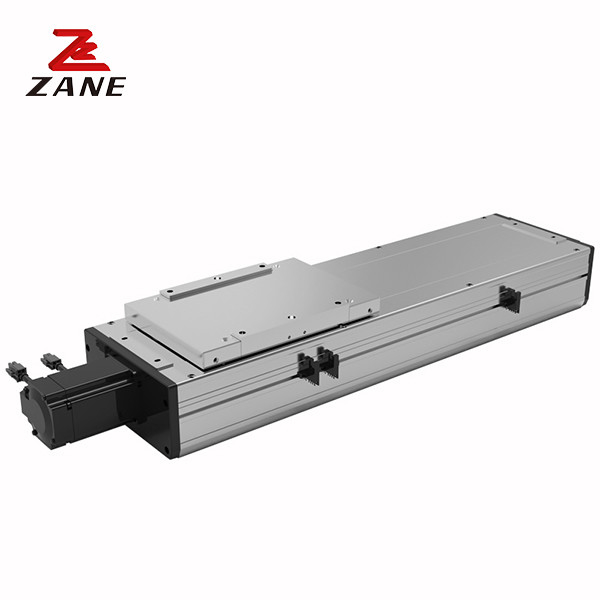

Linear Actuator Rail Guide Directed Drive Linear Module with Stepper ZHB135



1. Description



Linear Guide Module is an important hardware device that composes industrial automation machinery, which can precisely control the accuracy and speed of moving parts of mechanical equipment.
Linear Guide Module has high hardness, compact and firm structure, wear-resistant performance, not easy to deform during processing, good linearity and parallelism.

Applications:The linear modules with improved integrated rail design, improved rigidity, straightness, and flatness result in higher performance in these applications. This means that GTH can stand out in higher precision applications, such as metrology and laser scanning systems. The improved design is also easy to install and maintain.



2. Specification



Motor power 400W
Momentum per transfer(MM) 90
Repeated positioning accuracy Class C ±0.04MM
Maximum load(KG) 38
Maximum speed(MM/SEC) 4500
Stroke(MM) 100-3500(50interval)
Maximum load 5M
Rated motor speed(RPM) 3000



    Linear Actuator Rail Guide Directed Drive Linear Module With Stepper ZHB135 0                      Linear Actuator Rail Guide Directed Drive Linear Module With Stepper ZHB135 1

Horizontal installation       Unit:MM  Wall mounting                  Unit:MM

Lead A B C
10 2700 1700 1050
20 2100 850 650
25 1700 600 500
Lead A B C
10 1070 1200 2000
20 600 560 1500
25 410 350 1150



Linear Actuator Rail Guide Directed Drive Linear Module With Stepper ZHB135 2            Linear Actuator Rail Guide Directed Drive Linear Module With Stepper ZHB135 3     Linear Actuator Rail Guide Directed Drive Linear Module With Stepper ZHB135 4      Linear Actuator Rail Guide Directed Drive Linear Module With Stepper ZHB135 5

Double slide seat                       Double slide seat            Slide seat extension                 Slide seat reverse simultaneous motion
