Linear Guide Module
>
|
| Place of Origin | China |
| Brand Name | ZANE |
| Certification | CE，ISO |
| Model Number | F136 |

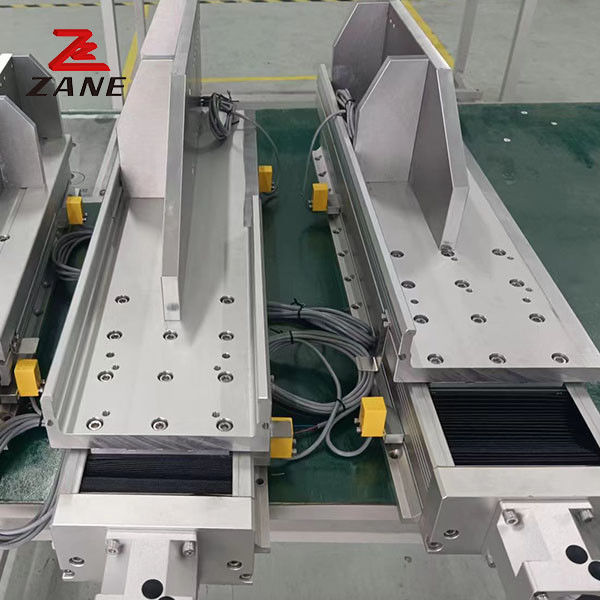

Fully Enclosed Linear Motion Stage Actuator Double Linear Slide Rail Linear Slide Table Linear
A Monocarrier is a light-weight, single-axis actuator with an all-in-one design integrating ball screw, linear guide, and support bearings.
Monocarriers offer long-life, maintenance-free operation and are suitable for a wide range of applications. Monocarriers for clean environments are also available.
Advantages:1. Stable load-bearing bearing: upgraded stable bearing, stable wire rod, make the module operation more stable and smooth, higher accuracy.
2.Fully enclosed design: high quality aluminum alloy material, effective dust proof, oxidation treatment slide table is not easy to rust.
Technical parameter:
| Driver power(W) | 400W | |||
| Ball screw (16) mm lead | P05:5 | P10:10 | P20:20 | |
| Maximum speed(mm/s): | 250 | 500 | 1000 | |
| Maximum handling weight(kg) | Level | 60kg | 50kg | 40kg |
| Perpendicularity | 40kg | 35kg | 30kg | |
| Repeated positioning accuracy (mm): | Class C +0.02mm; P level +0.01mm | |||
| Range of travel(mm): | The range is 50 to 1500mm | |||
| Load moment(N.m ) | Mx:50; My:70; Mz:70 | |||
| Load mechanism | GEH15 Dual track | |||
| Driving mechanism | Grade C. 16 to grade C7; Grade P ·16 Grinding grade C5 | |||
| Base material | Hard extruded aluminum profile, luster itself | |||
| Installation surface accuracy requirements | Less than 0.05mm | |||
| Dust proof design | Full seal dust proof | |||
| Stroke(S) | 100 | 150 | 200 | 250 | 300 | 350 |
| L165 | 35 | 40 | 45 | 50 | 55 | 60 |
| L2 | 295 | 350 | 415 | 470 | 525 | 580 |
| L3 | 330 | 390 | 460 | 520 | 580 | 640 |
| L | 438 | 498 | 568 | 628 | 688 | 748 |
