| Place of Origin | China |
| Brand Name | ZANE |
| Certification | CE，ISO |
| Model Number | KK40 |

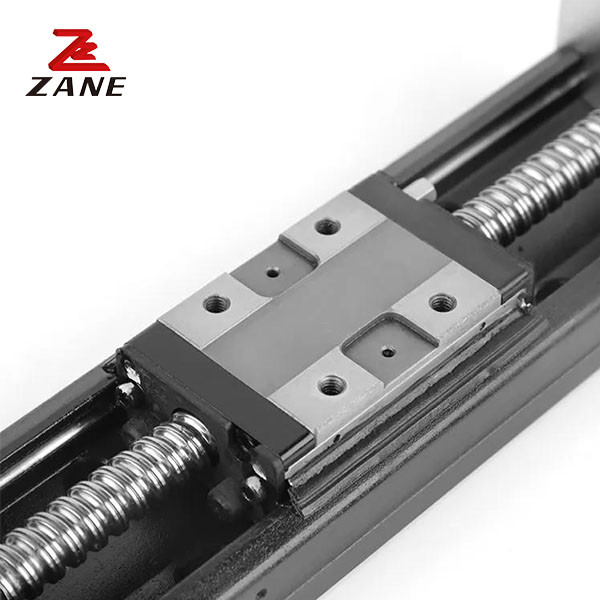

HIWIN Replacement Single Axis Robot KK Travel Linear Module KK40
Module Number of KK Series Specifications
|
Length of guide L2(mm) |
Full length L1(mm) |
Maximum stroke(mm) | G(mm) | n | Weight(kg) | ||
| A1Slide seat | A2 Slide seat | A1Slide seat | A2Slide seat | ||||
| 100 | 159 | 36 | - | 20 | 2 | 0.48 | - |
| 150 | 209 | 86 | 34 | 15 | 3 | 0.6 | 0.67 |
| 200 | 259 | 136 | 84 | 40 | 3 | 0.72 | 0.79 |
The Linear Module Application
Machine centers/cnc lathes/grinding machines/precision machining machines
Heavy cutting machines/automation devices/transportation equipment
Measuring equipment/devices requiring high positional accuracy
High speed transportation equipment/precision measuring equipment
Semiconductor manufacturing equipment/woodworking machinery
