| Place of Origin | China |
| Brand Name | ZANE |
| Certification | CE，ISO |
| Model Number | KK8610-340 |

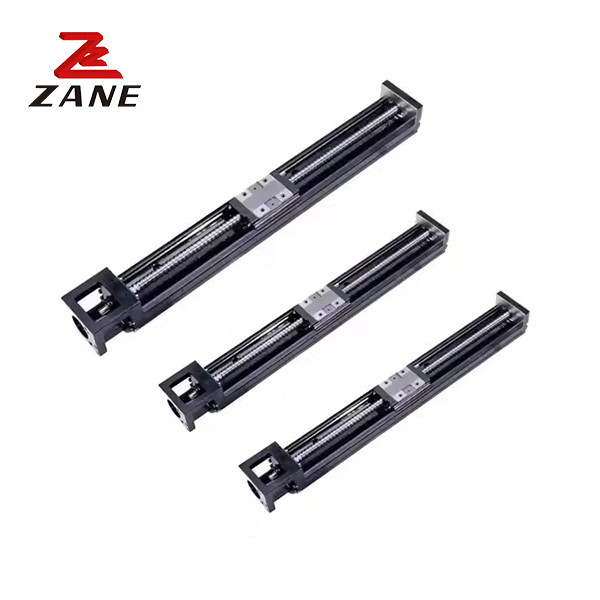

Precision Cnc Linear Guide KK86 Series Linear Module For Automation Machine
KK industrial robot, through modular design, integrated ball screw and linear slide rail, can save the shortcomings of traditional braking platform, such as the selection, installation and calibration of guidance and driving components, large volume, space occupation, etc. Therefore, KK industrial robot can provide fast selection, installation, compact size, high rigidity and other characteristics, which can greatly reduce the use space and time of the client.
|
Length of guide L2(mm) |
Full length L1(mm) |
Maximum stroke(mm) | H(mm) | n | m | Weight(kg) | ||
| A1Slide seat | A2 Slide seat | A1Slide seat | A2Slide seat | |||||
| 340 | 440 | 210 | 100 | 70 | 3 | 2 | 5.7 | 6.5 |
| 440 | 540 | 310 | 200 | 20 | 5 | 3 | 6.9 | 7.7 |
| 540 | 640 | 410 | 300 | 70 | 5 | 3 | 8.0 | 8.8 |
| 640 | 740 | 510 | 400 | 20 | 7 | 4 | 9.2 | 10.0 |
| 740 | 840 | 610 | 500 | 70 | 7 | 4 | 10.4 | 11.2 |
| 940 | 1040 | 810 | 700 | 70 | 9 | 5 | 11.6 | 12.4 |
