KK Module
>
|
| Place of Origin | China |
| Brand Name | ZANE |
| Certification | CE，ISO |
| Model Number | KK8620-440 |

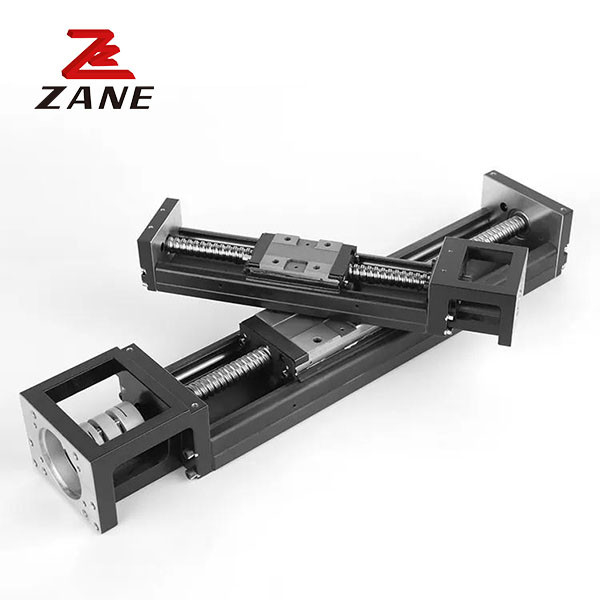

Industrial HIWIN Replacement Single-Axis Robot KK86 Series Linear Module
KK Series Single Axis Robot (industrial robot) modularizes both ballscrew and guideway to achieve better performance on accuracy,stiffness, raipd installation, and space saving. With the block of KK driven by ballscrew and sliding on the optimized U-rail,greater stiffness and high accuracy are therefore performed.
|
Length of guide L2(mm) |
Full length L1(mm) |
Maximum stroke(mm) | H(mm) | n | m | Weight(kg) | ||
| A1Slide seat | A2 Slide seat | A1Slide seat | A2Slide seat | |||||
| 340 | 440 | 210 | 100 | 70 | 3 | 2 | 5.7 | 6.5 |
| 440 | 540 | 310 | 200 | 20 | 5 | 3 | 6.9 | 7.7 |
| 540 | 640 | 410 | 300 | 70 | 5 | 3 | 8.0 | 8.8 |
| 640 | 740 | 510 | 400 | 20 | 7 | 4 | 9.2 | 10.0 |
| 740 | 840 | 610 | 500 | 70 | 7 | 4 | 10.4 | 11.2 |
| 940 | 1040 | 810 | 700 | 70 | 9 | 5 | 11.6 | 12.4 |
Feature
1.Easy installation and maintenance
2.Small size and light weight
3.High-accuracy
4.High rigidity
5.Customized designs available for different application
6.Easy transformation into a multi-axid robot
