| Place of Origin | China |
| Brand Name | ZANE |
| Certification | CE，ISO |
| Model Number | KK86 |

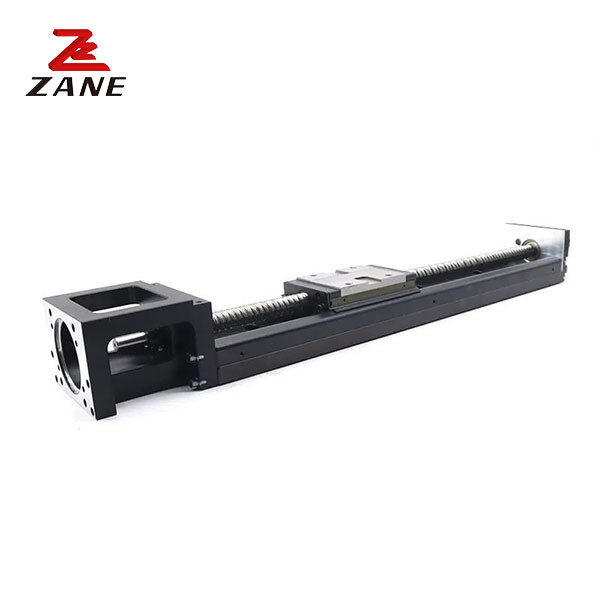

High Speed Ball Screw Drive Linear Guide Hiwin Replacement KK86 Series
Linear Module Description
Complete selection of single axis robot and accessories
Drive type:ball screw,toothed belt.
AC motor output:30W ~ 750W servo motor or stepping motor
Easy installation and maintenance
Customized designs available
Easy tranformation into a multi-axis robot
KK86 Datasheet
|
Length of guide L2(mm) |
Full length L1(mm) |
Maximum stroke(mm) | H(mm) | n | m | Weight(kg) | ||
| A1Slide seat | A2 Slide seat | A1Slide seat | A2Slide seat | |||||
| 340 | 440 | 210 | 100 | 70 | 3 | 2 | 5.7 | 6.5 |
| 440 | 540 | 310 | 200 | 20 | 5 | 3 | 6.9 | 7.7 |
| 540 | 640 | 410 | 300 | 70 | 5 | 3 | 8.0 | 8.8 |
| 640 | 740 | 510 | 400 | 20 | 7 | 4 | 9.2 | 10.0 |
| 740 | 840 | 610 | 500 | 70 | 7 | 4 | 10.4 | 11.2 |
| 940 | 1040 | 810 | 700 | 70 | 9 | 5 | 11.6 | 12.4 |
Packing & Delivery
Carton box Wooden case
