| Place of Origin | China |
| Brand Name | ZANE |
| Certification | CE，ISO |
| Model Number | KK50 |

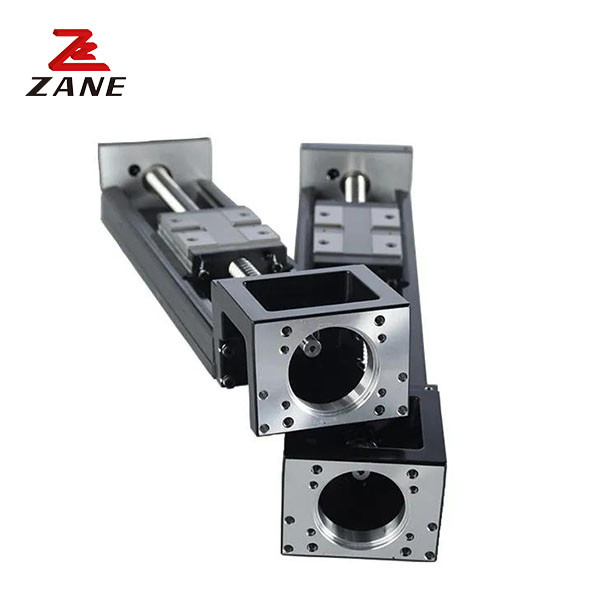

HIWIN Replacement Linear Guide And Ball Screw Set Kk50 Linear Module
KK50 Linear Module Description
| Product Name | KK50 Linear Module |
| Material | Bearing Steel/Chrome Steel |
| Type | Linear Motion Guideway |
| Feature | Smooth Motion,Low Friction,High Speed |
| Length | Customized Length:100mm-6000mm |
| Application | Automatic System |
| Package | Carton Box+Wooden Case |
|
Length of guide L2(mm) |
Full length L1(mm) |
Maximum stroke(mm) | G(mm) | K(mm) | n | Weight(kg) | ||
| A1Slide seat | A2 Slide seat | A1Slide seat | A2Slide seat | |||||
| 150 | 220 | 70 | - | 35 | 80 | 2 | 1 | - |
| 200 | 270 | 120 | 55 | 20 | 160 | 3 | 1.2 | 1.4 |
| 250 | 320 | 170 | 105 | 45 | 160 | 3 | 1.4 | 1.6 |
| 300 | 370 | 220 | 155 | 30 | 240 | 4 | 1.6 | 1.8 |
Details Images
Company Profile
Jiangsu ZANE Technology Machinery Co., Ltd. is a high-tech mechanical transmission
products R & D production operator. The main products are linear guide rail, ball screw,
rack and pinion, module, reducer. We can also provide one-stop solutions, welcome to
inquire.
