| Place of Origin | China |
| Brand Name | ZANE |
| Certification | CE，ISO |
| Model Number | KK60 |

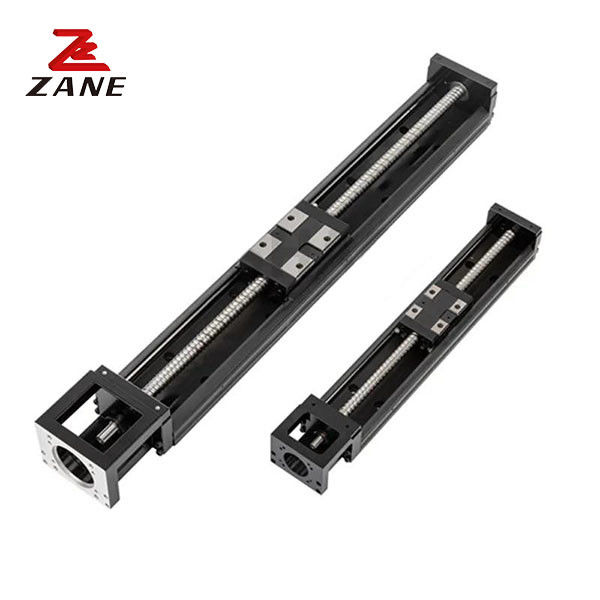

Actuator Heavy Duty Precision Cnc Systems KK Linear Module KK60 single Axis Robot
Linear module is usually used with a power motor. It can be used to automatically reciprocate the work piece by installing other required work pieces on the block to form a complete conveying motion device and setting a suitable motor forward and reverse program. Thereby achieving the purpose of mass production and intensive production of equipment.
PRODUCTS SPECIFICATION
|
Length of guide L2(mm) |
Full length L1(mm) |
Maximum stroke(mm) | G(mm) | K(mm) | n | m | Weight(kg) | ||
| A1Slide seat | A2 Slide seat | A1Slide seat | A2Slide seat | ||||||
| 150 | 220 | 60 | - | 25 | 100 | 2 | 2 | 1.4 | - |
| 200 | 270 | 110 | - | 50 | 100 | 2 | 2 | 1.7 | - |
| 300 | 370 | 210 | 135 | 50 | 200 | 3 | 2 | 2.3 | 2.6 |
| 400 | 470 | 310 | 235 | 50 | 100 | 4 | 4 | 3.2 | 3.2 |
| 500 | 570 | 410 | 335 | 50 | 200 | 5 | 3 | 3.5 | 3.8 |
| 600 | 670 | 510 | 435 | 50 | 100 | 6 | 6 | 4.1 | 4.5 |
