KK Module
>
|
| Place of Origin | China |
| Brand Name | ZANE |
| Certification | CE，ISO |
| Model Number | KK100 |

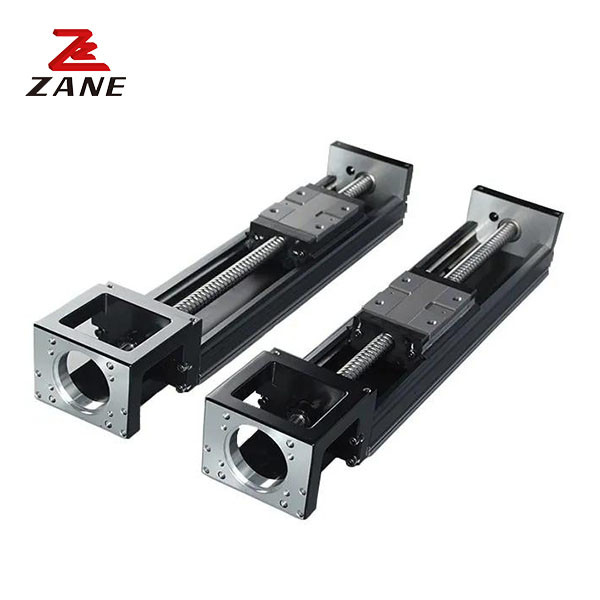

Ball Screw Stepper Motor Cnc Linear Actuator Linear Motion Guide KK100
KK Series Linear module Paramenters
|
Length of guide L2(mm) |
Full length L1(mm) |
Maximum stroke(mm) | G(mm) | H(mm) | n | m | Weight(kg) | ||
| A1Slide seat | A2 Slide seat | A1Slide seat | A2Slide seat | ||||||
| 980 | 1089 | 828 | 700 | 40 | 90 | 7 | 5 | 18.6 | 20.3 |
| 1080 | 1189 | 928 | 800 | 15 | 40 | 8 | 6 | 20.3 | 22.0 |
| 1180 | 1289 | 1028 | 900 | 65 | 90 | 8 | 6 | 22.0 | 23.7 |
| 1280 | 1389 | 1128 | 1000 | 40 | 40 | 9 | 7 | 23.6 | 25.3 |
| 1380 | 1489 | 1228 | 1100 | 15 | 90 | 10 | 7 | 25.3 | 27.0 |
Linear Module Structure
Company Profile
Jiangsu Zane Machinery Technology Co.,ltd
ZANE is a high-tech enterprise integrating intelligent equipment design, development,
production, sales and service. Company headquarters is located in Changzhou energy
conservation Industrial Park, plant area of more than 2000 square meters. The main
production line guide rail, ball screw, module, reducer. Suitable for high precision instrumen
t and equipment field.
