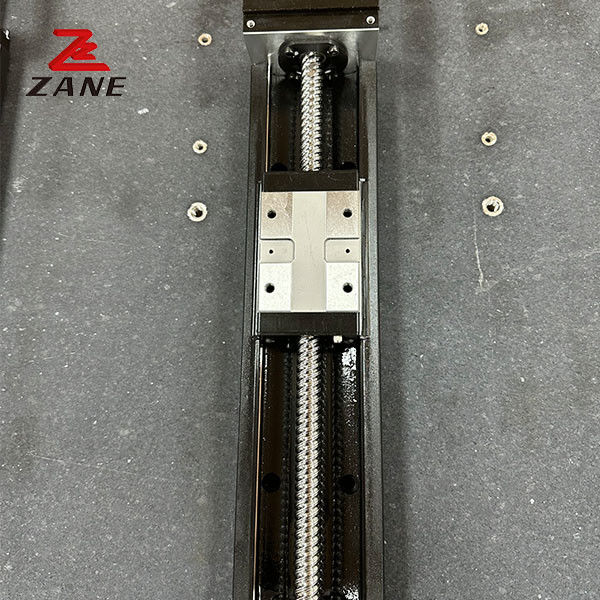

Linear Slider Module Ball Screw Linear Guide Sliding Module for CNC Machine
About KK Linear Module
KK linear module integrates ball screws and linear guides, which can save the traditional brake platform that has to go through the selection of guiding and driving components,installation verification,large volume,and space occupation.
The KK module can provide features such as quick selection,installation,compact size,and high rigidity,which can greatly reduce the space and assembly time. Customers can choose different specifications linear modules according to their needs,space,and load.
| Model Number |
C and P grade KK4001,KK5002,KK6005,KK6010,KK8610,KK8620,KK10020,KK13025
|
| Lead | 1MM,2MM,5MM, 10MM,20MM |
| Rail Length |
KK40:100MM,150MM,200MM KK50:150MM,200MM,250MM,300MM KK60:150MM,200MM,300MM,400MM,500MM,600MM KK86:340MM,440MM,540MM,640MM,740MM,940MM KK100:980MM,1080MM,1180MM,1280MM,1380MM
|
| Material | Bearing steel |
| Repeatability |
C grade: +-0.005 for size KK40/KK50/KK60/KK86, +-0.01 for size KK100 P grade:+-0.003 for size KK40/KK50/KK60/KK86, +-0.005 for size KK100
|
| Documents service to guarantee | Testing document and certificate,2D/3D drawings |
| Mainly application filed | 3C electronics industry ,Lithium battery industry,Display panel industry,Production robot,Car manufacturing,Medical equipment |
KK Series Linear Module Parameter List
|
Length of guide L2(mm) |
Full length L1(mm) |
Maximum stroke(mm) | G(mm) | n | Weight(kg) | ||
| A1Slide seat | A2 Slide seat | A1Slide seat | A2Slide seat | ||||
| 100 | 159 | 36 | - | 20 | 2 | 0.48 | - |
| 150 | 209 | 86 | 34 | 15 | 3 | 0.6 | 0.67 |
| 200 | 259 | 136 | 84 | 40 | 3 | 0.72 | 0.79 |
|
Length of guide L2(mm) |
Full length L1(mm) |
Maximum stroke(mm) | G(mm) | K(mm) | n | Weight(kg) | ||
| A1Slide seat | A2 Slide seat | A1Slide seat | A2Slide seat | |||||
| 150 | 220 | 70 | - | 35 | 80 | 2 | 1 | - |
| 200 | 270 | 120 | 55 | 20 | 160 | 3 | 1.2 | 1.4 |
| 250 | 320 | 170 | 105 | 45 | 160 | 3 | 1.4 | 1.6 |
| 300 | 370 | 220 | 155 | 30 | 240 | 4 | 1.6 | 1.8 |
|
Length of guide L2(mm) |
Full length L1(mm) |
Maximum stroke(mm) | G(mm) | K(mm) | n | m | Weight(kg) | ||
| A1Slide seat | A2 Slide seat | A1Slide seat | A2Slide seat | ||||||
| 150 | 220 | 60 | - | 25 | 100 | 2 | 2 | 1.4 | - |
| 200 | 270 | 110 | - | 50 | 100 | 2 | 2 | 1.7 | - |
| 300 | 370 | 210 | 135 | 50 | 200 | 3 | 2 | 2.3 | 2.6 |
| 400 | 470 | 310 | 235 | 50 | 100 | 4 | 4 | 3.2 | 3.2 |
| 500 | 570 | 410 | 335 | 50 | 200 | 5 | 3 | 3.5 | 3.8 |
| 600 | 670 | 510 | 435 | 50 | 100 | 6 | 6 | 4.1 | 4.5 |
|
Length of guide L2(mm) |
Full length L1(mm) |
Maximum stroke(mm) | H(mm) | n | m | Weight(kg) | ||
| A1Slide seat | A2 Slide seat | A1Slide seat | A2Slide seat | |||||
| 340 | 440 | 210 | 100 | 70 | 3 | 2 | 5.7 | 6.5 |
| 440 | 540 | 310 | 200 | 20 | 5 | 3 | 6.9 | 7.7 |
| 540 | 640 | 410 | 300 | 70 | 5 | 3 | 8.0 | 8.8 |
| 640 | 740 | 510 | 400 | 20 | 7 | 4 | 9.2 | 10.0 |
| 740 | 840 | 610 | 500 | 70 | 7 | 4 | 10.4 | 11.2 |
| 940 | 1040 | 810 | 700 | 70 | 9 | 5 | 11.6 | 12.4 |
|
Length of guide L2(mm) |
Full length L1(mm) |
Maximum stroke(mm) | G(mm) | H(mm) | n | m | Weight(kg) | ||
| A1Slide seat | A2 Slide seat | A1Slide seat | A2Slide seat | ||||||
| 980 | 1089 | 828 | 700 | 40 | 90 | 7 | 5 | 18.6 | 20.3 |
| 1080 | 1189 | 928 | 800 | 15 | 40 | 8 | 6 | 20.3 | 22.0 |
| 1180 | 1289 | 1028 | 900 | 65 | 90 | 8 | 6 | 22.0 | 23.7 |
| 1280 | 1389 | 1128 | 1000 | 40 | 40 | 9 | 7 | 23.6 | 25.3 |
| 1380 | 1489 | 1228 | 1100 | 15 | 90 | 10 | 7 | 25.3 | 27.0 |
|
Length of guide L2(mm) |
Full length L1(mm) |
Maximum stroke(mm) | G(mm) | H(mm) | n | m | Weight(kg) | ||
| A1Slide seat | A2 Slide seat | A1Slide seat | A2Slide seat | ||||||
| 980 | 1098 | 811 | 659 | 40 | 90 | 7 | 5 | 29.4 | 32.3 |
| 1180 | 1298 | 1011 | 859 | 65 | 90 | 8 | 6 | 34.3 | 37.2 |
| 1380 | 1498 | 1211 | 1059 | 90 | 90 | 9 | 7 | 39.2 | 42.1 |
| 1680 | 1798 | 1511 | 1359 | 90 | 40 | 11 | 9 | 46.5 | 49.4 |
