YYC Rack and Pinion
>
|
| Place of Origin | China |
| Brand Name | YYC |
| Certification | CE,ISO |
| Model Number | MHTG01505 |

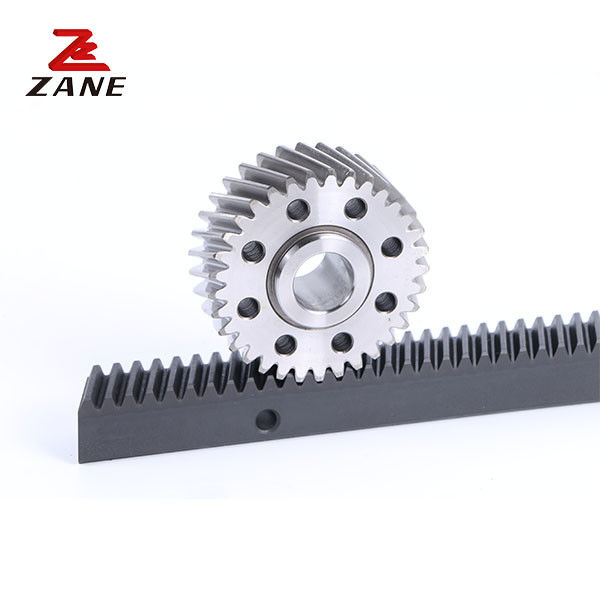

YYC Rack and Pinion is a rack-and-pinion mechanism that provides linear motion and converts rotational motion into linear motion. It consists of a round gear, called the pinion, and a flat rack that meshes with the pinion. The pinion is driven by a motor, which causes the pinion to rotate and push the rack along its length. The result is a linear motion from the rotary motion of the pinion. YYC Rack and Pinion is designed to provide precise linear motion and is used in a variety of applications, including robotics, automation, and manufacturing. It is an ideal choice for high-precision, high-load applications. The rack and pinion drive system is designed for durability and long-term performance, with a module of 1.5, surface treatment of milled and ground, a material of SCM440, and a weight of 1.3kg. It meets the quality grade of DIN 6, ensuring reliable and accurate performance.
|
Code |
Module |
L | L2 |
No. of Teeth |
B | A0 | Al | D 1 | No. of Holes | A | dl | D | E | DI | l1 | d2 | f | Fta kN | KG | |
| MHTG01505-DIN6 | 1.5 | 500.00 | 6.70 | 100 | 19 | 19 | 17.5 | 62.5 | 125 | 4 | 8 | 7 | 11 | 7 | 31.7 | 436.60 | 5.7 | 1.5 | 0.94 | 1.3 |
| MHTG01510-DIN6 | 1.5 | 1000.00 | 6.70 | 200 | 19 | 19 | 17.5 | 62.5 | 125 | 8 | 8 | 7 | 11 | 7 | 31.7 | 936.60 | 5.7 | 1.5 | 0.94 | 2.6 |
| MHTG02005-DIN6 | 2 | 500.00 | 8.50 | 75 | 24 | 24 | 22.0 | 62.5 | 125 | 4 | 8 | 7 | 11 | 7 | 31.7 | 436.60 | 5.7 | 2 | 1.58 | 2.1 |
| MHTG02010-DIN6 | 2 | 1000.00 | 8.50 | 150 | 24 | 24 | 22,0 | 62.5 | 125 | 8 | 8 | 7 | 11 | 7 | 31.7 | 936.60 | 5.7 | 2 | 1.58 | 4.1 |
| MHTG02020-DIN6 | 2 | 2000.00 | 8.50 | 300 | 24 | 24 | 22.0 | 62.5 | 125 | 16 | 8 | 7 | 11 | 7 | 31.7 | 1936.60 | 5.7 | 2 | 1.58 | 8.2 |
| MHTG02505-DIN6 | 2.5 | 500.00 | 8.50 | 60 | 24 | 24 | 21.5 | 62.5 | 125 | 4 | 9 | 7 | 11 | 7 | 31.7 | 436.60 | 5.7 | 2 | 1.98 | 2.1 |
| MHTG02510-DIN6 | 2.5 | 1000.00 | 8.50 | 120 | 24 | 24 | 21.5 | 62.5 | 125 | 8 | 9 | 7 | 11 | 7 | 31.7 | 936.60 | 5.7 | 2 | 1.98 | 4.1 |
| MHTG02520-DIN6 | 2.5 | 2000.00 | 8.50 | 240 | 24 | 24 | 21.5 | 62.5 | 125 | 16 | 9 | 7 | 11 | 7 | 31.7 | 1936.60 | 5.7 | 2 | 1.98 | 8.2 |
| MHTG03005-DIN6 | 3 | 500.00 | 10.30 | 50 | 29 | 29 | 26.0 | 62.5 | 125 | 4 | 9 | 10 | 15 | 9 | 35.0 | 430.00 | 7.7 | 2 | 2.87 | 3.0 |
| MHTG03010-DIN6 | 3 | 1000.00 | 10.30 | 100 | 29 | 29 | 26.0 | 62.5 | 125 | 8 | 9 | 10 | 15 | 9 | 35.0 | 930.00 | 7.7 | 2 | 2.87 | 6.0 |
| MHTG03020-DIN6 | 3 | 2000.00 | 10.30 | 200 | 29 | 29 | 26.0 | 62.5 | 125 | 16 | 9 | 10 | 15 | 9 | 35.0 | 1930.00 | 7.7 | 2 | 2.87 | 12.0 |
| MHTG04005-DIN6 | 4 | 506.67 | 13.80 | 38 | 39 | 39 | 35.0 | 62.5 | 125 | 4 | 12 | 10 | 15 | 9 | 33.3 | 433.00 | 7.7 | 2 | 5.15 | 5.5 |
| MHTG04010-DIN6 | 4 | 1000.00 | 13.80 | 75 | 39 | 39 | 35.0 | 62.5 | 125 | 8 | 12 | 10 | 15 | 9 | 33.3 | 933.40 | 7.7 | 2 | 5.15 | 10.8 |
| MHTG04020-DIN6 | 4 | 2000.00 | 13.80 | 150 | 39 | 39 | 35.0 | 62.5 | 125 | 16 | 12 | 10 | 15 | 9 | 33.3 | 1933.40 | 7.7 | 2 | 5.15 | 21.6 |
| MHTG05005-DIN6 | 5 | 500.00 | 17.40 | 30 | 49 | 39 | 34.0 | 62.5 | 125 | 4 | 12 | 14 | 20 | 13 | 37.5 | 425.00 | 11.7 | 3 | 8.08 | 6.8 |
| MHTG05010-DIN6 | 5 | 1000.00 | 17.40 | 60 | 49 | 39 | 34.0 | 62.5 | 125 | 8 | 12 | 14 | 20 | 13 | 37.5 | 925.00 | 11.7 | 3 | 8.08 | 13.6 |
| MHTG05020-DIN6 | 5 | 2000.00 | 17.40 | 120 | 49 | 39 | 34.0 | 62.5 | 125 | 16 | 12 | 14 | 20 | 13 | 37.5 | 1925.00 | 11.7 | 3 | 8.08 | 27.2 |
| MHTG06005-DIN6 | 6 | 500.00 | 20.90 | 25 | 59 | 49 | 43.0 | 62.5 | 125 | 4 | 16 | 18 | 26 | 17 | 37.5 | 425.00 | 15.7 | 3 | 11.68 | 10.3 |
| MHTG06010-DIN6 | 6 | 1000.00 | 20.90 | 50 | 59 | 49 | 43.0 | 62.5 | 125 | 8 | 16 | 18 | 26 | 17 | 37.5 | 925.00 | 15.7 | 3 | 11.68 | 20.5 |
| MHTG06020-DIN6 | 6 | 2000.00 | 20.90 | 100 | 59 | 49 | 43.0 | 62.5 | 125 | 16 | 16 | 18 | 26 | 17 | 37.5 | 1925.00 | 15.7 | 3 | 11.68 | 41.1 |
| MHTG08005-DIN6 | 8 | 480.00 | 28.00 | 18 | 79 | 79 | 71.0 | 60.0 | 120 | 4 | 25 | 22 | 33 | 21 | 120.0 | 240.00 | 19.7 | 4 | 20.85 | 21.3 |
| MHTG08010-DIN6 | 8 | 960.00 | 28.00 | 36 | 79 | 79 | 71.0 | 60.0 | 120 | 8 | 25 | 22 | 33 | 21 | 120.0 | 720.00 | 19.7 | 4 | 20.85 | 42.6 |
| MHTG08020-DIN6 | 8 | 1920.00 | 28.00 | 72 | 79 | 79 | 71.0 | 60.0 | 120 | 16 | 25 | 22 | 33 | 21 | 120.0 | 1680.00 | 19.7 | 4 | 20.85 | 85.1 |
