YYC Rack and Pinion
>
|
| Place of Origin | China |
| Brand Name | YYC |
| Certification | CE，ISO |
| Model Number | CHTGH02005 |

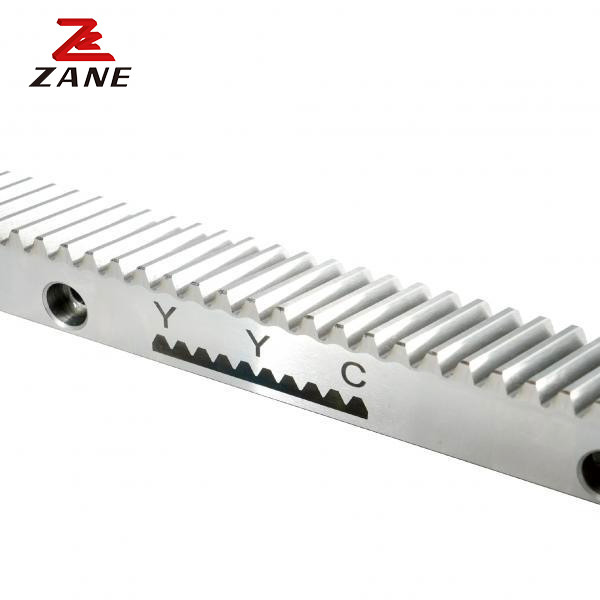

Manufacture High Precision Gear Rack And Pinion For Cnc Woodworking Machinery
(1) Suitable for CNC tools, milling machines, drilling machines, lathes, processing centers, cutting machines, woodworking machines, welding machines, stone machinery, etc. with heavy load, high precision, high rigidity, high speed and long travel.
(2) Suitable for factory automation rapid loading mechanism, robot arm grasping mechanism, intelligent warehouse, etc.
| Code |
Module |
L | L2 | No. of Teeth | B | A0 | Al | D 1 | No. of Holes | A | dl | 0D | E | D1 | I1 | d2 | f |
Fta kN |
KG | |
| CHTGH01505-DIN6 | 1.5 | 500.00 | 6.70 | 100 | 19 | 19 | 17.5 | 62.5 | 125 | 4 | 8 | 7 | 11 | 7 | 31.7 | 436.60 | 5.7 | 1.5 | 4.84 | 1.3 |
| CHTGH01510-DIN6 | 1.5 | 1000.00 | 6.70 | 200 | 19 | 19 | 17.5 | 62.5 | 125 | 8 | 8 | 7 | 11 | 7 | 31.7 | 936.60 | 5.7 | 1.5 | 4.84 | 2.6 |
| CHTGH02005-DIN6 | 2 | 500.00 | 8.50 | 75 | 24 | 24 | 22.0 | 62.5 | 125 | 4 | 8 | 7 | 11 | 7 | 31.7 | 436.60 | 5.7 | 2 | 8.15 | 2.1 |
| CHTGH02010-DIN6 | 2 | 1000.00 | 8.50 | 150 | 24 | 24 | 22.0 | 62.5 | 125 | 8 | 8 | 7 | 11 | 7 | 31.7 | 936.60 | 5.7 | 2 | 8.15 | 4.1 |
| CHTGH02020-DIN6 | 2 | 2000.00 | 8.50 | 300 | 24 | 24 | 22.0 | 62.5 | 125 | 16 | 8 | 7 | 11 | 7 | 31.7 | 1936.6 | 5.7 | 2 | 8.15 | 8.2 |
| CHTGH02505-DIN6 | 2.5 | 500.00 | 8.50 | 60 | 24 | 24 | 21.5 | 62.5 | 125 | 4 | 9 | 7 | 11 | 7 | 31.7 | 436.60 | 5.7 | 2 | 10.19 | 2.1 |
| CHTGH02510-DIN6 | 2.5 | 1000.00 | 8.50 | 120 | 24 | 24 | 21.5 | 62.5 | 125 | 8 | 9 | 7 | 11 | 7 | 31.7 | 936.60 | 5.7 | 2 | 10.19 | 4.1 |
| CHTGH02520-DIN6 | 2.5 | 2000.00 | 8.5 | 240 | 24 | 24 | 21.5 | 62.5 | 125 | 16 | 9 | 7 | 11 | 7 | 31.7 | 1936.6 | 5.7 | 2 | 10.19 | 8.2 |
| CHTGH03005-DIN6 | 3 | 500.00 | 10.30 | 50 | 29 | 29 | 26.0 | 62.5 | 125 | 4 | 9 | 10 | 15 | 9 | 35.0 | 430.00 | 7.7 | 2 | 14.77 | 3.0 |
| CHTGH03010-DIN6 | 3 | 1000.00 | 10.30 | 100 | 29 | 29 | 26.0 | 62.5 | 125 | 8 | 9 | 10 | 15 | 9 | 35.0 | 930.00 | 7.7 | 2 | 14.77 | 6.0 |
| CHTGH03020-DIN6 | 3 | 2000.00 | 10.30 | 200 | 29 | 29 | 26.0 | 62.5 | 125 | 16 | 9 | 10 | 15 | 9 | 35.0 | 1930.00 | 7.7 | 2 | 14.77 | 12.0 |
| CHTGH04005-DIN6 | 4 | 506.67 | 13.80 | 38 | 39 | 39 | 35.0 | 62.5 | 125 | 4 | 12 | 10 | 15 | 9 | 33.3 | 433.00 | 7.7 | 2 | 26.49 | 5.5 |
| CHTGH04010-DIN6 | 4 | 1000.00 | 13.80 | 75 | 39 | 39 | 35.0 | 62.5 | 125 | 8 | 12 | 10 | 15 | 9 | 33.3 | 933.40 | 7.7 | 2 | 26.49 | 10.8 |
| CHTGH04020-DIN6 | 4 | 2000.00 | 13.80 | 150 | 39 | 39 | 35.0 | 62.5 | 125 | 16 | 12 | 10 | 15 | 9 | 33.3 | 1933.40 | 7.7 | 2 | 26.49 | 21.6 |
| CHTGH05005-DIN6 | 5 | 500.00 | 17.40 | 30 | 49 | 39 | 34.0 | 62.5 | 125 | 4 | 12 | 14 | 20 | 13 | 37.5 | 425.00 | 11.7 | 3 | 41.60 | 6.8 |
| CHTGH05010-DIN6 | 5 | 1000.00 | 17.40 | 60 | 49 | 39 | 34.0 | 62.5 | 125 | 8 | 12 | 14 | 20 | 13 | 37.5 | 925.00 | 11.7 | 3 | 41.60 | 13.6 |
| CHTGH05020-DIN6 | 5 | 2000.00 | 17.40 | 120 | 49 | 39 | 34.0 | 62.5 | 125 | 16 | 12 | 14 | 20 | 13 | 37.5 | 1925.00 | 11.7 | 3 | 41.60 | 27.2 |
| CHTGH06005-DIN6 | 6 | 500.00 | 20.90 | 25 | 59 | 49 | 43.0 | 62.5 | 125 | 4 | 16 | 18 | 26 | 17 | 37.5 | 425.00 | 15.7 | 3 | 60.11 | 10.3 |
| CHTGH06010-DIN6 | 6 | 1000.00 | 20.90 | 50 | 59 | 49 | 43.0 | 62.5 | 125 | 8 | 16 | 18 | 26 | 17 | 37.5 | 925.00 | 15.7 | 3 | 60.11 | 20.5 |
| CHTGH06020-DIN6 | 6 | 2000.00 | 20.9 | 100 | 59 | 49 | 43.0 | 62.5 | 125 | 16 | 16 | 18 | 26 | 17 | 37.5 | 1925.00 | 15.7 | 3 | 60.11 | 41.1 |
| CHTGH08005-DIN6 | 8 | 480.00 | 28.00 | 18 | 79 | 79 | 71.0 | 60.0 | 120 | 4 | 25 | 22 | 33 | 21 | 120 | 240.00 | 19.7 | 4 | 107.31 | 21.3 |
| CHTGH08010-DIN6 | 8 | 960.00 | 28.00 | 36 | 79 | 79 | 71.0 | 60.0 | 120 | 8 | 25 | 22 | 33 | 21 | 120 | 720.00 | 19.7 | 4 | 107.31 | 42.6 |
| CHTGH08020-DIN6 | 8 | 1920.00 | 28.00 | 72 | 79 | 79 | 71.0 | 60.0 | 120 | 16 | 25 | 22 | 33 | 21 | 120.0 | 1680.00 | 19.7 | 4 | 107.31 | 85.1 |
| CHTGH10005-DIN6 | 10 | 500.00 | 35.11 | 15 | 99 | 99 | 89.0 | 62.5 | 125 | 4 | 32 | 33 | 48 | 32 | 125.0 | 250.00 | 19.7 | 5 | 168.10 | 64.8 |
| CHTGH10010-DIN6 | 10 | 1000.00 | 35.11 | 30 | 99 | 99 | 89.0 | 62.5 | 125 | 8 | 32 | 33 | 48 | 32 | 125.0 | 750.00 | 19.7 | 5 | 168.10 | 69.6 |
To assemble connected racks more smoothly, 2 ends of a standard rack would add half tooth which is convenient for next half tooth of next rack to be connected to a complete tooth. The following drawing shows how 2 racks connect and tooth gauge can control pitch position accurately.
With regards to connection of helical racks, it can be connected accurately by opposite tooth gauge.
1. When connecting racks, we recommend lock bores on the sides of rack first, and lock bores by the sequence of the foundation. With assembling the tooth gauge, pitch position of racks can be assembled accurately and completely.
2. Last, lock the position pins on 2 sides of rack; the assembly is completed.
