| Place of Origin | China |
| Brand Name | YYC |
| Certification | CE，ISO |
| Model Number | CHTGH02010 |

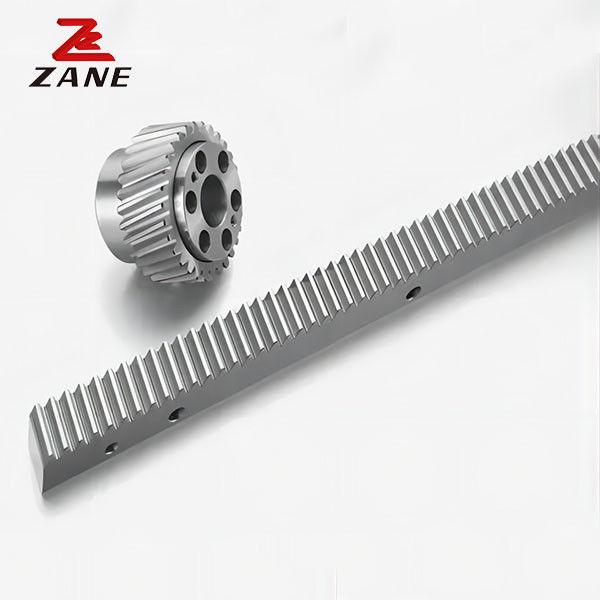

Taiwan YYC Helical Teeth Ground Racks M2 CHTGH DIN6 For Cnc Machine Spare Parts
The rack has a straight rack and is relatively simple to make. There are also inclined tooth lines, high strength and quiet, suitable for high-speed operation of the inclined rack. In addition, the helical rack and the helical gear with the same spiral Angle (the spiral direction is opposite) are used, but because it is the helical tooth line, axial force will also occur.
The devices using the rack are mainly handling devices, industrial machinery, printing machines, robots, automotive steering devices and so on. However, the rack is also often compared to the ball screw, which can also communicate linear motion.
| Code |
Module |
L | L2 | No. of Teeth | B | A0 | Al | D 1 | No. of Holes | A | dl | 0D | E | D1 | I1 | d2 | f |
Fta kN |
KG | |
| CHTGH01505-DIN6 | 1.5 | 500.00 | 6.70 | 100 | 19 | 19 | 17.5 | 62.5 | 125 | 4 | 8 | 7 | 11 | 7 | 31.7 | 436.60 | 5.7 | 1.5 | 4.84 | 1.3 |
| CHTGH01510-DIN6 | 1.5 | 1000.00 | 6.70 | 200 | 19 | 19 | 17.5 | 62.5 | 125 | 8 | 8 | 7 | 11 | 7 | 31.7 | 936.60 | 5.7 | 1.5 | 4.84 | 2.6 |
| CHTGH02005-DIN6 | 2 | 500.00 | 8.50 | 75 | 24 | 24 | 22.0 | 62.5 | 125 | 4 | 8 | 7 | 11 | 7 | 31.7 | 436.60 | 5.7 | 2 | 8.15 | 2.1 |
| CHTGH02010-DIN6 | 2 | 1000.00 | 8.50 | 150 | 24 | 24 | 22.0 | 62.5 | 125 | 8 | 8 | 7 | 11 | 7 | 31.7 | 936.60 | 5.7 | 2 | 8.15 | 4.1 |
| CHTGH02020-DIN6 | 2 | 2000.00 | 8.50 | 300 | 24 | 24 | 22.0 | 62.5 | 125 | 16 | 8 | 7 | 11 | 7 | 31.7 | 1936.6 | 5.7 | 2 | 8.15 | 8.2 |
| CHTGH02505-DIN6 | 2.5 | 500.00 | 8.50 | 60 | 24 | 24 | 21.5 | 62.5 | 125 | 4 | 9 | 7 | 11 | 7 | 31.7 | 436.60 | 5.7 | 2 | 10.19 | 2.1 |
| CHTGH02510-DIN6 | 2.5 | 1000.00 | 8.50 | 120 | 24 | 24 | 21.5 | 62.5 | 125 | 8 | 9 | 7 | 11 | 7 | 31.7 | 936.60 | 5.7 | 2 | 10.19 | 4.1 |
| CHTGH02520-DIN6 | 2.5 | 2000.00 | 8.5 | 240 | 24 | 24 | 21.5 | 62.5 | 125 | 16 | 9 | 7 | 11 | 7 | 31.7 | 1936.6 | 5.7 | 2 | 10.19 | 8.2 |
| CHTGH03005-DIN6 | 3 | 500.00 | 10.30 | 50 | 29 | 29 | 26.0 | 62.5 | 125 | 4 | 9 | 10 | 15 | 9 | 35.0 | 430.00 | 7.7 | 2 | 14.77 | 3.0 |
| CHTGH03010-DIN6 | 3 | 1000.00 | 10.30 | 100 | 29 | 29 | 26.0 | 62.5 | 125 | 8 | 9 | 10 | 15 | 9 | 35.0 | 930.00 | 7.7 | 2 | 14.77 | 6.0 |
| CHTGH03020-DIN6 | 3 | 2000.00 | 10.30 | 200 | 29 | 29 | 26.0 | 62.5 | 125 | 16 | 9 | 10 | 15 | 9 | 35.0 | 1930.00 | 7.7 | 2 | 14.77 | 12.0 |
| CHTGH04005-DIN6 | 4 | 506.67 | 13.80 | 38 | 39 | 39 | 35.0 | 62.5 | 125 | 4 | 12 | 10 | 15 | 9 | 33.3 | 433.00 | 7.7 | 2 | 26.49 | 5.5 |
| CHTGH04010-DIN6 | 4 | 1000.00 | 13.80 | 75 | 39 | 39 | 35.0 | 62.5 | 125 | 8 | 12 | 10 | 15 | 9 | 33.3 | 933.40 | 7.7 | 2 | 26.49 | 10.8 |
| CHTGH04020-DIN6 | 4 | 2000.00 | 13.80 | 150 | 39 | 39 | 35.0 | 62.5 | 125 | 16 | 12 | 10 | 15 | 9 | 33.3 | 1933.40 | 7.7 | 2 | 26.49 | 21.6 |
| CHTGH05005-DIN6 | 5 | 500.00 | 17.40 | 30 | 49 | 39 | 34.0 | 62.5 | 125 | 4 | 12 | 14 | 20 | 13 | 37.5 | 425.00 | 11.7 | 3 | 41.60 | 6.8 |
| CHTGH05010-DIN6 | 5 | 1000.00 | 17.40 | 60 | 49 | 39 | 34.0 | 62.5 | 125 | 8 | 12 | 14 | 20 | 13 | 37.5 | 925.00 | 11.7 | 3 | 41.60 | 13.6 |
| CHTGH05020-DIN6 | 5 | 2000.00 | 17.40 | 120 | 49 | 39 | 34.0 | 62.5 | 125 | 16 | 12 | 14 | 20 | 13 | 37.5 | 1925.00 | 11.7 | 3 | 41.60 | 27.2 |
| CHTGH06005-DIN6 | 6 | 500.00 | 20.90 | 25 | 59 | 49 | 43.0 | 62.5 | 125 | 4 | 16 | 18 | 26 | 17 | 37.5 | 425.00 | 15.7 | 3 | 60.11 | 10.3 |
| CHTGH06010-DIN6 | 6 | 1000.00 | 20.90 | 50 | 59 | 49 | 43.0 | 62.5 | 125 | 8 | 16 | 18 | 26 | 17 | 37.5 | 925.00 | 15.7 | 3 | 60.11 | 20.5 |
| CHTGH06020-DIN6 | 6 | 2000.00 | 20.9 | 100 | 59 | 49 | 43.0 | 62.5 | 125 | 16 | 16 | 18 | 26 | 17 | 37.5 | 1925.00 | 15.7 | 3 | 60.11 | 41.1 |
| CHTGH08005-DIN6 | 8 | 480.00 | 28.00 | 18 | 79 | 79 | 71.0 | 60.0 | 120 | 4 | 25 | 22 | 33 | 21 | 120 | 240.00 | 19.7 | 4 | 107.31 | 21.3 |
| CHTGH08010-DIN6 | 8 | 960.00 | 28.00 | 36 | 79 | 79 | 71.0 | 60.0 | 120 | 8 | 25 | 22 | 33 | 21 | 120 | 720.00 | 19.7 | 4 | 107.31 | 42.6 |
| CHTGH08020-DIN6 | 8 | 1920.00 | 28.00 | 72 | 79 | 79 | 71.0 | 60.0 | 120 | 16 | 25 | 22 | 33 | 21 | 120.0 | 1680.00 | 19.7 | 4 | 107.31 | 85.1 |
| CHTGH10005-DIN6 | 10 | 500.00 | 35.11 | 15 | 99 | 99 | 89.0 | 62.5 | 125 | 4 | 32 | 33 | 48 | 32 | 125.0 | 250.00 | 19.7 | 5 | 168.10 | 64.8 |
| CHTGH10010-DIN6 | 10 | 1000.00 | 35.11 | 30 | 99 | 99 | 89.0 | 62.5 | 125 | 8 | 32 | 33 | 48 | 32 | 125.0 | 750.00 | 19.7 | 5 | 168.10 | 69.6 |
Five advantages
1. Complete tooth type: straight teeth and oblique teeth, bar has square and round.
2. Complete specifications: module 1.5~ module 10, the rack can be connected. A single processing length of up to 2,000mm.
3. Rich materials: carbon steel, alloy steel and stainless steel. Day code: S45C, SCM21, SCM440, SUS304; The German code is C45E,16CrMo44, 42CrMo4, X5CrNi1810.
4. Process diversity: heat treatment/no heat treatment, surface grinding/no surface grinding, tooth surface grinding/no tooth surface grinding.
5. Grinding grade precision accumulated error 0.022mm/300mm;
