YYC Rack and Pinion
>
|
| Place of Origin | China |
| Brand Name | YYC |
| Certification | CE,ISO |
| Model Number | MHTG04005 |

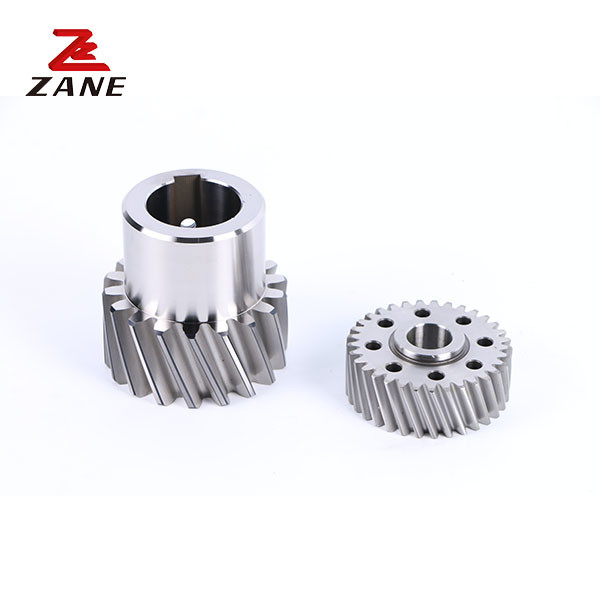

YYC Rack and Pinion is a high quality and precise Rack-and-Pinion-Gearing system designed to meet the highest demands. This system is composed of a Rack-and-Pinion-Gear and a Rack-and-Pinion-Assembly, and is capable of providing smooth and reliable motion in a wide range of applications. YYC Rack and Pinion is made of superior quality materials, and the surface is milled and ground to DIN 6 level of accuracy. It is further hardened to HRC 10-12° for a strong and durable performance. With 38 teeth, YYC Rack and Pinion offers superior accuracy and smooth operation.
|
Code |
Module |
L | L2 |
No. of Teeth |
B | A0 | Al | D 1 | No. of Holes | A | dl | D | E | DI | l1 | d2 | f | Fta kN | KG | |
| MHTG01505-DIN6 | 1.5 | 500.00 | 6.70 | 100 | 19 | 19 | 17.5 | 62.5 | 125 | 4 | 8 | 7 | 11 | 7 | 31.7 | 436.60 | 5.7 | 1.5 | 0.94 | 1.3 |
| MHTG01510-DIN6 | 1.5 | 1000.00 | 6.70 | 200 | 19 | 19 | 17.5 | 62.5 | 125 | 8 | 8 | 7 | 11 | 7 | 31.7 | 936.60 | 5.7 | 1.5 | 0.94 | 2.6 |
| MHTG02005-DIN6 | 2 | 500.00 | 8.50 | 75 | 24 | 24 | 22.0 | 62.5 | 125 | 4 | 8 | 7 | 11 | 7 | 31.7 | 436.60 | 5.7 | 2 | 1.58 | 2.1 |
| MHTG02010-DIN6 | 2 | 1000.00 | 8.50 | 150 | 24 | 24 | 22,0 | 62.5 | 125 | 8 | 8 | 7 | 11 | 7 | 31.7 | 936.60 | 5.7 | 2 | 1.58 | 4.1 |
| MHTG02020-DIN6 | 2 | 2000.00 | 8.50 | 300 | 24 | 24 | 22.0 | 62.5 | 125 | 16 | 8 | 7 | 11 | 7 | 31.7 | 1936.60 | 5.7 | 2 | 1.58 | 8.2 |
| MHTG02505-DIN6 | 2.5 | 500.00 | 8.50 | 60 | 24 | 24 | 21.5 | 62.5 | 125 | 4 | 9 | 7 | 11 | 7 | 31.7 | 436.60 | 5.7 | 2 | 1.98 | 2.1 |
| MHTG02510-DIN6 | 2.5 | 1000.00 | 8.50 | 120 | 24 | 24 | 21.5 | 62.5 | 125 | 8 | 9 | 7 | 11 | 7 | 31.7 | 936.60 | 5.7 | 2 | 1.98 | 4.1 |
| MHTG02520-DIN6 | 2.5 | 2000.00 | 8.50 | 240 | 24 | 24 | 21.5 | 62.5 | 125 | 16 | 9 | 7 | 11 | 7 | 31.7 | 1936.60 | 5.7 | 2 | 1.98 | 8.2 |
| MHTG03005-DIN6 | 3 | 500.00 | 10.30 | 50 | 29 | 29 | 26.0 | 62.5 | 125 | 4 | 9 | 10 | 15 | 9 | 35.0 | 430.00 | 7.7 | 2 | 2.87 | 3.0 |
| MHTG03010-DIN6 | 3 | 1000.00 | 10.30 | 100 | 29 | 29 | 26.0 | 62.5 | 125 | 8 | 9 | 10 | 15 | 9 | 35.0 | 930.00 | 7.7 | 2 | 2.87 | 6.0 |
| MHTG03020-DIN6 | 3 | 2000.00 | 10.30 | 200 | 29 | 29 | 26.0 | 62.5 | 125 | 16 | 9 | 10 | 15 | 9 | 35.0 | 1930.00 | 7.7 | 2 | 2.87 | 12.0 |
| MHTG04005-DIN6 | 4 | 506.67 | 13.80 | 38 | 39 | 39 | 35.0 | 62.5 | 125 | 4 | 12 | 10 | 15 | 9 | 33.3 | 433.00 | 7.7 | 2 | 5.15 | 5.5 |
| MHTG04010-DIN6 | 4 | 1000.00 | 13.80 | 75 | 39 | 39 | 35.0 | 62.5 | 125 | 8 | 12 | 10 | 15 | 9 | 33.3 | 933.40 | 7.7 | 2 | 5.15 | 10.8 |
| MHTG04020-DIN6 | 4 | 2000.00 | 13.80 | 150 | 39 | 39 | 35.0 | 62.5 | 125 | 16 | 12 | 10 | 15 | 9 | 33.3 | 1933.40 | 7.7 | 2 | 5.15 | 21.6 |
| MHTG05005-DIN6 | 5 | 500.00 | 17.40 | 30 | 49 | 39 | 34.0 | 62.5 | 125 | 4 | 12 | 14 | 20 | 13 | 37.5 | 425.00 | 11.7 | 3 | 8.08 | 6.8 |
| MHTG05010-DIN6 | 5 | 1000.00 | 17.40 | 60 | 49 | 39 | 34.0 | 62.5 | 125 | 8 | 12 | 14 | 20 | 13 | 37.5 | 925.00 | 11.7 | 3 | 8.08 | 13.6 |
| MHTG05020-DIN6 | 5 | 2000.00 | 17.40 | 120 | 49 | 39 | 34.0 | 62.5 | 125 | 16 | 12 | 14 | 20 | 13 | 37.5 | 1925.00 | 11.7 | 3 | 8.08 | 27.2 |
| MHTG06005-DIN6 | 6 | 500.00 | 20.90 | 25 | 59 | 49 | 43.0 | 62.5 | 125 | 4 | 16 | 18 | 26 | 17 | 37.5 | 425.00 | 15.7 | 3 | 11.68 | 10.3 |
| MHTG06010-DIN6 | 6 | 1000.00 | 20.90 | 50 | 59 | 49 | 43.0 | 62.5 | 125 | 8 | 16 | 18 | 26 | 17 | 37.5 | 925.00 | 15.7 | 3 | 11.68 | 20.5 |
| MHTG06020-DIN6 | 6 | 2000.00 | 20.90 | 100 | 59 | 49 | 43.0 | 62.5 | 125 | 16 | 16 | 18 | 26 | 17 | 37.5 | 1925.00 | 15.7 | 3 | 11.68 | 41.1 |
| MHTG08005-DIN6 | 8 | 480.00 | 28.00 | 18 | 79 | 79 | 71.0 | 60.0 | 120 | 4 | 25 | 22 | 33 | 21 | 120.0 | 240.00 | 19.7 | 4 | 20.85 | 21.3 |
| MHTG08010-DIN6 | 8 | 960.00 | 28.00 | 36 | 79 | 79 | 71.0 | 60.0 | 120 | 8 | 25 | 22 | 33 | 21 | 120.0 | 720.00 | 19.7 | 4 | 20.85 | 42.6 |
| MHTG08020-DIN6 | 8 | 1920.00 | 28.00 | 72 | 79 | 79 | 71.0 | 60.0 | 120 | 16 | 25 | 22 | 33 | 21 | 120.0 | 1680.00 | 19.7 | 4 | 20.85 | 85.1 |
Precise Motion Control: The rack and pinion mechanism provides accurate and repeatable linear motion. It is capable of achieving high positioning precision, making it suitable for applications that require precise movements.
High Efficiency: The meshing of the teeth results in a direct transfer of motion, minimizing energy loss. This makes the YYC rack and pinion system highly efficient compared to other linear motion mechanisms.
Compact Design: The rack and pinion system has a compact and space-saving design, making it adaptable to various installation environments. It offers a high power-to-size ratio, allowing for efficient use of available space.
Versatility: YYC rack and pinion systems are versatile and can be used in a wide range of applications. They can handle both light and heavy loads, making them suitable for diverse industries such as automotive, manufacturing, robotics, and more.
Automotive: Rack and pinion steering systems are widely used in automobiles to convert the rotational motion of the steering wheel into linear motion, enabling precise control of the vehicle's direction.
Industrial Machinery: The rack and pinion mechanism is employed in various industrial machinery, such as CNC machines, cutting systems, packaging equipment, and material handling systems, to achieve accurate linear motion.
Robotics: Rack and pinion systems play a crucial role in robotic applications, enabling precise and controlled movement of robot arms, grippers, and other components.
Aerospace: The aerospace industry utilizes rack and pinion systems in applications such as aircraft flaps and landing gear mechanisms, where reliable and precise linear motion is essential.
Construction: Rack and pinion systems are employed in construction equipment such as cranes and lifts to enable vertical movement with high precision and safety.
