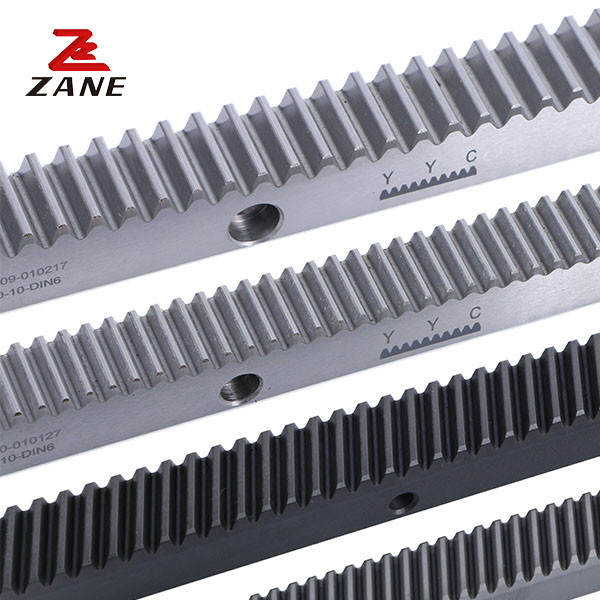

YYC Rack and Pinion
>
|
| Place of Origin | China |
| Brand Name | YYC |
| Certification | CE,ISO |
| Model Number | CHTMH01510 |
YYC Rack and Pinion offers superior performance and reliability, and its superior design and manufacturing process ensures maximum durability and performance. Its superior quality and performance make it an ideal choice for industrial automation applications. It is also easy to install and maintain, making it a great choice for any industrial application.
YYC Rack and Pinion is an ideal choice for industrial automation applications, as it offers superior performance, durability, and reliability. With its high load capacity and precision, it can be used in a wide range of motion control applications. It is also very easy to set up and maintain, making it an ideal choice for a variety of industrial applications.
|
Code |
Module |
L | L2 | No. of Teeth | B | A0 | Al | D 1 | No. of Holes | A | 0dl | 0D | E | DI | 11 | 0d2 | f |
Fta kN |
KG | |
| CHTMH01510-DIN10 | 1.5 | 1000 | 6.00 | 200 | 17 | 17 | 15.5 | 62.5 | 125 | 8 | 7 | 6 | 9.5 | 7 | 31.7 | 936.6 | 5.7 | 1.5 | 3.18 | 2.1 |
| CHTMH02010-DIN10 | 2 | 1000 | 8.50 | 150 | 24 | 24 | 22 | 62.5 | 125 | 8 | 8 | 7 | 11 | 7 | 31.7 | 936.6 | 5.7 | 2 | 5.98 | 4.1 |
| CHTMH02020-DIN10 | 2 | 2000 | 8.50 | 300 | 24 | 24 | 22 | 62.5 | 125 | 16 | 8 | 7 | 11 | 7 | 31.7 | 1936.6 | 5.7 | 2 | 5.98 | 8.2 |
| CHTMH03010-DIN10 | 3 | 1000 | 10.30 | 100 | 29 | 29 | 26 | 62.5 | 125 | 8 | 9 | 10 | 15 | 9 | 35.0 | 930.0 | 7.7 | 2 | 10.83 | 6.0 |
| CHTMH03020-DIN10 | 3 | 2000 | 10.30 | 200 | 29 | 29 | 26 | 62.5 | 125 | 16 | 9 | 10 | 15 | 9 | 35.0 | 1930.0 | 7.7 | 2 | 10.83 | 12.0 |
| CHTMH04010-DIN10 | 4 | 1000 | 13.80 | 75 | 39 | 39 | 35 | 62.5 | 125 | 8 | 12 | 10 | 15 | 9 | 33.3 | 933.4 | 7.7 | 2 | 19.42 | 10.8 |
| CHTMH04020-DIN10 | 4 | 2000 | 13.80 | 150 | 39 | 39 | 35 | 62.5 | 125 | 16 | 12 | 10 | 15 | 9 | 33.3 | 1933.4 | 7.7 | 2 | 19.42 | 21.6 |
| CHTMH05010-DIN10 | 5 | 1000 | 17.40 | 60 | 49 | 39 | 34 | 62.5 | 125 | 8 | 12 | 14 | 20 | 13 | 37.5 | 925.0 | 11.7 | 3 | 30.51 | 13.6 |
| CHTMH05020-DIN10 | 5 | 2000 | 17.40 | 120 | 49 | 39 | 34 | 62.5 | 125 | 16 | 12 | 14 | 20 | 13 | 37.5 | 1925.0 | 11.7 | 3 | 30.51 | 27.2 |
| CHTMH06010-DIN10 | 6 | 1000 | 20.90 | 50 | 59 | 49 | 43 | 62.5 | 125 | 8 | 16 | 18 | 26 | 17 | 37.5 | 925.0 | 15.7 | 3 | 44.08 | 20.5 |
| CHTMH06020-DIN10 | 6 | 2000 | 20.90 | 100 | 59 | 49 | 43 | 62.5 | 125 | 16 | 16 | 18 | 26 | 17 | 37.5 | 1925.0 | 15.7 | 3 | 44.08 | 41,1 |
| CHTMH08010-DIN10 | 8 | 960 | 28.00 | 36 | 79 | 79 | 71 | 60 | 120 | 8 | 25 | 22 | 33 | 21 | 120.0 | 720.0 | 19.7 | 4 | 78.69 | 42.6 |
| CHTMH08020-DIN10 | 8 | 1920 | 28.00 | 72 | 79 | 79 | 71 | 60 | 120 | 16 | 25 | 22 | 33 | 21 | 120.0 | 1680.0 | 19.7 | 4 | 78.69 | 85.1 |
| CHTMH10010-DIN10 | 10 | 1000 | 35.11 | 30 | 99 | 99 | 89 | 62.5 | 125 | 8 | 32 | 33 | 48 | 32 | 125.0 | 750.0 | 19.7 | 5 | 123.27 | 69.6 |
