YYC Rack and Pinion
>
|
| Place of Origin | China |
| Brand Name | YYC |
| Certification | CE,ISO |
| Model Number | CHTMH05010 |

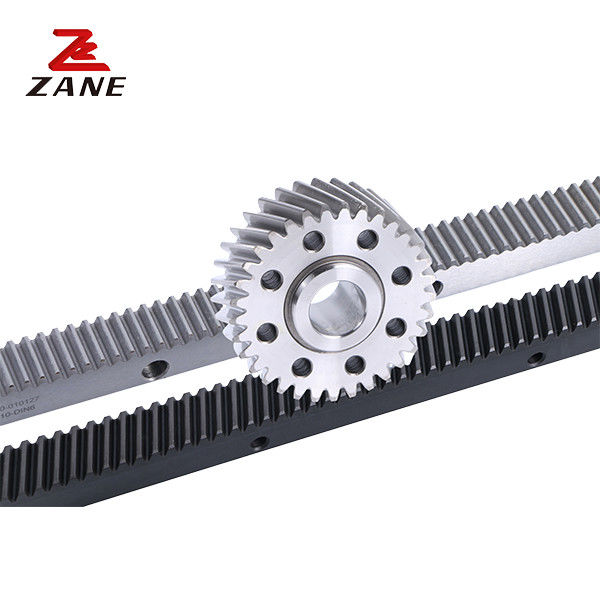

YYC Rack and Pinion is a high-performance motion control product with superior quality and durability. It is an ideal solution for industrial automation. The product is comprised of a drive unit and a rack-and-pinion-actuator, which together create a powerful rack-and-pinion-drive. It is constructed with high-grade S50C material, with a hardness of HRC 50-55°, which guarantees the product a high degree of durability. It also meets the DIN 5 quality grade requirements, making it one of the best Rack-and-Pinion-Gear products on the market. YYC Rack and Pinion is a reliable and efficient solution for your industrial automation needs.
|
Code |
Module |
L | L2 | No. of Teeth | B | A0 | Al | D 1 | No. of Holes | A | 0dl | 0D | E | DI | 11 | 0d2 | f |
Fta kN |
KG | |
| CHTMH01510-DIN10 | 1.5 | 1000 | 6.00 | 200 | 17 | 17 | 15.5 | 62.5 | 125 | 8 | 7 | 6 | 9.5 | 7 | 31.7 | 936.6 | 5.7 | 1.5 | 3.18 | 2.1 |
| CHTMH02010-DIN10 | 2 | 1000 | 8.50 | 150 | 24 | 24 | 22 | 62.5 | 125 | 8 | 8 | 7 | 11 | 7 | 31.7 | 936.6 | 5.7 | 2 | 5.98 | 4.1 |
| CHTMH02020-DIN10 | 2 | 2000 | 8.50 | 300 | 24 | 24 | 22 | 62.5 | 125 | 16 | 8 | 7 | 11 | 7 | 31.7 | 1936.6 | 5.7 | 2 | 5.98 | 8.2 |
| CHTMH03010-DIN10 | 3 | 1000 | 10.30 | 100 | 29 | 29 | 26 | 62.5 | 125 | 8 | 9 | 10 | 15 | 9 | 35.0 | 930.0 | 7.7 | 2 | 10.83 | 6.0 |
| CHTMH03020-DIN10 | 3 | 2000 | 10.30 | 200 | 29 | 29 | 26 | 62.5 | 125 | 16 | 9 | 10 | 15 | 9 | 35.0 | 1930.0 | 7.7 | 2 | 10.83 | 12.0 |
| CHTMH04010-DIN10 | 4 | 1000 | 13.80 | 75 | 39 | 39 | 35 | 62.5 | 125 | 8 | 12 | 10 | 15 | 9 | 33.3 | 933.4 | 7.7 | 2 | 19.42 | 10.8 |
| CHTMH04020-DIN10 | 4 | 2000 | 13.80 | 150 | 39 | 39 | 35 | 62.5 | 125 | 16 | 12 | 10 | 15 | 9 | 33.3 | 1933.4 | 7.7 | 2 | 19.42 | 21.6 |
| CHTMH05010-DIN10 | 5 | 1000 | 17.40 | 60 | 49 | 39 | 34 | 62.5 | 125 | 8 | 12 | 14 | 20 | 13 | 37.5 | 925.0 | 11.7 | 3 | 30.51 | 13.6 |
| CHTMH05020-DIN10 | 5 | 2000 | 17.40 | 120 | 49 | 39 | 34 | 62.5 | 125 | 16 | 12 | 14 | 20 | 13 | 37.5 | 1925.0 | 11.7 | 3 | 30.51 | 27.2 |
| CHTMH06010-DIN10 | 6 | 1000 | 20.90 | 50 | 59 | 49 | 43 | 62.5 | 125 | 8 | 16 | 18 | 26 | 17 | 37.5 | 925.0 | 15.7 | 3 | 44.08 | 20.5 |
| CHTMH06020-DIN10 | 6 | 2000 | 20.90 | 100 | 59 | 49 | 43 | 62.5 | 125 | 16 | 16 | 18 | 26 | 17 | 37.5 | 1925.0 | 15.7 | 3 | 44.08 | 41,1 |
| CHTMH08010-DIN10 | 8 | 960 | 28.00 | 36 | 79 | 79 | 71 | 60 | 120 | 8 | 25 | 22 | 33 | 21 | 120.0 | 720.0 | 19.7 | 4 | 78.69 | 42.6 |
| CHTMH08020-DIN10 | 8 | 1920 | 28.00 | 72 | 79 | 79 | 71 | 60 | 120 | 16 | 25 | 22 | 33 | 21 | 120.0 | 1680.0 | 19.7 | 4 | 78.69 | 85.1 |
| CHTMH10010-DIN10 | 10 | 1000 | 35.11 | 30 | 99 | 99 | 89 | 62.5 | 125 | 8 | 32 | 33 | 48 | 32 | 125.0 | 750.0 | 19.7 | 5 | 123.27 | 69.6 |
