P0 High Precision Ball Screws Automation 12mm Ball Screws With Low Friction
  • P0 High Precision Ball Screws Automation 12mm Ball Screws With Low Friction
  • P0 High Precision Ball Screws Automation 12mm Ball Screws With Low Friction
P0 High Precision Ball Screws Automation 12mm Ball Screws With Low Friction

P0 High Precision Ball Screws Automation 12mm Ball Screws With Low Friction

Place of Origin China
Brand Name ZANE
Certification CE，ISO
Model Number UFDTYPE
Product Details
Product Name:
Ball Screw
Width Of Guide Rail:
3/5/7/9/12/15/20mm
Preloading:
P0, P1, P2, P3
Pitch:
2, 4, 8 Mm
Series:
UFDTYPE
BLOCK:
Flange
Highlight:

P0 high precision ball screws

,

Low friction high precision ball screws

,

Automation 12mm ball screw

Product Description

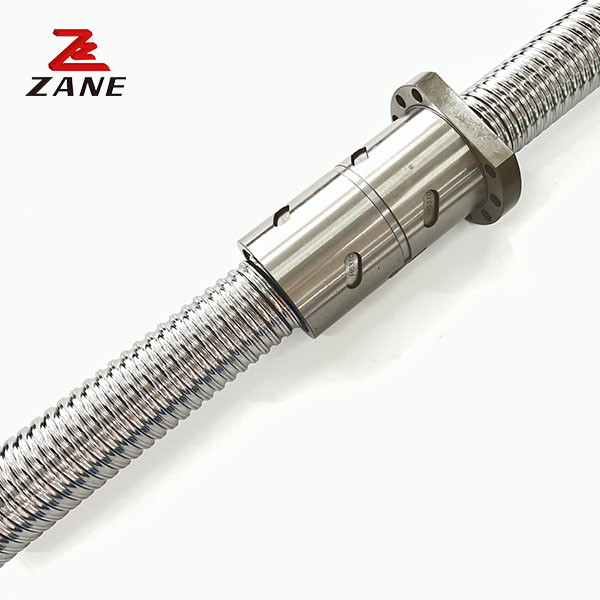

High Precision Rolled Ball Screws for Automation UFDTYPE



NO.1 About Ball screw

Ball Screw is made of screw and ball nut . It's function is to turn the rotary motion into linear motion.,which is a future extension and development of ball screw. The significance of the development is to move into a rolling bearing from sliding action. With little frication, Ball Screw are widely used into various industrial equipment and precision instruments.

NO.2 Feature of ball screw

  • High efficiency of transferring
  • Smooth movement
  • High precision,duration, and reliability
  • No gap and preloading
  • Produced using auto turning CNC machines
  • Precision ball screws
  • Low friction
  • Durable design
  • High-speed operation

P0 High Precision Ball Screws Automation 12mm Ball Screws With Low Friction 0



Model Outer diameter lead Steel ball diameter nut size Bead laps Dynamic rated load Static rated load

rigid

kgf/µm
d I Da D A B L W H X Q n Ca Coa k
01604-T4 16 4 2. 381 28 48 10 80 38 40 5.5 M6 4x1 973 2406 43
01605-T4 5 3.175 28 48 10 100 38 40 5.5 M6 4x1 1380 3052 44
01610-T3 20 10 3. 175 28 48 10 118 38 40 5.5 M6 3x1 1103 2401 35
02004-T4 4 2. 381 36 58 10 80 47 44 6.6 M6 4x1 1066 2987 51
02005-T4 5 3.175 36 58 10 101 47 44 6.6 M6 4x1 1551 3875 53
02504-T4 25 4 2. 381 40 62 10 80 51 48 6.6 M6 4x1 1180 3795 60
02505-T4 5 3. 175 40 62 10 101 51 48 6.6 M6 4x1 1724 4904 62
02506-T4 6 3. 969 40 62 10 105 51 48 6.6 M6 4x1 2318 6057 64
02508-T4 8 4. 762 40 62 10 120 51 48 6.6 M6 4x1 2963 7313 67
02510-T4 10 4. 762 40 62 12 145 51 48 6.6 M6 4x1 2954 7295 67
03204-T4 32 4 2. 381 50 80 12 80 65 62 9 M6 4x1 1296 4838 71
03205-T4 5 3. 175 50 80 12 102 65 62 9 M6 4x1 1922 6343 74
03206-T4 6 3. 969 50 80 12 105 65 62 9 M6 4x1 2632 7979 78
03208-T4 8 4. 762 50 80 12 122 65 62 9 M6 4x1 3387 9622 82
03210-T4 10 6. 350 50 80 12 162 65 62 9 M6 4x1 4805 12208 82
04005-T4 40 5 3. 175 63 93 14 105 78 70 9 M8 4x1 2110 7988 87
04006-T4 6 3. 969 63 93 14 108 78 70 9 M6 4x1 2873 9913 91
04008-T4 8 4. 762 63 93 14 132 78 70 9 M6 4x1 3712 11947 96
04010-T4 50 10 6. 350 63 93 14 165 78 70 9 M8 4x1 5399 15500 99
05010-T4 10 6. 350 75 110 16 171 93 85 11 M8 4x1 6004 19614 117
05020-T4 63 20 7. 144 75 110 16 280 93 85 11 M8 4x1 7142 22588 126
06310-T4 10 6. 350 90 125 18 182 108 95 11 M8 4x1 6719 25358 139
06320-T4 20 9. 525 95 135 20 290 115 100 13.5 M8 4x1 11444 36653 152
08010-T4 80 10 6. 350 105 145 20 182 125 110 13.5 M8 4x1 7346 31953 156
08020-T4 20 9. 525 125 165 25 295 145 130 13.5 M8 4x1 12911 47747 187
10020-T4 100 20 9. 525 150 150 30 340 170 155 17.5 M8 4x1 14303 60698 222






Standard size specification comparison table





Model Lead accuracy class Thread direction threaded number





Standard screw code





Applicable nut types

Outer diameter

d



Lead 1

Bead diameter

Da

 L/R
40 5 3.175 C7,C5,C3 R/L 1 04005 l,U,S
6 3.969 C7,C5,C3 R 1 04006 U
8 4.762 C7,C5,C3 R 1 04008 U
10 6.35 C7,C5,C3 R/L 1 04010 l,U
40 6.35 C7,C5,C3 R 2 04040 E
80 6.35 C7,C5,C3 R 2 04080 E
50 5 3.175 C7,C5,C3 R 1 05005 S
10 6.35 C7,C5,C3 R/L 1 05010 l,U
50 7.938 C7,C5,C3 R 2 05050 E
100 7.938 C7,C5,C3 R 2 50100 E
63 10 6.35 C7,C5,C3 R 1 06310 l,U
20 9.525 C7,C5,C3 R 1 06320 U
80 10 6.35 C7,C5,C3 R 1 08010 l,U
20 9.525 C7,C5,C3 R 1 08020 U





Precision grinding screw standard size specification comparison table





Model Lead accuracy class Thread direction threaded number





Standard screw code





Applicable nut types

Outer diameter

d



Lead 1

 Bead diameter Da L/R
4 1 0.8 C7,C5,C3 R 1 00401 M
6 1 0.8 C7,C5,C3 R 1 00601 M
8 1 0.8 C7,C5,C3 R/L 1 00801 M
2 1.2 C7,C5,C3 R/L 1 00802 M
2.5 1.2 C7,C5,C3 R 1 0082.5 M,T
10 2 1.2 C7,C5,C3 R/L 1 01002 M,T
4 2 C7,C5,C3 R 1 01004 M,T
12 2 1.2 C7,C5,C3 R/L 1 01202 M
4 2.5 C7,C5,C3 R 1 01204 U,T
5 2.5 C7,C5,C3 R 1 01205-A U,T,S
5 2.5 C7,C5,C3 R 1 01205-B M
10 2.5 C7,C5,C3 R 2 01210-B VS
14 2 1.2 C7,C5,C3 R/L 1 01402 M
4 2.5 C7,C5,C3 R 1 01404 T
16 2 1.2 C7,C5,C3 R/L 1 01602 M
4 2.381 C7,C5,C3 R 1 01604 (N) l,U,T
5 3.175 C7,C5,C3 R/L 1 01605 l,U,T
10 3.175 C7,C5,C3 R/L 2 01610 l,U,T
16 2.778 C7,C5,C3 R 2 01616 E
32 2.778 C7,C5,C3 R 2 01632 E
20 4 2.381 C7,C5,C3 R 1 02004 (N) l,U
5 3.175 C7,C5,C3 R/L 1 02005 l,U,T,S
10 3.969 C7,C5,C3 R 1 02010 VS
20 3.175 C7,C5,C3 R 2 02020 VS,E,S
40 3.175 C7,C5,C3 R 2 02040 E
25 4 2.381 C7,C5,C3 R 1 02504 (N) l,U
5 3.175 C7,C5,C3 R/L 1 02505 l,U,T,S
6 3.969 C7,C5,C3 R 1 02506 U
8 4.762 C7,C5,C3 R 1 02508 U
10 4.762 C7,C5,C3 R 1 02510-A l,U,T
25 3.969 C7,C5,C3 R 2 02525 E
50 3.969 C7,C5,C3 R 2 02550 E
32 4 2.381 C7,C5,C3 R 1 03204 (N) l,U
5 3.175 C7,C5,C3 R/L 1 03205 l,U,S
6 3.969 C7,C5,C3 R 1 03206 U
8 4.762 C7,C5,C3 R 1 03208 U
10 6.35 C7,C5,C3 R/L 1 03210 l,U
20 6.35 C7,C5,C3 R 1 03220 E
32 4.762 C7,C5,C3 R 2 03232 E
64 4.762 C7,C5,C3 R 2 03264 E
