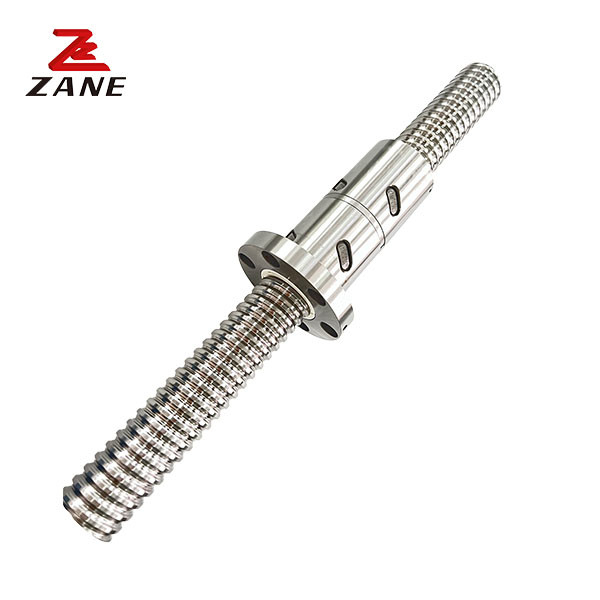

ISO High Precision C5 Precision Degree 25mm Lead Screw UFS Ball Screw
1.Description
Ball screws are one of the many components seen throughout factory automation applications. Using the same concept seen with a bolt and nut, this assembly uses the rotary motion of the screw to actuate the nut in a linear direction. A ball screw achieves its smooth linear motion by recirculating steel balls along the screw groove within the nut. The steel ball recirculation method differentiates the motion characteristics of the ball screw.
2.Specification
| Model | Outer diameter | lead | Steel ball diameter | nut size | Bead laps | Dynamic rated load | Static rated load |
rigid kgf/µm |
|||||||
| d | I | Da | D | A | B | L | W | H | X | Q | n | Ca | Coa | k | |
| 01204-T4 | 12 | 4 | 2.5 | 24 | 40 | 10 | 40 | 32 | 30 | 4. 5 | - | 4x1 | 902 | 1884 | 26 |
| 01604-T4 | 16 | 4 | 2. 381 | 28 | 48 | 10 | 40 | 38 | 40 | 5.5 | M6 | 4x1 | 973 | 2406 | 32 |
| 01605-T3 | 5 | 3.175 | 28 | 48 | 10 | 42 | 38 | 40 | 5.5 | M6 | 3x1 | 780 | 1168 | 32 | |
| 01605-T4 | 5 | 3.175 | 28 | 48 | 10 | 50 | 38 | 40 | 5. 5 | M6 | 4x1 | 1380 | 3052 | 32 | |
| 01610-T3 | 10 | 3.175 | 28 | 48 | 10 | 57 | 38 | 40 | 5.5 | M6 | 3x1 | 1103 | 2401 | 26 | |
| 02004-T4 | 20 | 4 | 2.381 | 36 | 58 | 10 | 42 | 47 | 44 | 6.6 | M6 | 4x1 | 1066 | 2987 | 38 |
| 02005-T4 | 5 | 3. 175 | 36 | 58 | 10 | 51 | 47 | 44 | 6. 6 | M6 | 4x1 | 1551 | 3875 | 39 | |
| 02504-T4 | 25 | 4 | 2. 381 | 40 | 62 | 10 | 42 | 51 | 48 | 6.6 | M6 | 4x1 | 1180 | 3795 | 43 |
| 02505-T4 | 5 | 3.175 | 40 | 62 | 10 | 51 | 51 | 48 | 6.6 | M6 | 4x1 | 1724 | 4904 | 45 | |
| 02506-T4 | 6 | 3. 969 | 40 | 62 | 10 | 54 | 51 | 48 | 6.6 | M6 | 4x1 | 2318 | 6057 | 47 | |
| 02508-T4 | 8 | 4. 762 | 40 | 62 | 10 | 63 | 51 | 48 | 6.6 | M6 | 4x1 | 2963 | 7313 | 49 | |
| 02510-T4 | 10 | 4. 762 | 40 | 62 | 12 | 85 | 51 | 48 | 6.6 | M6 | 4x1 | 2954 | 7295 | 50 | |
| 03204-T4 | 32 | 4 | 2. 381 | 50 | 80 | 12 | 44 | 65 | 62 | 9 | M6 | 4x1 | 1296 | 4838 | 51 |
| 03205-T4 | 5 | 3. 175 | 50 | 80 | 12 | 52 | 65 | 62 | 9 | M6 | 4x1 | 1922 | 6343 | 54 | |
| 03206-T4 | 6 | 3. 969 | 50 | 80 | 12 | 57 | 65 | 62 | 9 | M6 | 4x1 | 2632 | 7979 | 57 | |
| 03208-T4 | 8 | 4. 762 | 50 | 80 | 12 | 65 | 65 | 62 | 9 | M6 | 4x1 | 3387 | 9622 | 60 | |
| 03210-T4 | 10 | 6. 350 | 50 | 80 | 12 | 90 | 65 | 62 | 9 | M6 | 4x1 | 4805 | 12208 | 61 | |
| 04005-T4 | 40 | 5 | 3. 175 | 63 | 93 | 14 | 55 | 78 | 70 | 9 | M8 | 4x1 | 2110 | 7988 | 63 |
| 04006-T4 | 6 | 3. 969 | 63 | 93 | 14 | 60 | 78 | 70 | 9 | M6 | 4x1 | 2873 | 9913 | 66 | |
| 04008-T4 | 8 | 4. 762 | 63 | 93 | 14 | 67 | 78 | 70 | 9 | M6 | 4x1 | 3714 | 11947 | 70 | |
| 04010-T4 | 10 | 6. 350 | 63 | 93 | 14 | 93 | 78 | 70 | 9 | M8 | 4x1 | 5399 | 15500 | 73 | |
| 05010-T4 | 50 | 10 | 6. 350 | 75 | 110 | 16 | 93 | 93 | 85 | 11 | M8 | 4x1 | 6004 | 19614 | 85 |
| 05020-T4 | 20 | 7. 144 | 75 | 110 | 16 | 138 | 93 | 85 | 11 | M8 | 4x1 | 7142 | 22588 | 94 | |
| 06310-T4 | 63 | 10 | 6. 350 | 90 | 125 | 18 | 98 | 108 | 95 | 11 | M8 | 4x1 | 6719 | 25358 | 99 |
| 06320-T4 | 20 | 9. 525 | 95 | 135 | 20 | 149 | 115 | 100 | 13.5 | M8 | 4x1 | 11444 | 36653 | 112 | |
| 08010-T4 | 80 | 10 | 6. 350 | 105 | 145 | 20 | 98 | 125 | 110 | 13.5 | M8 | 4x1 | 7346 | 31953 | 109 |
| 08020-T4 | 20 | 9. 525 | 125 | 165 | 25 | 154 | 145 | 130 | 13.5 | M8 | 4x1 | 12911 | 47747 | 138 | |
| 10020-T4 | 100 | 20 | 9. 525 | 150 | 202 | 30 | 180 | 170 | 155 | 17.5 | M8 | 4x1 | 14303 | 60698 | 162 |
Standard size specification comparison table
| Model | Lead accuracy class | Thread direction | threaded number |
Standard screw code |
Applicable nut types |
||||
|
Outer diameter d |
Lead 1 |
Bead diameter Da |
L/R | ||||||
| 40 | 5 | 3.175 | C7,C5,C3 | R/L | 1 | 04005 | l,U,S | ||
| 6 | 3.969 | C7,C5,C3 | R | 1 | 04006 | U | |||
| 8 | 4.762 | C7,C5,C3 | R | 1 | 04008 | U | |||
| 10 | 6.35 | C7,C5,C3 | R/L | 1 | 04010 | l,U | |||
| 40 | 6.35 | C7,C5,C3 | R | 2 | 04040 | E | |||
| 80 | 6.35 | C7,C5,C3 | R | 2 | 04080 | E | |||
| 50 | 5 | 3.175 | C7,C5,C3 | R | 1 | 05005 | S | ||
| 10 | 6.35 | C7,C5,C3 | R/L | 1 | 05010 | l,U | |||
| 50 | 7.938 | C7,C5,C3 | R | 2 | 05050 | E | |||
| 100 | 7.938 | C7,C5,C3 | R | 2 | 50100 | E | |||
| 63 | 10 | 6.35 | C7,C5,C3 | R | 1 | 06310 | l,U | ||
| 20 | 9.525 | C7,C5,C3 | R | 1 | 06320 | U | |||
| 80 | 10 | 6.35 | C7,C5,C3 | R | 1 | 08010 | l,U | ||
| 20 | 9.525 | C7,C5,C3 | R | 1 | 08020 | U | |||
Precision grinding screw standard size specification comparison table
| Model | Lead accuracy class | Thread direction | threaded number |
Standard screw code |
Applicable nut types |
||
|
Outer diameter d |
Lead 1 |
Bead diameter Da | L/R | ||||
| 4 | 1 | 0.8 | C7,C5,C3 | R | 1 | 00401 | M |
| 6 | 1 | 0.8 | C7,C5,C3 | R | 1 | 00601 | M |
| 8 | 1 | 0.8 | C7,C5,C3 | R/L | 1 | 00801 | M |
| 2 | 1.2 | C7,C5,C3 | R/L | 1 | 00802 | M | |
| 2.5 | 1.2 | C7,C5,C3 | R | 1 | 0082.5 | M,T | |
| 10 | 2 | 1.2 | C7,C5,C3 | R/L | 1 | 01002 | M,T |
| 4 | 2 | C7,C5,C3 | R | 1 | 01004 | M,T | |
| 12 | 2 | 1.2 | C7,C5,C3 | R/L | 1 | 01202 | M |
| 4 | 2.5 | C7,C5,C3 | R | 1 | 01204 | U,T | |
| 5 | 2.5 | C7,C5,C3 | R | 1 | 01205-A | U,T,S | |
| 5 | 2.5 | C7,C5,C3 | R | 1 | 01205-B | M | |
| 10 | 2.5 | C7,C5,C3 | R | 2 | 01210-B | VS | |
| 14 | 2 | 1.2 | C7,C5,C3 | R/L | 1 | 01402 | M |
| 4 | 2.5 | C7,C5,C3 | R | 1 | 01404 | T | |
| 16 | 2 | 1.2 | C7,C5,C3 | R/L | 1 | 01602 | M |
| 4 | 2.381 | C7,C5,C3 | R | 1 | 01604 (N) | l,U,T | |
| 5 | 3.175 | C7,C5,C3 | R/L | 1 | 01605 | l,U,T | |
| 10 | 3.175 | C7,C5,C3 | R/L | 2 | 01610 | l,U,T | |
| 16 | 2.778 | C7,C5,C3 | R | 2 | 01616 | E | |
| 32 | 2.778 | C7,C5,C3 | R | 2 | 01632 | E | |
| 20 | 4 | 2.381 | C7,C5,C3 | R | 1 | 02004 (N) | l,U |
| 5 | 3.175 | C7,C5,C3 | R/L | 1 | 02005 | l,U,T,S | |
| 10 | 3.969 | C7,C5,C3 | R | 1 | 02010 | VS | |
| 20 | 3.175 | C7,C5,C3 | R | 2 | 02020 | VS,E,S | |
| 40 | 3.175 | C7,C5,C3 | R | 2 | 02040 | E | |
| 25 | 4 | 2.381 | C7,C5,C3 | R | 1 | 02504 (N) | l,U |
| 5 | 3.175 | C7,C5,C3 | R/L | 1 | 02505 | l,U,T,S | |
| 6 | 3.969 | C7,C5,C3 | R | 1 | 02506 | U | |
| 8 | 4.762 | C7,C5,C3 | R | 1 | 02508 | U | |
| 10 | 4.762 | C7,C5,C3 | R | 1 | 02510-A | l,U,T | |
| 25 | 3.969 | C7,C5,C3 | R | 2 | 02525 | E | |
| 50 | 3.969 | C7,C5,C3 | R | 2 | 02550 | E | |
| 32 | 4 | 2.381 | C7,C5,C3 | R | 1 | 03204 (N) | l,U |
| 5 | 3.175 | C7,C5,C3 | R/L | 1 | 03205 | l,U,S | |
| 6 | 3.969 | C7,C5,C3 | R | 1 | 03206 | U | |
| 8 | 4.762 | C7,C5,C3 | R | 1 | 03208 | U | |
| 10 | 6.35 | C7,C5,C3 | R/L | 1 | 03210 | l,U | |
| 20 | 6.35 | C7,C5,C3 | R | 1 | 03220 | E | |
| 32 | 4.762 | C7,C5,C3 | R | 2 | 03232 | E | |
| 64 | 4.762 | C7,C5,C3 | R | 2 | 03264 | E | |
3.Our Company
Jiangsu Zane Machinery Technology Co., Ltd. is a high-tech mechanical transmission products of high-tech enterprises. The company has 4 branches respectively manage different types of mechanical transmission products research and marketing projects. It has nearly 50 independent intellectual property rights. Is Taiwan YYC rack level agents, is Taiwan Heqing (HAWKKING) linear guide rail, ball screw ,Ball screw support seat,linear guide module research and development pioneers. ZANE module by the majority of customers love and trust. "Knowing kindness and being grateful moisten one's life" is the eternal source of growth for Zayn people.
