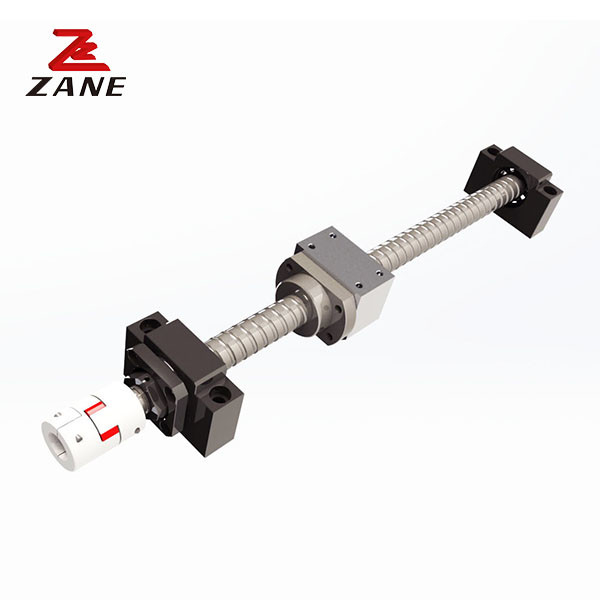

CNC 10cm Miniature Precision Ball Screws Groove Profiles

CNC 10cm Miniature Precision Ball Screws Groove Profiles

CNC 10cm Miniature Precision Ball Screws Groove Profiles

Place of Origin	China
Brand Name	ZANE
Certification	CE，ISO
Model Number	SFSTYPE

Product Details

Product Name:

Ballscrew

Structure:

Ball Screw+Nut+Steel Ball

Manufacturing Process:

Rolled Thread Ball Screw

Length:

100mm To 6000mm

Thread Direction:

R/L

Application:

Automatic Machinery

Highlight:

CNC precision ball screws

,

groove profiles precision ball screws

,

10cm miniature ball screw

Product Description

CNC Precision Rolled/Ground Mini/Miniature Thread Ball Screw SFSTYPE

High Rigidity and Preload

When axial play is minimized in conventional screw-nut assemblies, the actuating torque becomes excessive and the operation is not smooth. The axial play in TBI MOTION or ERSK precision ball screws may be reduced to zero by preloading and a light smooth operation is still possible. herefore, both low torque and high rigidity can be obtained simultaneously.TBI MOTION or ERSK ball screws have gothic arch groove profiles which allow these conditions to be achieved.

CNC 10cm Miniature Precision Ball Screws Groove Profiles 0

Model	Outer diameter	lead	Steel ball diameter	nut size									Bead laps	Dynamic rated load	Static rated load	rigid kgf/µm
Model	d	I	Da	D	A	B	L	W	H	X		Q	n	Ca	Coa	k
01205-B1	12	5	2.5	24	40	10	31	32	30	4	5	-	2.8X1	661	1316	19
01210-B1	12	10	2.5	24	40	10	48.5	32	30	4	5	-	2.8X1	642	1287	19
01605-C1	15	5	2. 778	28	48	10	38	38	40	5	5	M6	3.8X1	1112	2507	30
01610-B1		10	2. 778	28	48	10	47	38	40	5	5	M6	2.8X1	839	1821	23
01616-A1		16	2. 778	28	48	10	45	38	40	5	5	M6	1.8X1	552	1137	14
01616-B1		16	2. 778	28	48	10	61	38	40	5	5	M6	2.8X1	808	1769	22
01620-A1		20	2. 778	28	48	10	57	38	40	5	5	M6	1.8X1	554	1170	14
02005-C1	20	5	3. 175	36	58	10	40	47	44	6	6	M6	3.8X1	1484	3681	37
02006-D1		6	3. 175	36	58	10	50	47	44	6	6	M6	4.8X1	1811	4644	47
02008-D1		8	3. 175	36	58	10	60	47	44	6	6	M6	4.8X1	1863	4861	50
02010-C1		10	3. 175	36	58	10	60	47	44	6	6	M6	3.8X1	1516	3833	40
02020-A1		20	3. 175	36	58	10	57	47	44	6	6	M6	1.8X1	764	1758	19
02020-B1		20	3. 175	36	58	10	77	47	44	6	6	M6	2.8X1	1118	2734	29
02505-C1	25	5	3.175	40	62	10	40	51	48	6	6	M6	3.8X1	1650	4658	43
02506-D1		6	3.175	40	62	10	50	51	48	6	6	M6	4.8X1	2015	5879	55
02508-D1		8	3.175	40	62	10	60	51	48	6	6	M6	4.8X1	2009	5867	56
02510-C1		10	3.175	40	62	12	62	51	48	6	6	M6	3.8X1	1638	4633	45
02520-C1		20	3. 969	40	62	12	80	51	48	6	6	M6	2.8X1	1430	2803	35
02525-A1		25	3.175	40	62	12	70	51	48	6	6	M6	1.8X1	843	2199	22
02525-B1		25	3.175	40	62	12	95	51	48	6	6	M6	2.8X1	1232	3421	34
02505-C1	32	5	3. 175	50	80	12	42	65	62	9		M6	3.8X1	1839	6026	51
03206-D1	32	6	3. 175	50	80	12	51	65	62	9		M6	4.8X1	2247	7608	65

Model	Outer diameter	lead	Steel ball diameter	nut size								Bead laps	Dynamic rated load	Static rated load	rigid kgf/µm
Model	d	I	Da	D	A	B	L	W	H	X	Q	n	Ca	Coa	k
03208-D1	31	8	3.969	50	80	12	62	65	62	9	M6	4.8X1	3015	9181	68
03210-C1		10	3. 969	50	80	13	62	65	62	9	M6	3.8X1	2460	7255	55
03220-B1		20	3. 969	50	80	12	80	65	62	9	M6	2.8X1	1907	5482	43
03232-A1		32	3. 969	50	80	13	84	65	62	9	M6	1.8X1	1257	3426	27
03232-B1		32	3. 969	50	80	13	116	65	62	9	M6	2.8X1	1838	5329	42
04005-C1	40	5	3.175	63	93	15	45	78	70	9	M8	3.8X1	2018	7589	60
04006-D1	40	6	3.175	63	93	14	50	78	70	9	M6	4.8X1	2467	9583	77
04008-D1	38	8	3. 969	63	93	14	61	78	70	9	M6	4.8X1	3327	11491	81
04010-C1		10	6. 350	63	93	14	63	78	70	9	M8	3.8X1	5035	13943	67
04020-B1		20	6. 350	63	93	14	82	78	70	9	M8	2.8X1	3959	10715	54
04040-A1		40	6. 350	63	93	15	105	78	70	9	M8	1.8X1	2585	6648	34
04040-B1		40	6. 350	63	93	15	145	78	70	9	M8	2.8X1	3780	10341	52
05005-C1	50	5	3.175	75	110	15	45	93	85	11	M8	3.8X1	2207	9542	68
05010-C1	48	10	6. 350	75	110	18	68	93	85	11	M8	3.8X1	5638	17852	79
05012-C1		12	6. 350	75	110	18	75	93	85	11	M8	3.8X1	5632	17836	81
05020-C1		20	6. 350	75	110	18	108	93	85	11	M8	3.8X1	5749	18485	87
05050-A1		50	6. 350	75	110	18	125	93	85	11	M8	1.8X1	2946	8749	42
05050-B1		50	6. 350	75	110	18	175	93	85	11	M8	2.8X1	4308	13610	65
06310-C1	61	10	6. 350	90	125	18	70	108	95	11	M8	3.8X1	6343	23308	94
06316-C1		16	6. 350	90	125	18	95	108	95	11	M8	3.8X1	6327	23262	100
06320-C1		20	7.144	95	135	20	116	115	100	13.5	M8	3.8X1	7493	26424	105
00810-C1	77	10	6. 350	105	145	20	70	125	110	13.5	M8	3.8X1	6980	29563	105
00820-C1	77	20	9. 525	125	165	25	120	145	130	13.5	M8	3.8X1	12145	43598	128
10020-C1	96	20	12.7	150	202	30	124	176	155	17.5	M8	3.8X1	19633	70408	152
