| Place of Origin | China |
| Brand Name | ZANE |
| Certification | CE，ISO |
| Model Number | AFSTYPE |

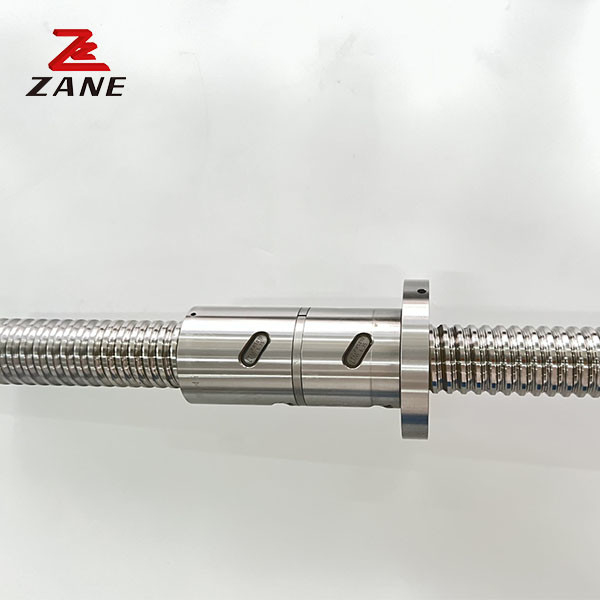

AFSTYPE Rolled Ball Screw for Fast Speed Guide Rail
Application
Ball screw are used in aircraft and missiles to moving control surfaces, especially for electric fly by wire and
in automobile power steering to translate rotary motion from an electric motor to axial motion of the steering rack .
Ball screw also used in machine tools, robots and precision assembly equipment .High precision ball screw are
used in steppers for semiconductors manufacturing.
1)3D printers, stepper motor etc.
2)Industrial machinery Printing, paper-processing, automatic machines, textiles, etc.
3)Electronic machinery Robot, measuring instruments, medical equipment, X-Y table,
factory automation equipment, etc.
4)Transport machinery Material handling equipment, nuclear reactor-actuator, etc.
5)Aircraft applications: aircraft flaps, actuators, airport loading equipment, etc.
| Model | Outer diameter | lead | Steel ball diameter | nut size | Bead laps | Dynamic rated load | Static rated load |
rigid kgf/ µm |
||||||||
| d | I | Da | D | A | B | L | W | X | Y | Z | Q | n | Ca | Coa | k | |
| 01604-T4 | 16 | 4 | 2. 381 | 28 | 52 | 10 | 40 | 38 | 5.8 | 10 | 6 | M6 | 4x1 | 629 | 1270 | 1270 |
| 01605-T4 | 5 | 3. 175 | 50 | 780 | 1790 | 1790 | ||||||||||
| 02004-T3 | 20 | 4 | 2. 381 | 36 | 62 | 11 | 42 | 48 | 5.8 | 10 | 6 | M6 | 4x1 | 699 | 1617 | 1617 |
| 02005-T4 | 5 | 3.175 | 51 | 1130 | 2380 | 2380 | ||||||||||
| 02504-T4 | 25 | 4 | 2. 381 | 40 | 66 | 11 | 42 | 53 | 5.8 | 10 | 6 | M6 | 4x1 | 777 | 22052 | 22052 |
| 02505-T4 | 5 | 3. 175 | 51 | 1280 | 3110 | 3110 | ||||||||||
| 03204-T4 | 32 | 4 | 2. 381 | 50 | 76 | 11 | 44 | 63 | 5.8 | 10 | 6 | M6 | 4x1 | 871 | 2661 | 2661 |
| 03205-T4 | 5 | 3.175 | 50 | 82 | 13 | 52 | 67 | 7 | 12 | 7 | 1450 | 4150 | 4150 | |||
| 03210-T4 | 10 | 6. 350 | 53 | 90 | 15 | 90 | 71 | 9 | 15 | 9 | 4x1 | 3390 | 7170 | 7170 | ||
| 04005-T4 | 40 | 5 | 3. 175 | 60 | 94 | 15 | 55 | 75 | 9 | 15 | 9 | M8 | 4x1 | 1610 | 5330 | 5330 |
| 04010-T4 | 10 | 6. 350 | 63 | 108 | 18 | 93 | 85 | 11 | 18 | 11 | 4x1 | 3910 | 9520 | 9520 | ||
| 05005-T4 | 50 | 5 | 3.175 | 71 | 110 | 15 | 47 | 90 | 9 | 15 | 9 | M8 | 4x1 | 1450 | 5717 | 5717 |
| 05010-T4 | 10 | 6. 350 | 75 | 118 | 15 | 93 | 95 | 11 | 18 | 11 | M8 | 4x1 | 4450 | 12500 | 12500 | |
| 05020-T4 | 20 | 7. 144 | 90 | 138 | 28 | 138 | 112 | 13.5 | 22 | 13 | M8 | 4x1 | 4644 | 14307 | 14307 | |
| 06310-T4 | 63 | 10 | 6. 350 | 90 | 138 | 22 | 98 | 112 | 13.5 | 22 | 13 | M8 | 4x1 | 5070 | 16600 | 16600 |
| 06320-T4 | 20 | 9. 525 | 95 | 148 | 28 | 149 | 118 | 13.5 | 22 | 13 | 4x1 | 7573 | 23860 | 23860 | ||
| 08010-T4 | 80 | 10 | 6. 350 | 105 | 156 | 22 | 98 | 130 | 13.5 | 22 | 13 | M8 | 4x1 | 5620 | 21300 | 21300 |
| 08020-T4 | 20 | 9. 525 | 118 | 168 | 28 | 154 | 140 | 13.5 | 22 | 13 | 4x1 | 8485 | 30895 | 30895 | ||
| 10020-T4 | 100 | 20 | 9. 525 | 140 | 204 | 28 | 180 | 170 | 17.5 | 28 | 17 | M10 | 4x1 | 9420 | 39183 | 39183 |
