High Smoothness Rolled Ball Screw
  • High Smoothness Rolled Ball Screw
High Smoothness Rolled Ball Screw

High Smoothness Rolled Ball Screw

Place of Origin China
Brand Name ZANE
Certification CE，ISO
Model Number SFSTYPE
Product Details
Product Name:
Ballscrew
Structure:
Ball Screw+Nut+Steel Ball
Process Type:
Rolled Thread Ball Screw
Ball Screw Dia:
25mm
Movement Method:
Linear Control
Shaft Root Dia:
3.3mm
Highlight:

Linear Control Rolled Ball Screw

,

high smoothness Rolled Ball Screw

,

3.3mm miniature lead screw

Product Description

High CNC Machinery Precision Rolled Miniature Thread Ball Screw Set SFSTYPE



Precision ball screws have high smoothness and precise positioning, and at the same time have low torque, high rigidity, ultra-quiet and predictable long life characteristics.

The remanufactured ball screw has the advantages of high smoothness, long life and low price, and is generally used when the precision is not required.

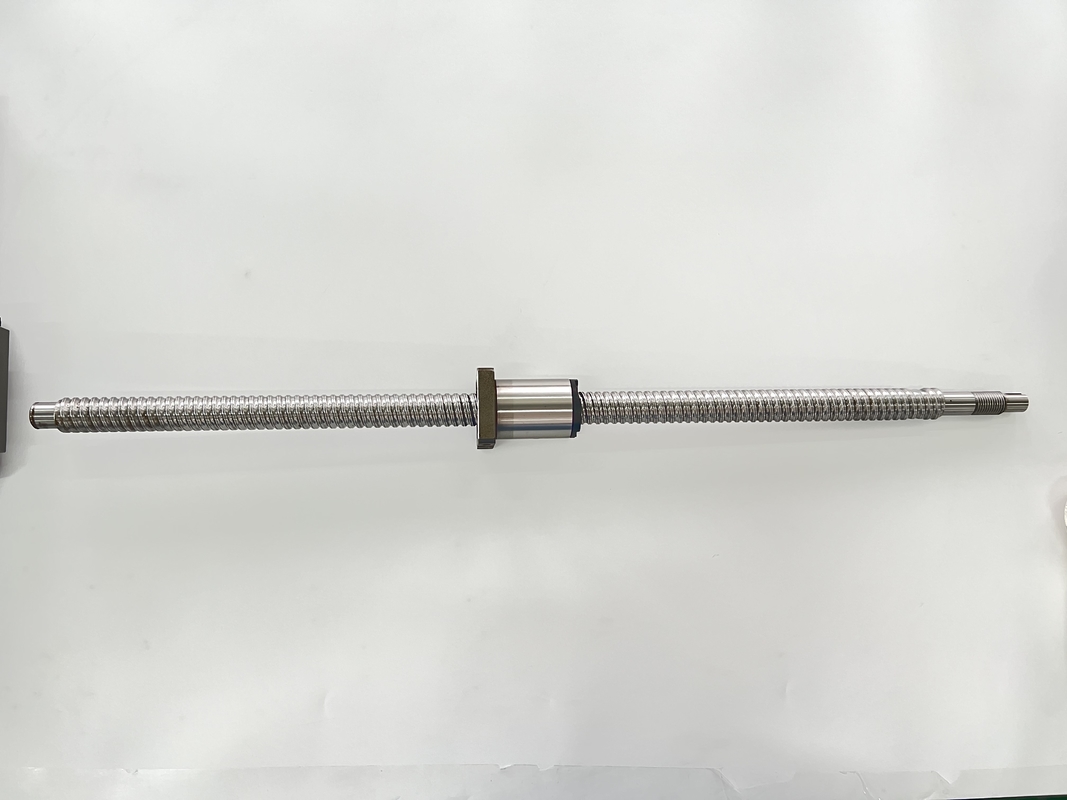

High Smoothness Rolled Ball Screw 0



Model Outer diameter lead Steel ball diameter nut size Bead laps Dynamic rated load Static rated load

rigid

kgf/µm
d I Da D A B L W H X Q n Ca Coa k
01205-B1 12 5 2.5 24 40 10 31 32 30 4 5 - 2.8X1 661 1316 19
01210-B1 10 2.5 24 40 10 48.5 32 30 4 5 - 2.8X1 642 1287 19
01605-C1 15 5 2. 778 28 48 10 38 38 40 5 5 M6 3.8X1 1112 2507 30
01610-B1 10 2. 778 28 48 10 47 38 40 5 5 M6 2.8X1 839 1821 23
01616-A1 16 2. 778 28 48 10 45 38 40 5 5 M6 1.8X1 552 1137 14
01616-B1 16 2. 778 28 48 10 61 38 40 5 5 M6 2.8X1 808 1769 22
01620-A1 20 2. 778 28 48 10 57 38 40 5 5 M6 1.8X1 554 1170 14
02005-C1 20 5 3. 175 36 58 10 40 47 44 6 6 M6 3.8X1 1484 3681 37
02006-D1 6 3. 175 36 58 10 50 47 44 6 6 M6 4.8X1 1811 4644 47
02008-D1 8 3. 175 36 58 10 60 47 44 6 6 M6 4.8X1 1863 4861 50
02010-C1 10 3. 175 36 58 10 60 47 44 6 6 M6 3.8X1 1516 3833 40
02020-A1 20 3. 175 36 58 10 57 47 44 6 6 M6 1.8X1 764 1758 19
02020-B1 20 3. 175 36 58 10 77 47 44 6 6 M6 2.8X1 1118 2734 29
02505-C1 25 5 3.175 40 62 10 40 51 48 6 6 M6 3.8X1 1650 4658 43
02506-D1 6 3.175 40 62 10 50 51 48 6 6 M6 4.8X1 2015 5879 55
02508-D1 8 3.175 40 62 10 60 51 48 6 6 M6 4.8X1 2009 5867 56
02510-C1 10 3.175 40 62 12 62 51 48 6 6 M6 3.8X1 1638 4633 45
02520-C1 20 3. 969 40 62 12 80 51 48 6 6 M6 2.8X1 1430 2803 35
02525-A1 25 3.175 40 62 12 70 51 48 6 6 M6 1.8X1 843 2199 22
02525-B1 25 3.175 40 62 12 95 51 48 6 6 M6 2.8X1 1232 3421 34
02505-C1 32 5 3. 175 50 80 12 42 65 62 9 M6 3.8X1 1839 6026 51
03206-D1 6 3. 175 50 80 12 51 65 62 9 M6 4.8X1 2247 7608 65




Model Outer diameter lead Steel ball diameter nut size Bead laps Dynamic rated load Static rated load

rigid

kgf/µm
d I Da D A B L W H X Q n Ca Coa k
03208-D1 31 8 3.969 50 80 12 62 65 62 9 M6 4.8X1 3015 9181 68
03210-C1 10 3. 969 50 80 13 62 65 62 9 M6 3.8X1 2460 7255 55
03220-B1 20 3. 969 50 80 12 80 65 62 9 M6 2.8X1 1907 5482 43
03232-A1 32 3. 969 50 80 13 84 65 62 9 M6 1.8X1 1257 3426 27
03232-B1 32 3. 969 50 80 13 116 65 62 9 M6 2.8X1 1838 5329 42
04005-C1 40 5 3.175 63 93 15 45 78 70 9 M8 3.8X1 2018 7589 60
04006-D1 6 3.175 63 93 14 50 78 70 9 M6 4.8X1 2467 9583 77
04008-D1 38 8 3. 969 63 93 14 61 78 70 9 M6 4.8X1 3327 11491 81
04010-C1 10 6. 350 63 93 14 63 78 70 9 M8 3.8X1 5035 13943 67
04020-B1 20 6. 350 63 93 14 82 78 70 9 M8 2.8X1 3959 10715 54
04040-A1 40 6. 350 63 93 15 105 78 70 9 M8 1.8X1 2585 6648 34
04040-B1 40 6. 350 63 93 15 145 78 70 9 M8 2.8X1 3780 10341 52
05005-C1 50 5 3.175 75 110 15 45 93 85 11 M8 3.8X1 2207 9542 68
05010-C1 48 10 6. 350 75 110 18 68 93 85 11 M8 3.8X1 5638 17852 79
05012-C1 12 6. 350 75 110 18 75 93 85 11 M8 3.8X1 5632 17836 81
05020-C1 20 6. 350 75 110 18 108 93 85 11 M8 3.8X1 5749 18485 87
05050-A1 50 6. 350 75 110 18 125 93 85 11 M8 1.8X1 2946 8749 42
05050-B1 50 6. 350 75 110 18 175 93 85 11 M8 2.8X1 4308 13610 65
06310-C1 61 10 6. 350 90 125 18 70 108 95 11 M8 3.8X1 6343 23308 94
06316-C1 16 6. 350 90 125 18 95 108 95 11 M8 3.8X1 6327 23262 100
06320-C1 20 7.144 95 135 20 116 115 100 13.5 M8 3.8X1 7493 26424 105
00810-C1 77 10 6. 350 105 145 20 70 125 110 13.5 M8 3.8X1 6980 29563 105
00820-C1 20 9. 525 125 165 25 120 145 130 13.5 M8 3.8X1 12145 43598 128
10020-C1 96 20 12.7 150 202 30 124 176 155 17.5 M8 3.8X1 19633 70408 152
