Rolled Ball Screw
>
|
|
| Place of Origin | China |
| Brand Name | ZANE |
| Certification | CE，ISO |
| Model Number | TRSTYPE |

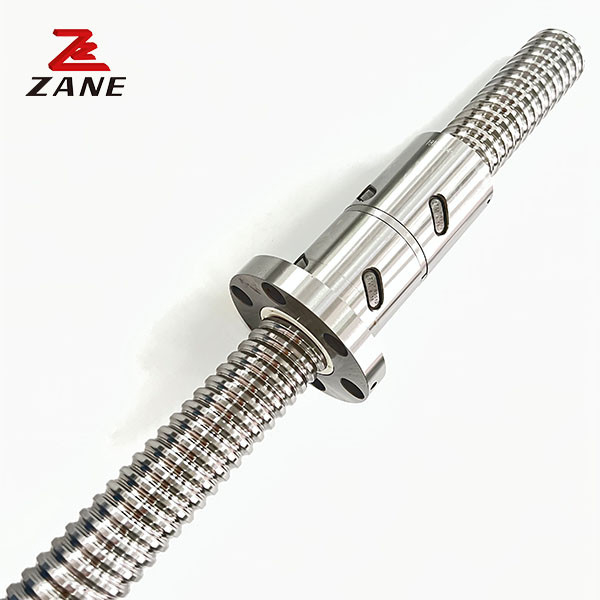

600mm 50mm 50 mm 2020mm 1500mm 12mm Ball Stud Screw TRSTYPE
The rapid development of high-tech diverse machinery and an increased demand for accuracy and speed has driven ball screws development throughout the industry.
Ball screw technology is indispensable as mechanical means of converting the rotary motion of a control motor into linear motion.
From precision and rolled ball screws to super high lead ball screws (designed to meet your need for high speed operation).
| Model | Outer diameter | lead | Steel ball diameter | nut size | Bead laps | Dynamic rated load | Static rated load |
rigid kgf/ µm |
|||||||
| d | I | Da | D(g6) | A | B | L | LI | N | L2 | Q | n | Ca | Coa | k | |
| 0082. 5-B1 | 8 | 2.5 | 1.2 | 17.5 | M15xlP | 7.5 | 23.5 | 10 | 3 | - | - | 2. 5x1 | 189 | 381 | 11 |
| 01002-C1 | 10 | 2 | 1.2 | 19.5 | M17xlP | 7.5 | 22 | 3 | 3.2 | - | - | 3. 5x1 | 277 | 664 | 17 |
| 01004-B1 | 4 | 2 | 25 | M20xlP | 10 | 34 | 3 | 3 | - | - | 2. 5x1 | 400 | 754 | 14 | |
| 01204-C1 | 12 | 4 | 2.5 | 25.5 | M20xlP | 10 | 34 | 13 | 3 | - | - | 3.5x1 | 804 | 1649 | 23 |
| 01205-C1 | 5 | 2.5 | 25.5 | M20xlP | 10 | 39 | 16. 25 | 3 | - | - | 3. 5x1 | 801 | 1644 | 24 | |
| 01404-C1 | 14 | 4 | 2. 381 | 32.1 | M25xl. 5P | 10 | 35 | 13 | 3 | - | 3. 5x1 | 804 | 1803 | 26 | |
| 01604-T3 | 16 | 4 | 2. 381 | 29 | M22xl. 5P | 8 | 32 | 4 | 3.2 | - | - | 1x3 | 759 | 1804 | 24 |
| 01605-T3 | 5 | 3.175 | 32.5 | M26xl. 5P | 12 | 42 | 19. 25 | 3 | - | - | 1x3 | 1077 | 2289 | 25 | |
| 02005-T3 | 20 | 5 | 3.175 | 38 | M35xl. 5P | 15 | 45 | 20.3 | 3 | - | - | 1x3 | 1211 | 2906 | 30 |
| 02505-T3 | 25 | 5 | 3. 175 | 43 | M40xl. 5P | 19 | 69 | 32.11 | 3 | 8 | M6 | 1x4 | 1724 | 4904 | 37 |
