Rolled Ball Screw
>
|
|
| Place of Origin | China |
| Brand Name | ZANE |
| Certification | CE，ISO |
| Model Number | AFSTYPE |

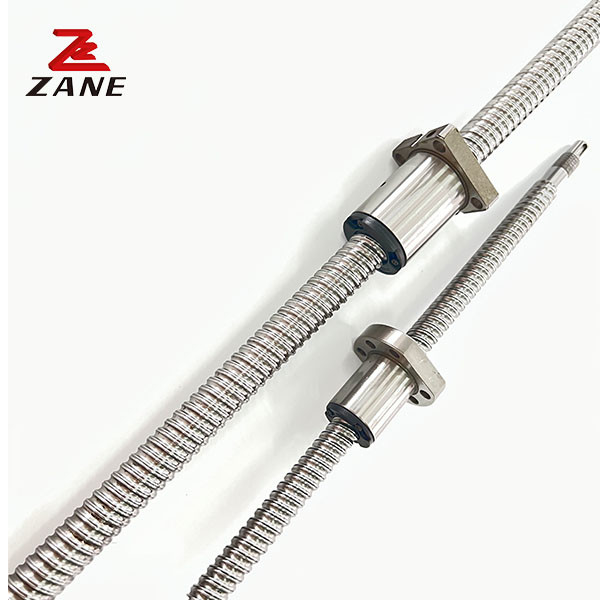

AFSTYPE Head Stainless Steel Ball Roller Plunger Ball Pressure Screws
Lubrication
In order to prevent rusting,GSR series (cold rolled ball screw and precision ball screw) and BBS series stainless steel cold rolled ball screw products that are not processed on the shaft end are coated with anti-rust oil. Since anti show oil does not have lubricity, please apply lubricant separately before use.
Shaft End Shape
The shaft end shape of GSR series (cold rolled ball screw,precision ball screw) is standardized.
Fast Delivery Time
The GSR series which has not been processed at the shaft end has been standardized, and has been kept delivered in time all the year round. Screw rod and nut can be ordered separately.
| Model | Outer diameter | lead | Steel ball diameter | nut size | Bead laps | Dynamic rated load | Static rated load |
rigid kgf/ µm |
||||||||
| d | I | Da | D | A | B | L | W | X | Y | Z | Q | n | Ca | Coa | k | |
| 01604-T4 | 16 | 4 | 2. 381 | 28 | 52 | 10 | 40 | 38 | 5.8 | 10 | 6 | M6 | 4x1 | 629 | 1270 | 1270 |
| 01605-T4 | 5 | 3. 175 | 50 | 780 | 1790 | 1790 | ||||||||||
| 02004-T3 | 20 | 4 | 2. 381 | 36 | 62 | 11 | 42 | 48 | 5.8 | 10 | 6 | M6 | 4x1 | 699 | 1617 | 1617 |
| 02005-T4 | 5 | 3.175 | 51 | 1130 | 2380 | 2380 | ||||||||||
| 02504-T4 | 25 | 4 | 2. 381 | 40 | 66 | 11 | 42 | 53 | 5.8 | 10 | 6 | M6 | 4x1 | 777 | 22052 | 22052 |
| 02505-T4 | 5 | 3. 175 | 51 | 1280 | 3110 | 3110 | ||||||||||
| 03204-T4 | 32 | 4 | 2. 381 | 50 | 76 | 11 | 44 | 63 | 5.8 | 10 | 6 | M6 | 4x1 | 871 | 2661 | 2661 |
| 03205-T4 | 5 | 3.175 | 50 | 82 | 13 | 52 | 67 | 7 | 12 | 7 | 1450 | 4150 | 4150 | |||
| 03210-T4 | 10 | 6. 350 | 53 | 90 | 15 | 90 | 71 | 9 | 15 | 9 | 4x1 | 3390 | 7170 | 7170 | ||
| 04005-T4 | 40 | 5 | 3. 175 | 60 | 94 | 15 | 55 | 75 | 9 | 15 | 9 | M8 | 4x1 | 1610 | 5330 | 5330 |
| 04010-T4 | 10 | 6. 350 | 63 | 108 | 18 | 93 | 85 | 11 | 18 | 11 | 4x1 | 3910 | 9520 | 9520 | ||
| 05005-T4 | 50 | 5 | 3.175 | 71 | 110 | 15 | 47 | 90 | 9 | 15 | 9 | M8 | 4x1 | 1450 | 5717 | 5717 |
| 05010-T4 | 10 | 6. 350 | 75 | 118 | 15 | 93 | 95 | 11 | 18 | 11 | M8 | 4x1 | 4450 | 12500 | 12500 | |
| 05020-T4 | 20 | 7. 144 | 90 | 138 | 28 | 138 | 112 | 13.5 | 22 | 13 | M8 | 4x1 | 4644 | 14307 | 14307 | |
| 06310-T4 | 63 | 10 | 6. 350 | 90 | 138 | 22 | 98 | 112 | 13.5 | 22 | 13 | M8 | 4x1 | 5070 | 16600 | 16600 |
| 06320-T4 | 20 | 9. 525 | 95 | 148 | 28 | 149 | 118 | 13.5 | 22 | 13 | 4x1 | 7573 | 23860 | 23860 | ||
| 08010-T4 | 80 | 10 | 6. 350 | 105 | 156 | 22 | 98 | 130 | 13.5 | 22 | 13 | M8 | 4x1 | 5620 | 21300 | 21300 |
| 08020-T4 | 20 | 9. 525 | 118 | 168 | 28 | 154 | 140 | 13.5 | 22 | 13 | 4x1 | 8485 | 30895 | 30895 | ||
| 10020-T4 | 100 | 20 | 9. 525 | 140 | 204 | 28 | 180 | 170 | 17.5 | 28 | 17 | M10 | 4x1 | 9420 | 39183 | 39183 |
